SPM-002-XH
Description

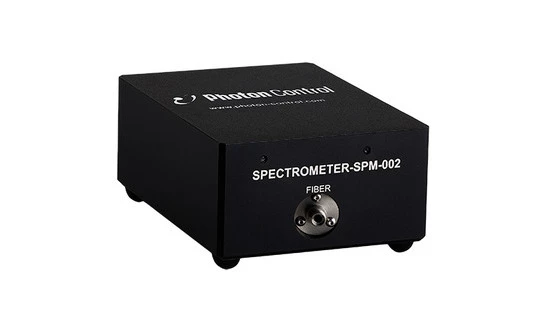

The Photon Control SPM-002-XH family of spectrometers cover the ultraviolet, visible, and near-infrared regions from 190 nm to 1090 nm. The high speed optical bench operates a linear charge-couple device (CCD) detector with an electronic shutter for exposures down to 10 µsec and a powerful digital signal processor.The spectrometer includes a fiber-optic patchcord, a power supply, a USB cable, and operating software.
SPM-002-XH
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 70 mm |
| Diffraction Grating: | - lines/mm |
| Grating Blaze Wavelength: | - nm |
| Spectral Range: | 190-1100nm |
| Linear Dispersion (Avg): | - nm/mm |
| Spectral Resolution (Avg): | - nm |
| Range: | 190 - 1100 nm |
| Detector Size: | 3648 Pixel Array |
| ADC: | 12 Bit |
| Connection: | USB 2.0 |
Features
The SPM-002-XH is fully compatible with the SPL family of light sources, accessories, software development kits, and SpecSoft Pro from Photon Control.
Applications
N.B. Some applications require additional software that is not included with the SPM-002-XH.
Color monitoring
Biophotonics
Transmission
Laser/ Light Source Monitoring
Absorption
Fluorescence
Molar Concentration
Optical Inspection
Chemical Analysis
Reflection
Scattering
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The SPM-002-XH spectrometer can be used for color monitoring, biophotonics, transmission, laser/light source monitoring, absorption, fluorescence, molar concentration, optical inspection, chemical analysis, reflection, and scattering.
The SPM-002-XH spectrometer uses a linear charge-couple device (CCD) detector with an electronic shutter for exposures down to 10 µsec.
The SPM-002-XH spectrometer includes a fiber-optic patchcord, a power supply, a USB cable, and operating software.
The SPM-002-XH spectrometer covers the ultraviolet, visible, and near-infrared regions from 190 nm to 1090 nm.
Yes, some applications require additional software that is not included with the SPM-002-XH spectrometer.
