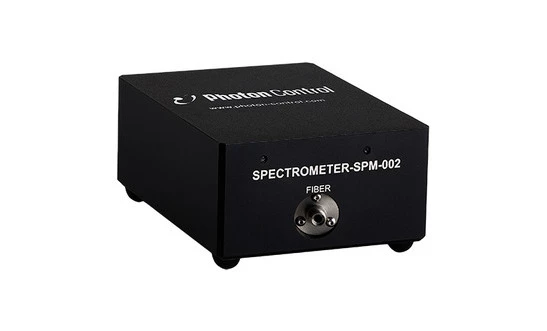

SPM-002-X Spectrometer
Description
SPM-002-X Spectrometer
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 70 mm |
| Diffraction Grating: | - lines/mm |
| Grating Blaze Wavelength: | - nm |
| Spectral Range: | 190-1100nm |
| Linear Dispersion (Avg): | - nm/mm |
| Spectral Resolution (Avg): | - nm |
| Range: | 190 - 1100 nm |
| Detector: | Toshiba TCD1304 |
| Detector Size: | 3648 Pixel Array |
| ADC: | 12 Bit |
| Connection: | USB 1.1 |
| Triggering: | Hardware Trigger |
| Maximum Refresh Rate: | 20 Hz |
| Interface: | USB 1.1 |
| Power Requirements: | 10-30 VDC |
Features
- Compact size Spectral ranges between 190 nm and 1090 nm
- Includes feature rich SpecSoft display and analysis software for data logging
- Convenient USB interface
- Compatible with the SPL family of light sources, accessories, software development kits and SpecSoft Pro from Photon Control
Applications
- Visible Spectrum/ Color Monitoring
- Biophotonics
- Transmission
- Laser/ Light Source Monitoring
- Absorption
- Fluorescence
- Molar Concentration
- Optical Inspection
- Chemical Analysis
- Reflection
- Scattering
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The SPM-002-X has a compact size, spectral ranges between 190 nm and 1090 nm, includes feature rich SpecSoft display and analysis software for data logging, has a convenient USB interface, and is compatible with the SPL family of light sources, accessories, software development kits and SpecSoft Pro from Photon Control.
Some applications for the SPM-002-X include visible spectrum/color monitoring, biophotonics, transmission, laser/light source monitoring, absorption, fluorescence, molar concentration, optical inspection, chemical analysis, reflection, and scattering.
The SPM-002-X runs on powerful user software based on LabVIEW or alternatively with your integrated software using one of our software development kits.
The SPM-002-X measures within the ultraviolet, visible, and near-infrared wavelengths.
The maximum refresh rate of the SPM-002-X is 20 Hz.
