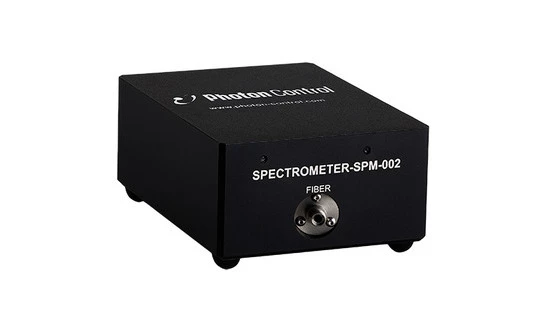

SPM-002-NIR1700
Description
The SPM-002-NIR1700 measures between the 900 nm to 1700 nm wavelength. The system runs on powerful software based on LabVIEW or it can be easily integrated into existing software using one of our software development kits.
SPM-002-NIR1700
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 70 mm |
| Diffraction Grating: | - lines/mm |
| Grating Blaze Wavelength: | - nm |
| Spectral Range: | 900-1700nm |
| Linear Dispersion (Avg): | - nm/mm |
| Spectral Resolution (Avg): | 6.5 nm |
| Range: | 900 - 1700 nm |
| Detector : | Hamamatsu G9204 |
| Detector Size: | 512 Pixel InGaAs |
| ADC: | 16 Bit |
| Connection: | USB 2.0 |
Features
The SPM-002-NIR1700 is fully compatible with the SPL family of light sources, accessories, software development kits and SpecSoft Pro from Photon Control.
Applications
N.B. Some applications require additional software that is not included with the SPM-002-NIR1700.
Process Automation Technology (PAT)
Petrochemical Analysis
Laser Characterization and Tuning
Thin Film Thickness Measurement
Moisture Measurement in Wood Fiber
Reflectance, Transmission, Absorption
Cellulose Analysis
Soil Analysis
Pharmaceutical Industry
Chemical Analysis
Alcohol Content Analysis
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The SPM-002-NIR1700 is suitable for Process Automation Technology (PAT), Petrochemical Analysis, Laser Characterization and Tuning, Thin Film Thickness Measurement, Moisture Measurement in Wood Fiber, Reflectance, Transmission, Absorption, Cellulose Analysis, Soil Analysis, Pharmaceutical Industry, Chemical Analysis, and Alcohol Content Analysis.
The SPM-002-NIR1700 has a spectral range of 900-1700 nm, a resolution of 5/8 nm, and a standard slit of 25, 50, or 100 um. It has a Hamamatsu G9204-512D InGaAs linear array detector with 512 pixels and a 16-bit A/D converter. It has a USB 2.0 interface and requires 10-30 VDC power.
The system runs on powerful software based on LabVIEW or it can be easily integrated into existing software using one of our software development kits.
All spectrometers are shipped with a fiber optic patch cord, USB cable, user manual, external power adapter and SpecSoft display and analysis software.
The SPM-002-NIR1700 measures between the 900 nm to 1700 nm wavelength.
