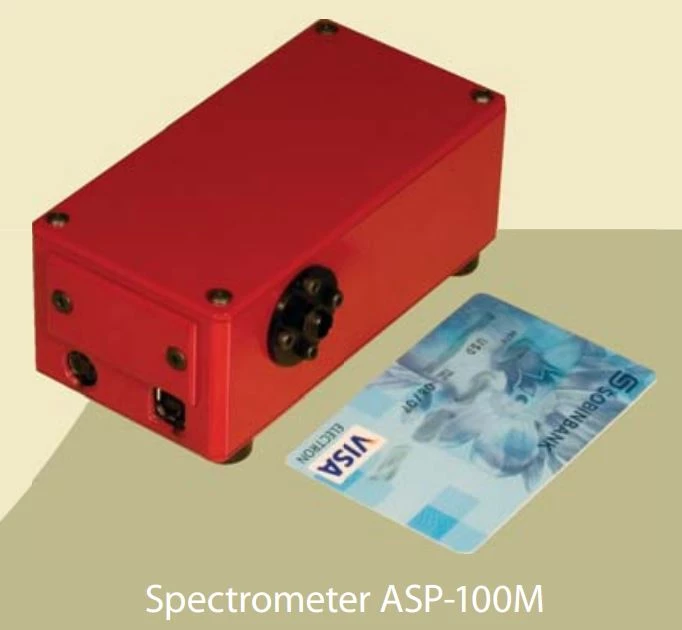

Spectrometer ASP-100M 190-800nm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
Introducing the ASP-100M Miniature Spectrometer, a compact and lightweight device designed to deliver high performance in a small package. With dimensions of just 122x60x50 mm and weighing only 300 grams, this spectrometer combines a broad spectral range with high resolution, making it an ideal choice for various space-demanding applications and OEM integrations. Despite its compact size, the ASP-100M does not compromise on quality, offering exceptional performance for precise measurements.
The simplicity of the ASP-100M's design allows for easy integration and use. The model ASP-100MF features a special fiber input with a spectral slit, tailored to the detector's specifications. This design facilitates the measurement of both free-space and fiber signals without the need for realignment, ensuring seamless operation in diverse settings. However, it is important to note that using fiber to measure the spectrum of a femtosecond laser is not recommended due to potential signal modulation and spectrum distortion.
The ASP-100M is equipped with a USB interface, eliminating the need for an additional power supply and enhancing its portability. It also includes a synchronization input/output, allowing for flexible settings selection and integration into various systems. This spectrometer is a versatile tool, capable of meeting the demands of modern diagnostic applications with ease.
Whether you are looking to integrate a spectrometer into existing equipment or require a reliable solution for compact spaces, the ASP-100M offers the perfect combination of size, performance, and ease of use. Its robust design and high-resolution capabilities make it a valuable addition to any scientific or industrial setting.
Spectrometer ASP-100M 190-800nm
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 46 mm |
| Diffraction Grating: | 1800 lines/mm |
| Grating Blaze Wavelength: | 0 nm |
| Spectral Range: | 190 – 800 nm |
| Linear Dispersion (Avg): | 5.2 nm/mm |
| Spectral Resolution (Avg): | 0.18 nm |
Features
- Compact Design: With dimensions of 122x60x50 mm and a weight of just 300 grams, the ASP-100M is perfect for space-constrained applications.
- High Resolution: Offers exceptional spectral resolution down to 0.05 nm, making it suitable for precise measurements.
- Broad Spectral Range: Covers a wide spectral range from 190 nm to 1100 nm, accommodating various applications.
- Fiber Input: The ASP-100MF model features a special fiber input with a spectral slit, allowing for easy measurement of free-space or fiber signals without realignment.
- USB Interface: Connects easily to PCs via USB, ensuring seamless data transfer and integration.
- No Additional Power Supply Needed: Operates efficiently without the need for an external power source.
- Synchronization Input/Output: Equipped with synchronization capabilities for enhanced compatibility and performance.
- Software Included: Comes with user-friendly software for easy operation and data analysis.
- OEM Integration: Designed for easy integration into other devices, expanding its versatility in various applications.
Applications
- Diagnostics: Use the ASP-100M for precise diagnostics in various fields.
- Miniature Design: The compact size of 122x60x50 mm and weight of 300 grams make it ideal for space-demanding applications.
- OEM Integration: Easily integrate the spectrometer into other devices due to its simple design.
- Fiber Input: Model ASP-100MF features a special fiber input with a spectral slit for measuring free-space or fiber signals without realignment.
- High Resolution: Achieve high spectral resolution down to 0.05 nm.
- USB Interface: Connect to a PC using the USB interface for easy data transfer.
- No Additional Power Supply: Operates without the need for an external power supply.
- Synchronization: Includes synchronization input/output for enhanced functionality.
- Software Included: Comes with software for easy setup and operation.
Frequently Asked Questions
The Spectrometer ASP-100M has 122x60x50 mm dimensions.
The Spectrometer ASP-100M weighs 300 grams.
The Spectrometer ASP-100M can cover a broad spectral range from 190-800nm.
Yes, the Spectrometer ASP-100M can be used for OEM integration in any devices.
Yes, the Spectrometer ASP-100MF features a special fiber input with a spectral slit.
