FHR 640 Spectrometer

Name: FHR 640 Spectrometer
Brand: HORIBA
Availability: InStock

Description

The new FHR 640 and FHR 1000 spectrometers offer a unique combination of drive speed, precision and high resolution, completely revolutionizing the large spectrometer market. The latest modifications in FHR technology are based on over ten years of testing by industrial and analytical systems specialists at HORIBA Jobin Yvon.

Designed for researchers who require high accuracy with immediate results, the versatility of the FHR allows for utilization over a wide spectral range, extending from the UV to the IR. The instrument’s cast body design accounts for temperature induced stress and expansion, preventing any significant wavelength shifts or signal loss and allowing for optimal performance.

Specifications

Monochromator Type:	Czerny-Turner
Effective Focal Length:	640 mm
Diffraction Grating:	1200 lines/mm
Grating Blaze Wavelength:	Not Specified
Spectral Range:	150 – 1500 nm
Linear Dispersion (Avg):	1.2 nm/mm
Spectral Resolution (Avg):	0.016 nm

Download Data Sheet

Features

The direct grating drive features a grating speed of greater than 300 nm/second, offering users significantly reduced experiment times. Equipped with a fully automated wavelength drive and automated slits, the FHR is available in multiple monochromator and spectrograph configurations, offering a dual field at the exit for array detectors and compatibility with HORIBA Jobin Yvon’s full line of accessories. Superior in design, the FHR is the ideal long focal length spectrometer for performing fast acquisitions with high quality results.

Applications

Spectrometry

Spectroscopy

Imaging

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

HORIBA

On FindLight:

since 2016

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are the benefits of the FHR spectrometer?

The FHR spectrometer offers high speed, exceptional repeatability and accuracy without compromising speed, full software control of experiments, convenience of two grating turret capability, and compatibility with HORIBA Jobin Yvon's full line of accessories.

What are the features of the FHR spectrometer?

The FHR spectrometer features a direct grating drive with a grating speed of greater than 300 nm/second, a fully automated wavelength drive, automated slits, and is available in multiple monochromator and spectrograph configurations.

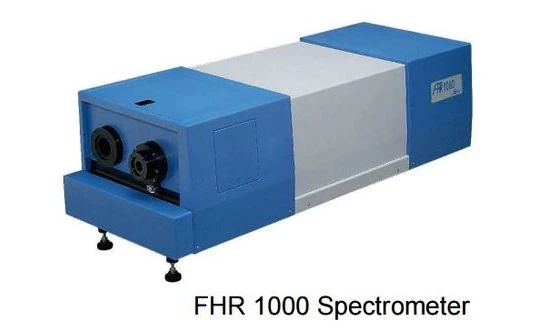

What is the FHR 640 and FHR 1000 spectrometer?

The FHR 640 and FHR 1000 spectrometers are instruments that offer a unique combination of drive speed, precision, and high resolution, completely revolutionizing the large spectrometer market.

What is the entrance aperture ratio of the FHR spectrometer?

The entrance aperture ratio of the FHR spectrometer is f/5.4 for the FHR 640 and f/9.0 for the FHR 1000 with a single grating.

What is the focal length of the FHR 640 and FHR 1000 spectrometer?

The focal length of the FHR 640 spectrometer is 640 mm and the focal length of the FHR 1000 spectrometer is 1000 mm.
