Description
The Shamrock 163 is an exceptionally compact and versatile Czerny-Turner spectrograph, setting a new standard in research-grade spectroscopy tools. With a focal length of 163 mm and a high aperture of F/3.6, this spectrograph is engineered for precision and efficiency. Its compact design makes it the ideal choice for benchtop spectroscopy, allowing for easy integration into various laboratory setups. The rugged build ensures durability, while the option for horizontal and vertical mounting positions enhances its adaptability in different working environments.
One of the standout features of the Shamrock 163 is its imaging-configurable platform, which is optimized for multi-track spectroscopy. This is achieved through lens-based accessories that minimize crosstalk and enable simultaneous acquisition of signals from multiple fiber legs. Such capabilities make the Shamrock 163 a powerful tool for complex spectroscopic analysis, providing clear and accurate results across a wide range of applications.
The Shamrock 163 also offers a broad selection of interchangeable gratings and slits, featuring a simple precision locking mechanism for seamless upgrades. This flexibility allows users to customize the spectrograph to meet specific research needs, ensuring optimal performance. Additionally, the spectrograph supports a variety of light coupling interfaces, including fiber-optics and C-mount microscope couplers, further enhancing its versatility. The calibrated micrometer drive for wavelength selection ensures rapid and precise adjustments, making the Shamrock 163 both user-friendly and efficient.
With its compact size and lightweight design, the Shamrock 163 is not only easy to handle but also portable, making it an excellent choice for both stationery and field-based research activities. Its advanced features and robust construction make it a reliable partner in scientific exploration, delivering high-quality spectroscopic data with ease.
Shamrock 163 Spectrograph - 300 lpmm 300nm Blaze
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 163 mm |
| Diffraction Grating: | 300 lines/mm |
| Grating Blaze Wavelength: | 300 nm |
| Spectral Range: | 200 – 800 nm |
| Linear Dispersion (Avg): | 19.33 nm/mm |
| Spectral Resolution (Avg): | 1.16 nm |
Features
- Compact & Rugged Design: The Shamrock 163 offers both horizontal and vertical mounting positions, ensuring portability and ease of integration.
- Imaging-Configurable Platform: Ideal for multi-track spectroscopy, this spectrograph features lens-based accessories that optimize system performance for low cross-talk and simultaneous multi-leg fibre signal acquisition.
- Interchangeable Gratings: A wide range of gratings with a simple precision locking mechanism allows for seamless upgradability.
- Variety of Fixed Slits: Includes interchangeable laser-cut precision slits with widths ranging from 10 µm to 200 μm, catering to diverse experimental needs.
- Versatile Light Coupling Interfaces: Offers a large choice of interfaces, including fibre-optics and C-mount microscope couplers.
- Calibrated Micrometer Drive: Facilitates simple and rapid wavelength adjustment for precise measurements.
- High Resolution: Achieves resolutions of 0.25 nm with 1200 l/mm @ 500 nm and 0.12 nm with 2400 l/mm @ 300 nm using the Newton DU940 CCD.
- Compact Size: With dimensions of 198 x 216 x 96 mm (7.8 x 8.5 x 3.8 in) and a weight of 3.5 kg (7.71 lb), it is the most compact research-grade Czerny-Turner spectrograph available.

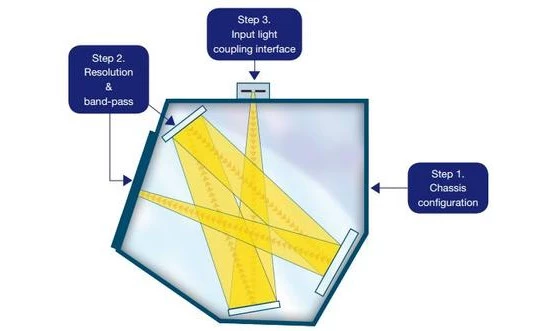

- Customizable System Configuration: Offers step-by-step customization with options for chassis configuration, resolution & band-pass, and input light coupling interface.
Applications
- General Benchtop Spectroscopy: Ideal for high-resolution spectral measurements in research labs.
- Multi-Leg Fiber Signal Acquisition: Enables simultaneous monitoring of multiple signals with low crosstalk.
- Raman Spectroscopy: Suitable for precise Raman shift analyses across varying wavelengths.
- Fluorescence Spectroscopy: Optimized for fluorescence emission studies with minimal optical aberration.
- Laser Characterization: Accurate for spectral characterization of laser outputs in development and QA.
- Educational and Training Laboratories: Compact, reliable platform for teaching advanced spectroscopy techniques.
Frequently Asked Questions
The Shamrock 163 is a compact research-grade Czerny-Turner spectograph that is ideal for general benchtop spectroscopy measurements.
The Shamrock 163 has a compact and rugged design, an imaging-configurable platform, a wide range of interchangeable gratings, a variety of fixed slits, and a large choice of light coupling interfaces.
The resolution of the Shamrock 163 with Newton DU940 CCD is 1200 l/mm at 500 nm and 2400 l/mm at 300 nm.
To customize the Shamrock 163, you can select the appropriate chassis configuration, gratings, detector, input light coupling interface, and software interface.
The weight of the Shamrock 163 is 3.5 kg or 7.71 lb.
