Description

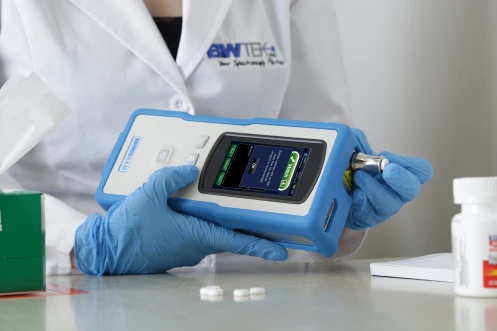

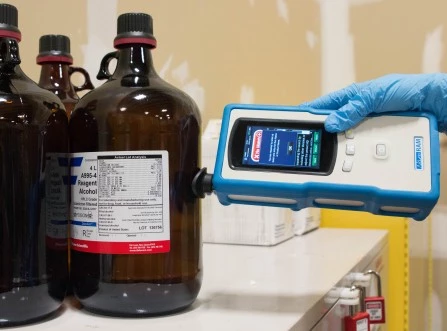

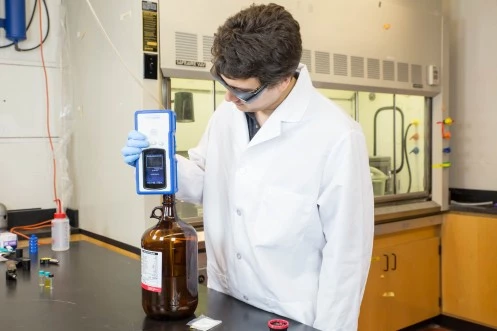

The NanoRam is a state-of-the-art handheld Raman instrument for nondestructive identification and verification of materials such as APIs, excipients, intermediates, & finished products. Compact and agile, the NanoRam can be used by non-technical users to rapidly identify samples in the lab, warehouse, loading dock or field, helping to eliminate quarantine areas and expedite materials through the manufacturing lifecycle. Utilizing Raman technology, non-contact analysis can be performed through transparent containers, all while maintaining the volume and integrity of the sample.
Intuitive Software – a user-friendly interface for both technical & non-technical users to make their job easier
Versatility – measure a variety of samples in a variety of environments and packaging with just one unit
Data Reproducibility – superior hardware ensures that results are consistent and reliable
Performance – robust multivariate algorithms guarantee accuracy when testing and identifying materials

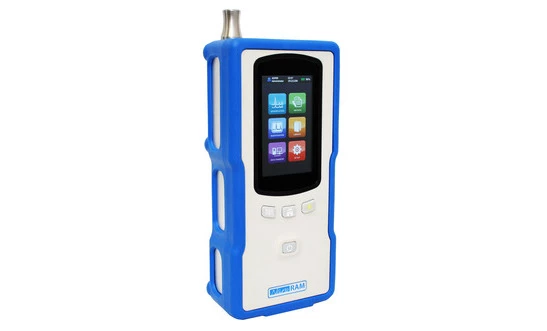

NanoRam Handheld Raman Spectrometer
Specifications
| Excitation Wavelength: | 785 nm |
|---|---|
| Raman Shift Range: | 176 – 2900 cm^-1 |
| Spectral Resolution: | 9 cm^-1 |
Features
- High-Brightness Touch Screen Display
- Embedded 1 & 2 Dimensional Barcode Scanner
- IP- 4 Dust Tight and Splash Proof Rated Housing
- Sampling Accessories for Almost Any Environment
- Batch Scanning Option for Large Volume Operation
- Intuitive Software for Technical & Non-technical Users
- Wi-Fi & Ethernet Communication for Data Sync & Management
Applications
Incoming Material Identification
Unknown Substance Investigation
At-line Sampling & Final Inspection
Nondestructive Counterfeit Detection
Frequently Asked Questions
What is the NanoRam Handheld Raman Spectrometer used for?
How reliable are the results from the NanoRam?
Can non-technical users operate the NanoRam?
Is the NanoRam compliant with regulations?
What kind of samples can be measured with the NanoRam?
