Description

1064 nm handheld Raman spectrometers are advanced portable analytical instruments designed for rapid, non-destructive chemical identification with significantly reduced fluorescence interference compared to conventional 785 nm Raman systems. By using longer wavelength 1064 nm laser excitation, these Raman analyzers can successfully identify highly fluorescent materials that are challenging for traditional Raman spectroscopy.

Portable 1064 nm Raman systems are widely used in pharmaceutical raw material verification, hazardous material identification, forensics, customs inspection, chemical analysis, and industrial QA/QC applications. Their ability to perform through-container analysis and field-based molecular identification makes them especially valuable for safety-critical and regulated environments.

Why Use 1064 nm Raman Spectroscopy?
Traditional Raman spectroscopy systems using 532 nm or 785 nm excitation may struggle with fluorescence interference when analyzing colored, organic, biological, or complex samples. 1064 nm Raman excitation dramatically reduces fluorescence background, enabling clearer Raman spectra and more reliable chemical identification.

Key Advantages of 1064 nm Raman

  • Reduced fluorescence interference
  • Improved analysis of colored and organic materials
  • Better identification of pharmaceuticals and biological samples
  • Enhanced performance for forensic and narcotics analysis
  • Improved spectral clarity for difficult samples
  • Non-destructive field chemical identification
  • Through-container analysis capability
  • The fluorescence suppression benefit of 1064 nm excitation is consistently emphasized across leading Raman vendors.

1064 nm vs 785 nm Raman Spectroscopy

While 785 nm Raman systems are widely used for general Raman analysis, 1064 nm excitation is preferred for samples with strong fluorescence backgrounds. Pharmaceutical compounds, dyes, biological materials, polymers, narcotics, and colored substances often produce fluorescence that overwhelms conventional Raman signals. 1064 nm Raman systems significantly reduce this effect, enabling more reliable spectral identification.

When 1064 nm Raman is Preferred

  • Highly fluorescent materials
  • Pharmaceuticals and APIs
  • Biological samples
  • Colored polymers and chemicals
  • Narcotics and forensic evidence
  • Complex organic compounds

How 1064 nm Raman Spectroscopy Works

1064 nm Raman spectroscopy uses near-infrared laser excitation to reduce fluorescence generated by the sample during Raman measurement. The Raman-scattered light is collected and analyzed to produce a molecular fingerprint unique to the material being tested. Because fluorescence intensity generally decreases at longer excitation wavelengths, 1064 nm Raman systems can successfully analyze samples that are difficult or impossible to measure using shorter wavelength Raman excitation.

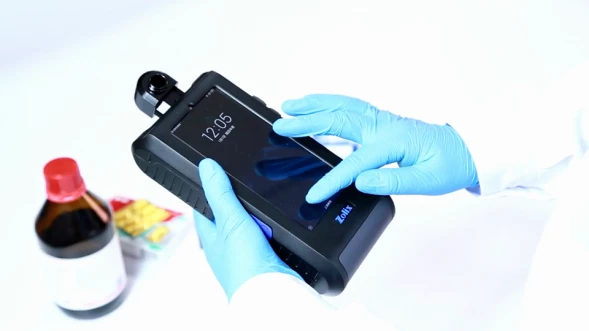

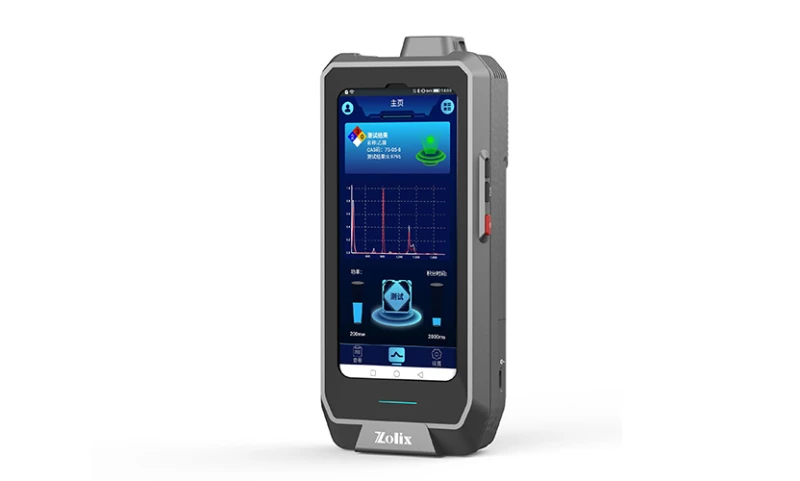

1064nm Handheld Raman Spectrometer

Specifications

Excitation Wavelength: 1064 nm
Laser Power: 500 mW
Raman Shift Range: 200 – 2500 cm^-1
Spectral Resolution: 14 cm^-1
Special Attributes: Handheld, Portable, Mini
Connectivity: Bluetooth, WiFi
Weight: 1.35 kg
Certification: CE, ROHS
Electrical Power Source: Battery Operated
Laser Class: Class 3B

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Small and convenient on-site inspection
  • Running capacity up to 6 hours
  • One-click recognition, all in control

Applications

  • Pharmaceutical Raw Material Identification
    1064 nm Raman systems are widely used for GMP-compliant raw material verification and incoming inspection.
  • Hazardous Material Identification
    Portable Raman analyzers help hazmat teams rapidly identify unknown chemicals, narcotics, explosives, and toxic substances.
  • Forensics and Law Enforcement
    Field Raman analysis supports forensic investigations and evidence screening.
  • Customs and Border Security
    Portable Raman spectroscopy assists in identifying counterfeit, illicit, or hazardous materials.
  • Chemical and Petrochemical Analysis
    Rapid verification of raw materials, intermediates, and finished products.
  • Food Safety and Agricultural Analysis
    Detection of contaminants, additives, and adulteration.

Frequently Asked Questions

Why use a 1064 nm Raman spectrometer?
1064 nm Raman spectrometers reduce fluorescence interference, making them ideal for analyzing highly fluorescent materials such as pharmaceuticals, biological samples, dyes, and colored chemicals.
What is the advantage of 1064 nm over 785 nm Raman?
1064 nm excitation significantly reduces fluorescence background compared to 785 nm Raman systems, enabling clearer Raman spectra for difficult samples.
What industries use handheld 1064 nm Raman analyzers?
Industries include pharmaceuticals, forensics, hazardous materials response, customs inspection, chemical processing, and industrial QA/QC
Can 1064 nm Raman systems analyze materials through containers?
Yes. Many handheld 1064 nm Raman analyzers support through-container analysis for improved safety and convenience.
What detector technology is used in 1064 nm Raman spectrometers?
Many systems use cooled InGaAs detectors optimized for near-infrared Raman detection.
