Description
Walthy Precision Co., Ltd. offers custom high power pinholes specifically designed for optical, laser, astronomy, and other scientific applications. Our pinholes, available in diameters ranging from 1 to 1000 micrometers, are crafted from premium materials such as copper and gold-plated options, ensuring durability and optimal performance.
With flexible mounting options and customizable outer shapes, our pinholes can meet diverse requirements. We provide small quantity orders at competitive prices, making high-quality precision components accessible for all your scientific needs.

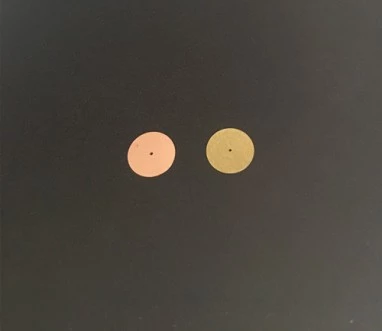

High Power Pinhole
Specifications
| Pinhole Diameter: | 1 um |
|---|---|
| Mounting: | Unmounted |
| Part Diameter: | 9.5 mm |
| Typical Material: | Copper/Gold Plated Or customized |
| Finish: | Gold Coated |
| Ourter Shape: | Round, square, rectangular etc. |
| Thickness: | 0.05mm or customized |
| Micro Patterns: | Round, square, rectangular, slit, arc, hexagon, octagon, annular, etc. and combinations of patterns or arrays |
Download Data Sheet
Features
- Custom Made: Tailored to your specific requirements
- High-Quality Materials: Crafted from copper or gold-plated materials for superior performance
- Flexible Dimensions: Pinhole diameters available from 1 to 1000 micrometers
- Variety of Shapes: Customizable outer shapes including round, square, rectangular and more
- Micro Patterns: Options include round, square, rectangular, slit, arc, hexagon, octagon annular, and combinations of patterns or arrays
- Gold Coated Finish: Ensures enhanced durability and performance
- Competitive Pricing: Affordable prices ranging from 10-30 USD per piece
- Small Quantity Orders: Accepting both small and large quantity orders to suit you project needs
Applications
- Optical Systems
- Laser Technology
- Astronomy Instruments
- Scientific Research and Experiments
- Custom Scientific Instrumentation
- Industrial Applications
Frequently Asked Questions
Can the Custom Shapes & Patterns be made with different materials and coatings?
Yes, the Custom Shapes & Patterns can be made with different materials and coatings according to the customer's requirements.
What are the applications of the High Power Pinhole Description Custom Patterns?
The High Power Pinhole Description Custom Patterns are used in Optical, Laser, Astronomy and other Scientific Applications.
What are the dimensions of the Pinholes and Aperture?
The Pinholes and Aperture have a diameter ranging from 5-1000um with a tolerance of ±1um to ±10um depending on the item.
What are the specifications of the Mounted Slits and Pinholes?
The Mounted Slits and Pinholes have a slit width ranging from 5-1000um, a slit length of 3mm or customized, and a housing made of black-anodized aluminum with an outer diameter of Ø1″ (25.4mm) and a thickness of 0.10″ (2.5mm). Pinholes are also available with a diameter ranging from 5-1000um.
What materials are used for the Precision Slits?
The Precision Slits are made of 304 Stainless Steel with a thickness of 0.05mm, 0.1mm or customized.
