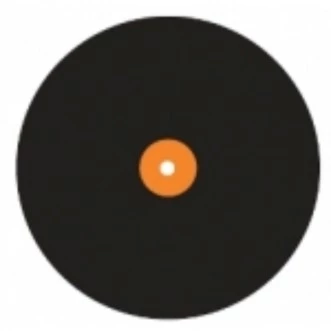

Thumbnail of Graticules Optics, Mounted Circular 3mm Copper Foil Pinhole Aperture, 5µm diameter – C5 photo 1

Description

The C5 Mounted Metal Foil Pinhole Aperture is a precision-engineered component designed to meet the exacting standards of scientific and industrial applications. With an aperture diameter of 0.005mm (5μm), this product offers unparalleled accuracy and reliability. The aperture is crafted from 3mm copper foil, which is blackened on one side to minimize reflections and enhance performance. This meticulous construction ensures that the aperture delivers consistent results in a variety of settings.

Encased in a robust circular holder made from black anodised aluminium, the C5 aperture is both durable and lightweight. The anodised finish not only provides a sleek appearance but also adds an extra layer of protection against environmental factors, ensuring longevity and sustained performance. The mount is available in three different diameters: 12.7mm, 16mm, or 25mm, allowing for flexibility in integration with existing systems and equipment.

This product is part of a comprehensive range of mounted circular apertures, each designed to meet specific requirements. The C5 aperture, with its precise 5μm diameter, is ideal for applications demanding high precision and minimal tolerance, with a tolerance of +/-0.5μm. Whether used in research laboratories or industrial settings, the C5 Mounted Metal Foil Pinhole Aperture stands out for its superior quality and performance.

Graticules Optics, Mounted Circular 3mm Copper Foil Pinhole Aperture, 5µm diameter – C5

Visit the Graticules Optics Limited Store

Specifications

Pinhole Diameter: 5 um
Mounting: Mounted
Part Diameter: 12.7 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Precision Aperture: The C5 Mounted Metal Foil Pinhole Aperture features a precise 0.005mm (5μm) diameter, perfect for applications requiring high accuracy.
  • Quality Material: Constructed from 3mm copper foil, blackened on one side, ensuring durability and optimal performance.
  • Precision Tolerance: Offers a tight tolerance of +/-0.5μm, ensuring consistent and reliable results.
  • Durable Mount: Comes with a circular holder made from black anodised aluminium, providing robust support and easy integration.
  • Versatile Mount Sizes: Available in mount diameters of 12.7mm, 16mm, or 25mm to suit various equipment and setups.
  • Range of Aperture Sizes: Part of a series offering various aperture sizes, from 0.001mm (1 micron) to 1.0mm (1000 microns), catering to diverse needs.
  • Easy Ordering: Simply add the desired mount diameter to the order code, e.g., /25 for a 25mm mount.

Applications

  • Optical Experiments: Ideal for precision optical experiments requiring small, consistent apertures.
  • Laser Beam Profiling: Used in laser systems to control and shape the beam profile with high accuracy.
  • Microscopy: Enhances resolution and contrast in microscopy applications by limiting the light path.
  • Scientific Research: Essential for experiments in physics and engineering that require precise light control.
  • Calibration: Used for calibrating optical instruments and ensuring measurement accuracy.
  • Quality Control: Employed in quality control processes where precise aperture sizes are critical.
  • Photography: Utilized in specialized photography techniques to achieve desired lighting effects.
  • Fiber Optics: Assists in coupling light into fiber optics with minimal loss.

Frequently Asked Questions

What is the material used for the C5 Mounted Metal Foil Pinhole Aperture?
The C5 Mounted Metal Foil Pinhole Aperture is made from 3mm copper foil, blackened on one side and fitted into a mount.
What is the diameter of the aperture in the C5 model?
The aperture diameter in the C5 model is 0.005mm (5μm).
What is the tolerance level for the C5 aperture diameter?
The tolerance level for the C5 aperture diameter is +/-0.5μm.
What material is used for the mount of the C5 aperture?
The mount for the C5 aperture is made from black anodised aluminium.
What are the available mount diameters for the C5 aperture?
The available mount diameters for the C5 aperture are 12.7mm, 16mm, or 25mm.
How do I specify the mount diameter when ordering?
To specify the mount diameter when ordering, add the mount diameter after the order code, for example, /25 for a 25mm mount.
Are there other aperture sizes available in the same series?
Yes, other aperture sizes in the series include diameters of 0.001mm, 0.002mm, 0.01mm, 0.025mm, 0.05mm, 0.1mm, 0.25mm, and 1.0mm.

Got more questions? Use the inquiry form to ask the supplier directly.
