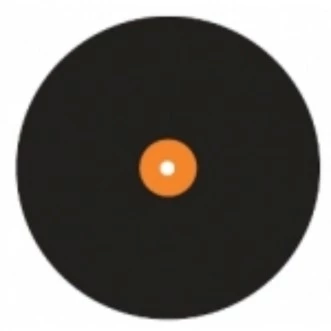

Graticules Optics, Mounted Circular 3mm Copper Foil Pinhole Aperture, 10µm diameter – C10
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2019
Description
Introducing the C10 Mounted Metal Foil Pinhole Aperture, a precision-engineered component designed for applications requiring exacting standards of accuracy and reliability. This aperture features a minuscule diameter of 0.01mm (10μm), making it ideal for tasks that demand the utmost precision. Crafted from high-quality 3mm copper foil, the aperture is blackened on one side to enhance its performance and reduce reflections, ensuring optimal results in your projects.
The C10 aperture is securely fitted into a robust circular holder made from black anodised aluminium. This durable mount not only provides stability but also adds a sleek, professional appearance to the component. The anodised finish enhances the longevity of the mount, protecting it from wear and corrosion, which is essential for maintaining the integrity of the aperture over time.
For added versatility, the C10 aperture is available in a range of mount diameters, including 12.7mm, 16mm, and 25mm. This flexibility allows you to select the perfect size for your specific needs, ensuring a seamless integration into your existing systems or setups. Whether you are involved in scientific research, industrial applications, or any field that requires precise optical components, the C10 Mounted Metal Foil Pinhole Aperture is an excellent choice that combines precision, durability, and adaptability.
Graticules Optics, Mounted Circular 3mm Copper Foil Pinhole Aperture, 10µm diameter – C10
Specifications |
|
|---|---|
| Pinhole Diameter: | 10 um |
| Mounting: | Mounted |
| Part Diameter: | 12.7 mm |
Features
- High Precision Aperture: Features a 0.01mm (10μm) diameter for precise applications.
- Material: Constructed from 3mm copper foil, blackened on one side for enhanced performance.
- Tolerance: Offers a tight tolerance of +/-1μm, ensuring accuracy and reliability.
- Durable Mount: Comes with a circular holder made from black anodised aluminium for robust support.
- Versatile Mount Sizes: Available in mount diameters of 12.7mm, 16mm, or 25mm to suit various needs.
- Product Variants: Available in multiple aperture sizes:
- C 1: 0.001mm (1 micron) diameter - Order Code: 04D00900
- C 2: 0.002mm (2 micron) diameter - Order Code: 04D00901
- C 5: 0.005mm (5 micron) diameter - Order Code: 04D00902
- C 10: 0.01mm (10 microns) diameter - Order Code: 04D00903
- C 25: 0.025mm (25 micron) diameter - Order Code: 04D00904
- C 50: 0.05mm (50 micron) diameter - Order Code: 04D00905
- C 100: 0.1mm (100 micron) diameter - Order Code: 04D00906
- C 250: 0.25mm (250 micron) diameter - Order Code: 04D00907
- C 1000: 1.0mm (1000 micron) diameter - Order Code: 04D00908
- Customizable Order: Specify mount diameter by adding it after the order code (e.g., /25 for 25mm).
Applications
- Precision Optical Experiments: The C10 Mounted Metal Foil Pinhole Aperture is ideal for experiments requiring precise control of light, such as diffraction and interference studies.
- Laser Beam Profiling: Use the aperture to shape and size laser beams accurately for profiling and alignment tasks.
- Microscopy: Enhance the resolution and contrast in microscopy by limiting the light entering the optical system.
- Calibration of Optical Instruments: The precise aperture size is perfect for calibrating and testing the performance of optical instruments.
- Photography and Imaging: Achieve specific depth of field and focus effects in photography and imaging applications.
- Scientific Research: Suitable for various scientific research applications where controlled light exposure is necessary.
- Quality Control in Manufacturing: Use in quality control processes to ensure precision in manufacturing optical components.
Frequently Asked Questions
The C10 Mounted Metal Foil Pinhole Aperture is made from 3mm copper foil, blackened on one side and fitted into a mount.
The aperture diameter of the C10 model is 0.01mm (10μm).
The tolerance of the aperture diameter is +/-1μm.
The mount is made of black anodised aluminium.
The available mount diameters for the C10 aperture are 12.7mm, 16mm, or 25mm.
To specify the mount diameter when ordering, add the mount diameter after the order code, for example, /25 for a 25mm mount.
Yes, other aperture sizes available include 0.001mm, 0.002mm, 0.005mm, 0.025mm, 0.05mm, 0.1mm, 0.25mm, and 1.0mm.
