Description
Walthy Precision Co., Ltd. offers high-quality unmounted optical pinholes ideal for optical systems, educational experiments, and spectrophotometer image analysis. Our pinholes are available in diameters ranging from 5 µm to 1000 µm, crafted from durable 304 stainless steel. Each pinhole is precisely fabricated to meet stringent tolerance specifications, ensuring optimal performance in your applications.
We provide customization options to meet specific requirements, including various substrate materials, diameters, and pinhole configurations. Slits are also available upon request.

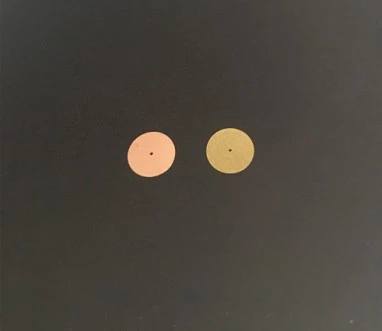

Standard Optical Pinholes Round Aperture
Specifications
| Pinhole Diameter: | 1 um |
|---|---|
| Mounting: | Unmounted |
| Part Diameter: | 9.5 mm |
| Material: | 304 Stainless Steel Copper, Nickel, Becu etc. |
| Thickness: | 0.05mm or Customized |
| Pinhole/Aperture Diameter: | 1 to 1000um |
| Outer Diameter: | 9.5mm or Customized |
| Finish: | Can be blacked Or Gold Plated |
Download Data Sheet
Features
- Wide Range of Pinhole Diameters: Available from 5 µm to 1000 µm
- High Precision: Pinhole diameter tolerance as low as ±1 µm
- Durable Material: Made from 304 stainless steel
- Customizable: Custom pinholes available in different materials, diameters, and configurations
- Additional Options: Slits can be fabricated upon request
- Ideal for Various Applications: Suitable for optical systems, educational optical experiments, and spectrophotometer image analysis
- Compact Design: Outer diameter of 9.5 mm
Applications
- Optical Systems
- Educational Optical Experiments
- Spectrophotometer Image Analysis
- Custom Scientific Instrumentation
- Research and Development Projects
Frequently Asked Questions
Can the shape of the substrates be customized for the Standard Optical Pinholes Round Aperture?
Yes, the shape of the substrates can be customized according to your requirements.
Is it possible to order a small quantity of the Standard Optical Pinholes Round Aperture?
Yes, small quantities are acceptable and the product is competitively priced at 10-20usd/piece.
What applications is the Standard Optical Pinholes Round Aperture suitable for?
The Standard Optical Pinholes Round Aperture is suitable for optical systems, various optical experiments, lasers, and spectrophotometer image analysis.
What is the material used for the Standard Optical Pinholes Round Aperture?
The material used is 304 Stainless Steel with a thickness of 0.05mm.
What is the Pinhole/Aperture Diameter Tolerance for the Standard Optical Pinholes Round Aperture?
The Pinhole/Aperture Diameter Tolerance ranges from ±1um to ±10um depending on the size of the pinhole/aperture.
