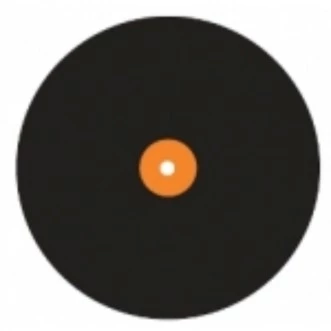

Graticules Optics, Mounted Circular 3mm Copper Foil Pinhole Aperture, 2µm diameter – C2
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2019
Description
Introducing the C2 Mounted Metal Foil Pinhole Aperture, a precision-engineered component designed to meet the highest standards of accuracy and reliability. This aperture features a remarkably small diameter of 0.002mm (2μm), making it an ideal choice for applications requiring exceptional precision. Crafted from 3mm copper foil, the aperture is blackened on one side to enhance its performance and reduce unwanted reflections.
The C2 aperture is securely fitted into a circular holder made from black anodised aluminium, ensuring durability and stability during use. This robust construction not only protects the delicate aperture but also provides a sleek, professional appearance. The mount is available in three different diameters: 12.7mm, 16mm, or 25mm, allowing for flexibility in integration with various systems and setups.
With a tolerance of +/-0.5μm, the C2 Mounted Metal Foil Pinhole Aperture guarantees precise and consistent performance. This level of precision is crucial for applications where even the smallest deviation can impact results. Whether you are working in scientific research, industrial inspection, or any field that demands meticulous attention to detail, this aperture is designed to deliver reliable and repeatable outcomes.
Graticules Optics, Mounted Circular 3mm Copper Foil Pinhole Aperture, 2µm diameter – C2
Specifications |
|
|---|---|
| Pinhole Diameter: | 2 um |
| Mounting: | Mounted |
| Part Diameter: | 12.7 mm |
Features
- High Precision Aperture: Features a pinhole aperture with a diameter of 0.002mm (2μm), ensuring exceptional precision for specialized applications.
- Premium Material: Constructed from 3mm copper foil, blackened on one side, providing durability and optimal performance.
- Precision Tolerance: Offers a tight tolerance of +/-0.5μm, guaranteeing reliable and consistent results.
- Robust Mounting: Comes with a circular holder made from black anodized aluminum, ensuring stability and ease of use.
- Versatile Mount Diameters: Available in multiple mount diameters: 12.7mm, 16mm, or 25mm, to suit various equipment and setups.
- Wide Range of Options: Part of a comprehensive series of mounted circular apertures with diameters ranging from 0.001mm (1μm) to 1.0mm (1000μm), catering to diverse needs.
- Easy Identification: Each aperture is identified by a unique order code, with the option to specify mount diameter for precise ordering.
Applications
- Precision Optical Experiments: Ideal for use in experiments requiring precise control of light passage, such as diffraction and interference studies.
- Laser Beam Profiling: Useful for shaping and controlling laser beams in optical systems.
- Microscopy: Enhances resolution in microscopy by controlling the illumination and improving contrast.
- Calibration Tools: Serves as a standard for calibrating optical instruments and systems.
- Photolithography: Used in photolithography processes for creating precise patterns on substrates.
- Scientific Research: Essential for various scientific research applications where precise aperture control is necessary.
- Optical Alignment: Assists in the alignment of optical components by providing a fixed reference point.
Frequently Asked Questions
The C2 Mounted Metal Foil Pinhole Aperture is made from 3mm copper foil, blackened on one side and fitted into a mount.
The aperture diameter in the C2 model is 0.002mm (2μm).
The tolerance for the aperture diameter is +/-0.5μm.
The mount is made of black anodised aluminium.
The available mount diameters for the C2 aperture are 12.7mm, 16mm, or 25mm.
To specify the mount diameter when ordering, add the mount diameter after the order code, for example, /25 for a 25mm mount.
Yes, other aperture sizes are available, ranging from 0.001mm (1 micron) to 1.0mm (1000 microns), each with a specific order code.
