Description

The C50 Mounted Metal Foil Pinhole Aperture is a precision-engineered component designed for applications requiring exacting standards of accuracy and reliability. With a minuscule aperture diameter of 0.05mm (50μm), this product is crafted to meet the needs of professionals who demand the highest level of precision. The aperture is constructed from 3mm copper foil, which is blackened on one side to enhance its performance and durability. This meticulous construction ensures that the aperture delivers consistent and reliable results in a variety of settings.

Encased in a robust circular holder made of black anodised aluminium, the C50 aperture is not only durable but also aesthetically pleasing. The anodised finish provides an additional layer of protection against environmental factors, ensuring longevity and sustained performance. This thoughtful design makes it an ideal choice for environments where both functionality and appearance are important.

The C50 aperture is available in multiple mount diameters, including 12.7mm, 16mm, and 25mm, allowing for versatile integration into different systems and setups. This flexibility ensures that the aperture can be seamlessly incorporated into existing configurations, providing a tailored solution for specific needs. The precision and adaptability of the C50 Mounted Metal Foil Pinhole Aperture make it an indispensable tool for professionals seeking unparalleled accuracy and performance.

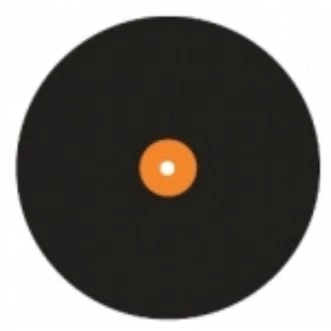

Graticules Optics, Mounted Circular 3mm Copper Foil Pinhole Aperture, 50µm diameter – C50

Specifications

Pinhole Diameter: 50 um
Mounting: Mounted
Part Diameter: 12.7 mm
Material: 3mm Copper Foil, Blackened one side
Aperture Diameter: 0.05mm (50μm)
Tolerance: +/-2μm
Mount: Circular Holder in Black Anodised Aluminium
Available Mount Diameters: 12.7mm, 16mm or 25mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Precision Aperture: Features a 0.05mm (50μm) diameter with a tolerance of +/-2μm, ensuring precise and accurate measurements.
  • Durable Material: Constructed from 3mm copper foil, blackened on one side, providing durability and reduced reflection.
  • Secure Mounting: Comes with a circular holder made from black anodised aluminium, offering robust support and easy integration into various setups.
  • Versatile Mount Diameters: Available in mount diameters of 12.7mm, 16mm, or 25mm to suit different application needs.
  • Wide Range of Aperture Sizes: Part of a series offering various aperture sizes from 0.001mm (1 micron) to 1.0mm (1000 microns), allowing for flexibility in selection based on specific requirements.
  • Easy Ordering: Simply add the desired mount diameter to the order code (e.g., /25 for 25mm) for straightforward purchasing.

Applications

  • Precision Optical Experiments: Ideal for experiments requiring precise light control and beam shaping.
  • Laser Beam Profiling: Used in laser systems to define beam size and shape with high accuracy.
  • Microscopy: Enhances image resolution by controlling the light path in advanced microscopy techniques.
  • Photolithography: Essential in semiconductor manufacturing for defining patterns with high precision.
  • Scientific Research: Utilized in various research fields including physics and materials science for controlled experiments.
  • Optical Calibration: Serves as a standard for calibrating optical instruments and ensuring measurement accuracy.
  • Quality Control: Used in quality assurance processes to ensure product consistency and precision in manufacturing.

Frequently Asked Questions

What is the material of the C50 Mounted Metal Foil Pinhole Aperture?
The C50 Mounted Metal Foil Pinhole Aperture is made from 3mm copper foil, blackened on one side and fitted into a mount.
What is the diameter of the aperture?
The aperture diameter is 0.05mm (50μm).
What is the tolerance of the aperture diameter?
The tolerance of the aperture diameter is +/-2μm.
What material is the mount made of?
The mount is made of black anodised aluminium.
What are the available mount diameters?
The available mount diameters are 12.7mm, 16mm, or 25mm.
How do I specify the mount diameter when ordering?
You should add the mount diameter after the order code, for example, /25 for a 25mm mount.
Are there other aperture sizes available?
Yes, there are other sizes available ranging from 0.001mm (1 micron) to 1.0mm (1000 microns).

Got more questions? Use the inquiry form to ask the supplier directly.
