Graticules Optics, Mounted Circular 3mm Copper Foil Pinhole Aperture, 1µm diameter – C1 - Get a price quote from Graticules Optics Limited

Name: Graticules Optics, Mounted Circular 3mm Copper Foil Pinhole Aperture, 1µm diameter – C1
Brand: Graticules Optics Limited
Availability: InStock

Description

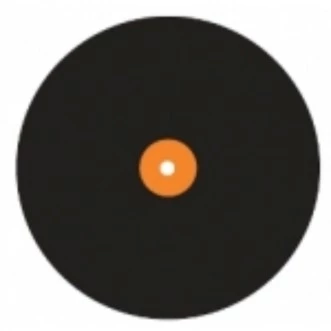

Introducing the C1 Mounted Metal Foil Pinhole Aperture, a precision-engineered component designed for applications requiring the utmost accuracy. This aperture features a minuscule diameter of 0.001mm (1μm), making it an ideal choice for tasks that demand high precision and minimal tolerance. Crafted from 3mm copper foil, the aperture is blackened on one side to enhance its performance and is securely fitted into a robust mount.

The aperture is housed in a circular holder made from black anodized aluminum, ensuring durability and stability during use. This design not only provides a sleek and professional appearance but also ensures that the aperture remains securely in place, minimizing any potential for movement or misalignment. The mount is available in three different diameters: 12.7mm, 16mm, or 25mm, allowing for flexibility and compatibility with various setups and equipment.

Our range of mounted circular apertures includes several options to suit different needs, from the ultra-fine 0.001mm (1μm) diameter to larger sizes such as 1.0mm (1000μm). Each aperture is meticulously crafted to meet stringent quality standards, ensuring reliable performance and precision in every application. Whether you are conducting scientific research, industrial inspection, or any other high-precision task, our mounted metal foil pinhole apertures are designed to deliver exceptional results.

Specifications

Pinhole Diameter:	1 um
Mounting:	Mounted
Part Diameter:	12.7 mm

Download Data Sheet

Features

High Precision Aperture: Features a 0.001mm (1μm) diameter for precise applications.
Material: Constructed from 3mm copper foil, blackened on one side for enhanced performance.
Tight Tolerance: Offers a tolerance of +/-0.5μm, ensuring accuracy in measurements.
Durable Mount: Comes with a circular holder made from black anodised aluminium for robust support.
Versatile Mount Sizes: Available in mount diameters of 12.7mm, 16mm, or 25mm to suit various setups.
Product Variants: Available in multiple aperture sizes for diverse needs:
- C 1: 0.001mm (1μm) diameter - Order Code: 04D00900
- C 2: 0.002mm (2μm) diameter - Order Code: 04D00901
- C 5: 0.005mm (5μm) diameter - Order Code: 04D00902
- C 10: 0.01mm (10μm) diameter - Order Code: 04D00903
- C 25: 0.025mm (25μm) diameter - Order Code: 04D00904
- C 50: 0.05mm (50μm) diameter - Order Code: 04D00905
- C 100: 0.1mm (100μm) diameter - Order Code: 04D00906
- C 250: 0.25mm (250μm) diameter - Order Code: 04D00907
- C 1000: 1.0mm (1000μm) diameter - Order Code: 04D00908
Customizable Order Codes: Add mount diameter to the order code (e.g., /25 for 25mm) for easy customization.

Applications

Precision Optical Experiments: Ideal for experiments requiring precise control of light passage through a small aperture.
Laser Beam Profiling: Used in laser systems to define the beam size and shape accurately.
Microscopy: Enhances resolution by limiting the light entering the microscope, improving image clarity.
Calibration of Optical Instruments: Provides a known reference point for calibrating optical devices.
Particle Size Analysis: Assists in determining the size of particles by controlling the light passing through the sample.
Scientific Research: Utilized in various research applications where precise light control is necessary.
Quality Control in Manufacturing: Ensures consistency and precision in products requiring exact aperture sizes.
Photography and Cinematography: Used in cameras and projectors to control light exposure and focus.
Fiber Optic Systems: Helps in aligning and coupling light into fiber optic cables.
Educational Demonstrations: Demonstrates principles of optics and light behavior in educational settings.
