Description

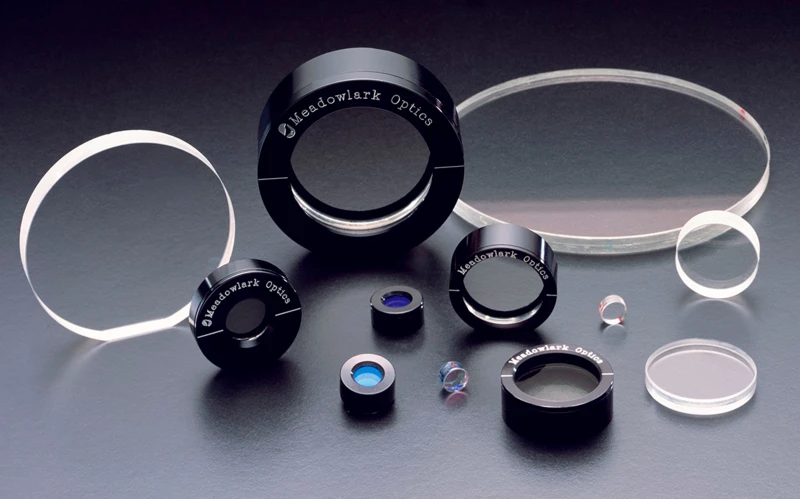

Meadowlark Optics specializes in precision polymer retarders for the visible to near infrared region. Our Precision Retarders have the highest optical quality and tightest retardance tolerance of all polymer retarders. These true zero-order Precision Retarders consist of a birefringent polymer cemented between two precision polished, optically flat BK 7 windows. The retarder fast axis is conveniently marked for quick and easy reference.

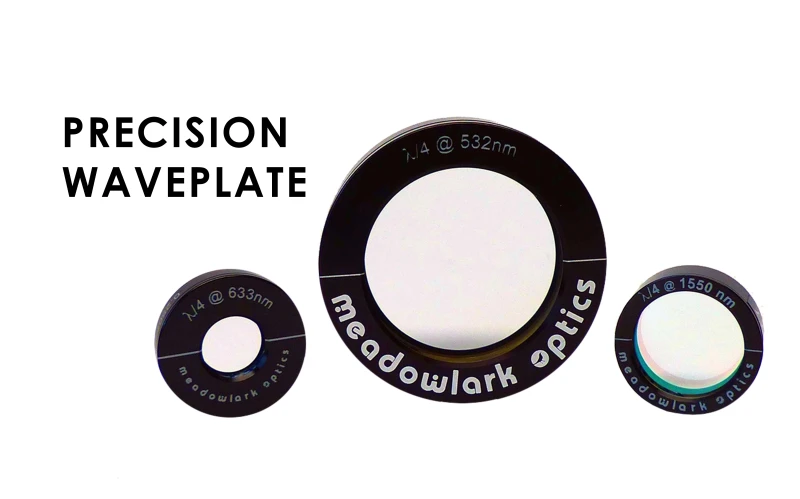

Meadowlark Optics Precision Waveplate

Specifications

Waveplate Type (Retardation Order): Zero Order
Material: Polymer, N-BK7
Mounting: Mounted, Unmounted
Shape: Round, Square, Rectangle, Custom
Size (Largest Dimension): 25.4 mm
Design Wavelength: 633 nm
Surface Quality (Scratch-Dig): 40-20

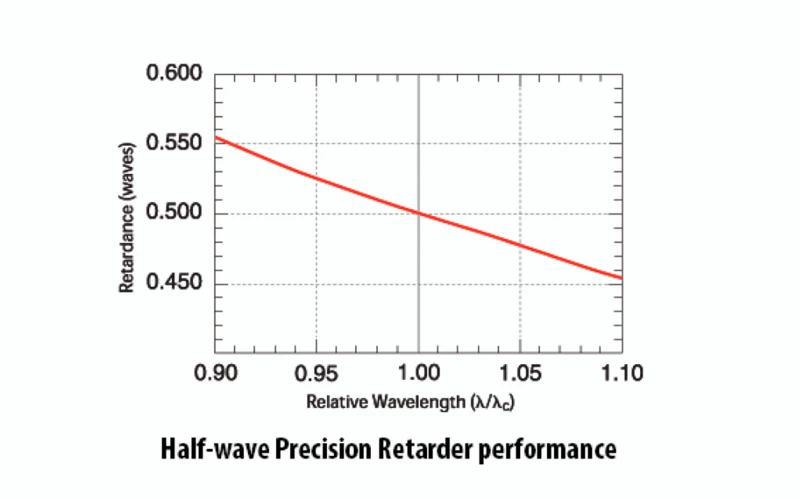

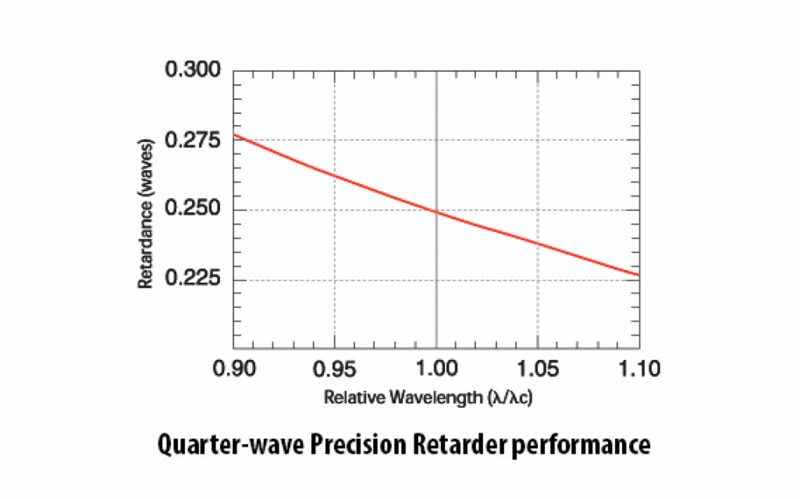

Retardation: Lambda/2, Lambda/4, Lambda, Other
Retardation Tolerance: +/- Lambda/400, +/- Lambda/300, Custom
Transmitted Wavefront Distortion (TWD): <= Lambda/4, Custom
Available Design Wavelengths: 400-1800 nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • True zero-order retarders
  • Excellent off-axis performance
  • Unequaled measured accuracy
  • Less temperature dependence than quartz waveplates
  • Lower cost than compound zero-order waveplates
  • Better angular acceptance than compound zero-order quartz waveplates
