Description

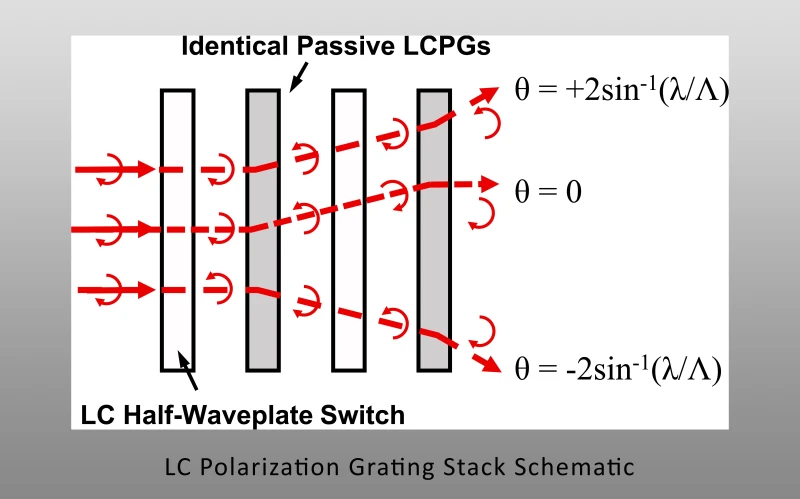

Meadowlark Optics’ Liquid Crystal Polarization Gratings utilize spatially varying birefringence to create highly efficient polarization-sensitive gratings. Circularly polarized light can be directed into either the +1 or -1 order depending on the handedness of the incident light. By using a stack of N LCPGs and half-waveplate switches, it is possible to steer to 2ᴺ discrete angles in 1-D or 2-D arrays.

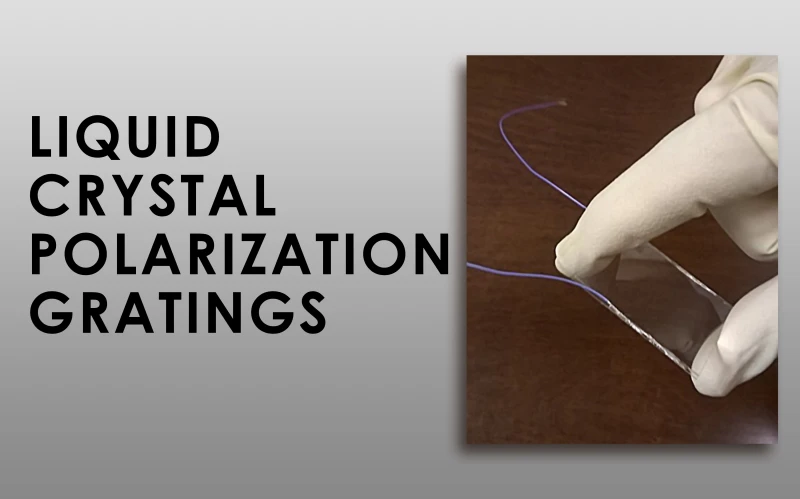

Meadowlark Optics Liquid Crystal Polarization Gratings (LCPG) and Lenses (LCPL)
Specifications
| Waveplate Type: | Zero Order |
|---|---|
| Material: | Liquid Crystal |
| Mounting: | Mounted, Unmounted |
| Shape: | Round, Square, Rectangle, Custom |
| Size: | 25.4 mm |
| Center Wavelength: | 700 nm |
| Retardation: | Other |
| Retardation Accuracy: | Custom, Other |
| Wavefront Distortion: | Custom, Other |
| Surface Quality (Scratch-Dig): | 40-20 |
Features
- Low size, weight, and power
- Random-access scanning
- Robust non-mechanical operation
- Large apertures possible (>20 cm)
- Diffraction-limited wavefront quality
- High diffraction efficiency (>99%)
- Up to 80°×80° steering demonstrated
- Demonstrated in VIS to MWIR
- Wide-angle beam steering > 100°
- Sub-millisecond switching times
Applications
- Aerospace & Defense: Inertialess optical beam steering with dramatic reductions of size, weight, and power

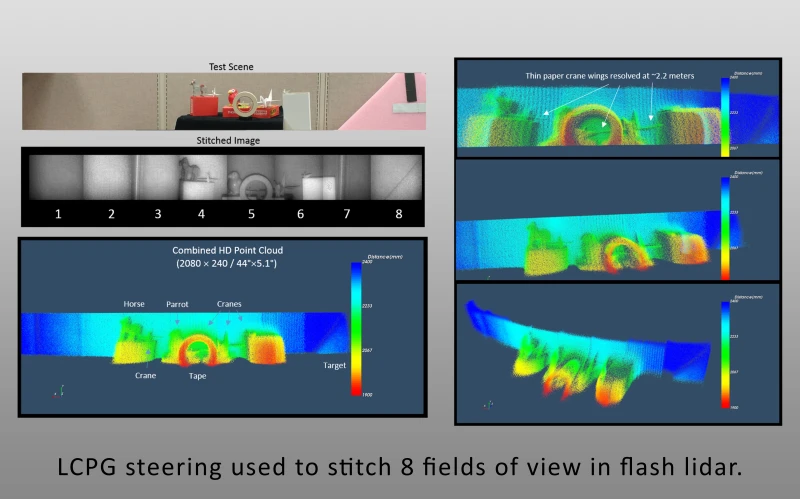

- Automotive: Wide-angle steering of flash and coherent lidar for ADAS and autonomous vehicles
- Manufacturing + Automation: Increase range and resolution of conventional Time-of-Flight cameras without sacrificing field of view
- Telecommunication: Nonmechanical coarse pointing, acquisition, and tracking, as well as nonmechanical divergence control
- Wind Power Generation: Compact nonmechanical pointing of coherent Doppler lidar wind sensing
- Photo Simulation
- Optogenetics
- Machine Vision
- Remote Focusing
