Name: Al+MgF2 Broadband Mirror 190nm H1900-2D-MB (2.0" Diameter)
Brand: Teledyne Acton Optics
Availability: InStock

Description

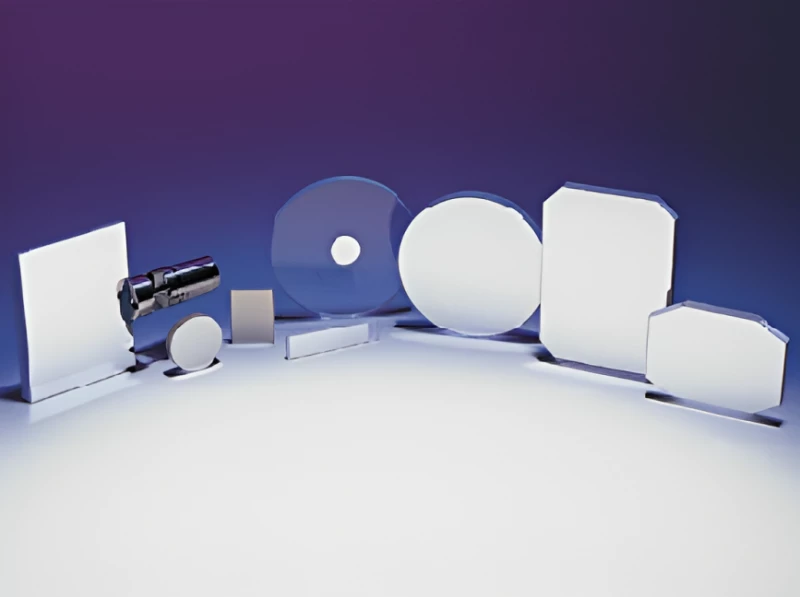

Acton's Al+MgF2 Broadband Mirrors are engineered with high-efficiency coatings, setting the industry standard for broadband UV and VUV reflectance. These mirrors offer exceptional reflectance down to 120 nm, ensuring excellent performance throughout the visible and near-infrared ranges.

Available in optimized coatings for 120 nm, 160 nm, and 190 nm, these mirrors enhance light throughput in diverse applications, including DUV spectrophotometers, ellipsometry, VUV/UV-based analytical instrumentation, ICP spectrometers, and aerospace applications.

Specifications

Reflective Coating:	UV-Enhanced Aluminum
Substrate:	Metallic

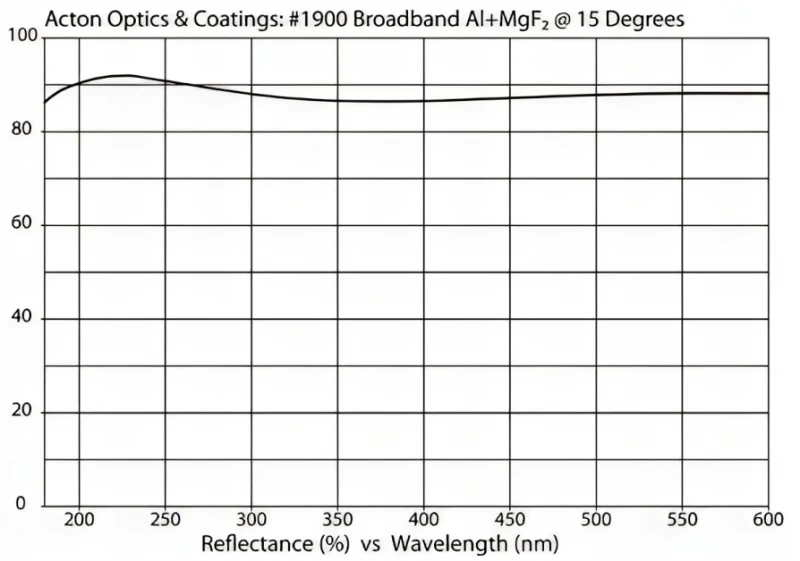

Average Reflectance:	87 %
Wavelength Range:	190 – 600 nm
Surface Flatness:	Custom
Surface Quality:	Custom
Diameter:	50.8 mm
Thickness:	9.53 mm
Shape:	Round

Download Data Sheet

Features

High-Efficiency Coatings: Al+MgF2 coatings for superior broadband UV and VUV reflectance
Optimized Wavelengths: Available coatings optimized for reflectance at 120 nm, 160 nm, and 190 nm
Industry Standard: Sets the benchmark for broadband UV and VUV reflectance with over four decades of expertise
Exceptional Performance: Ensures high reflectance down to 120 nm for improved light throughput
Diverse Applications: Ideal for DUV spectrophotometers, ellipsometry, VUV/UV-based analytical instruments, ICP spectrometers, and aerospace applications

Applications

DUV Spectrophotometers: Ensure precise measurements in deep ultraviolet spectrophotometry
Ellipsometry: Ideal for ellipsometric studies in a broad UV and VUV range
Analytical Instrumentation: Enhance the performance of VUV/UV-based analytical instruments
ICP Spectrometers: Improve spectral analysis in inductively coupled plasma spectrometry
Aerospace Applications: Broadband mirrors support various aerospace applications demanding exceptional reflectance
