UV-VIS Enhanced Silver Coated Mirror 400-800nm H4000-2D-MB (2.0" Diameter)

Visit the Teledyne Acton Optics Store

Specifications

Reflective Coating: Protected Silver
Substrate: Other (not specified)
Average Reflectance: 98 %
Wavelength Range: 400 – 800 nm
Surface Flatness: Custom
Surface Quality: Custom
Diameter: 50.8 mm
Thickness: Not Specified
Shape: Round
Reflectance (@ 45°, 400-800nm): > 98 %
Reflectance (@ 45°, 2-10µm): > 97 %
Document icon Download Data Sheet Download icon

Features

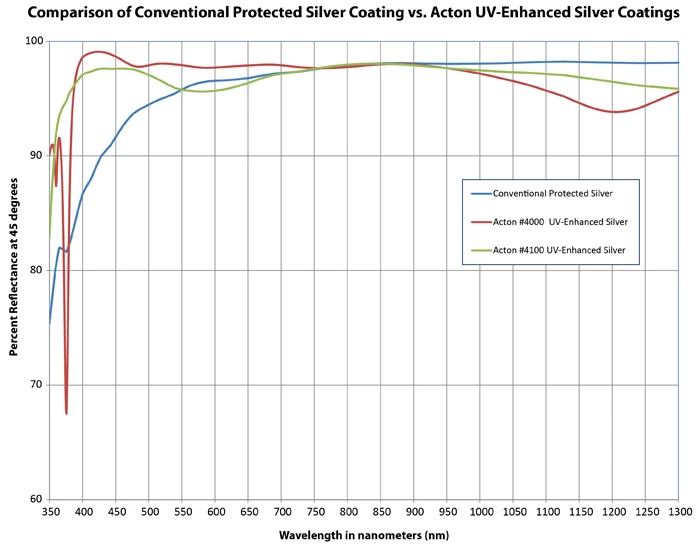

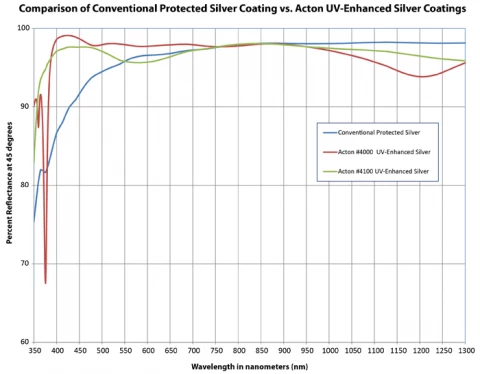

  • Enhanced Reflectivity: Overcomes limitations of standard silver coatings below 450 nm, ensuring high reflectivity from 400 nm to the mid-IR

  • Broadband Performance: Achieves >98% reflectivity from 400 nm to the mid-infrared range (2-10 µm)

  • Versatile Sizes: Available in various diameters including 0.5", 1.0", 1.5", and 2.0"

Applications


  • Military Optics: Critical for precision optics in military applications requiring high reflectivity

  • Telescopes: Enhances the performance of telescopic systems for clearer and detailed observations

  • Spaceflight Hardware: Suitable for optical components in space missions and satellite systems

  • Analytical Instruments: Ideal for analytical instruments where high reflectivity is essential for accurate measurements

  • Ultrafast Ti:sapphire Lasers: Facilitates the development of high-performance lasers for scientific research
