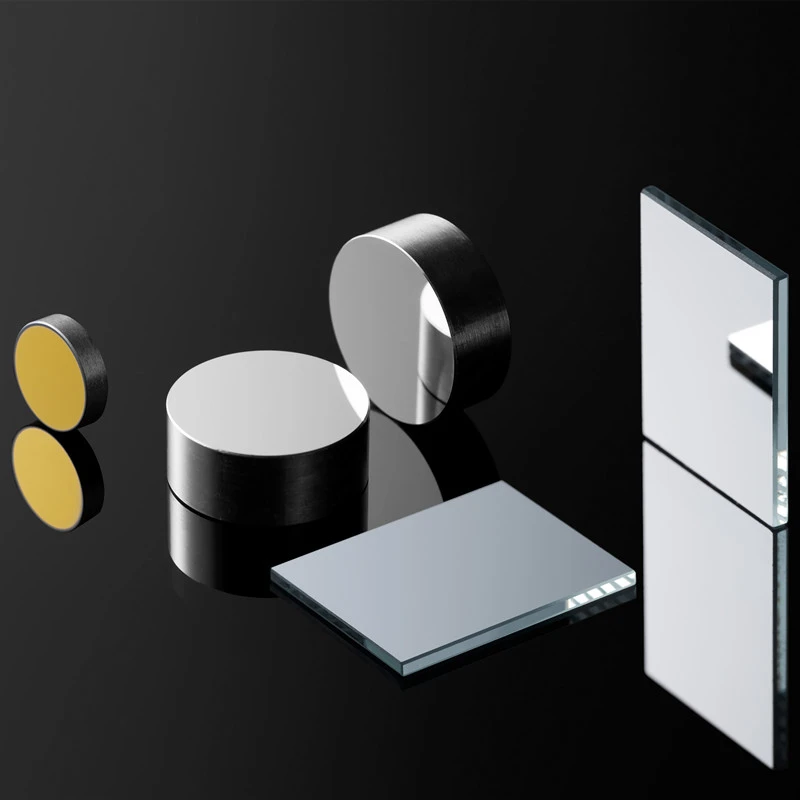

Thumbnail of High Quality Quartz Fused Silica Glass Mirror Optical Reflecting Mirrors with Silver Coating photo 1

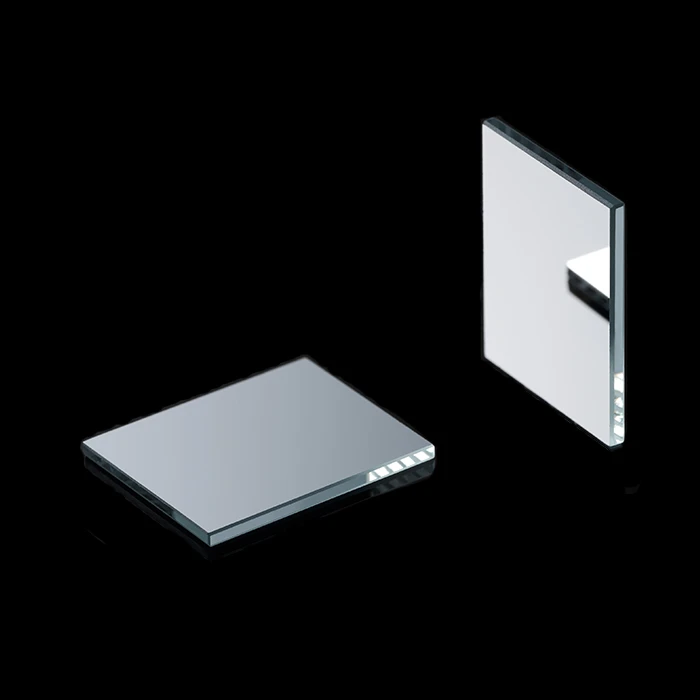

Thumbnail of High Quality Quartz Fused Silica Glass Mirror Optical Reflecting Mirrors with Silver Coating photo 2

Description

Fused silica silver coated reflective mirrors are high-precision optical components engineered for demanding applications in laser systems, scientific instrumentation, and aerospace optics. Constructed from a UV-grade fused silica substrate, these mirrors feature a robust protective silver reflective layer, delivering exceptional reflectivity across the visible to near-infrared (VIS-NIR) spectrum.

The ultra-low thermal expansion coefficient of fused silica ensures minimal thermal deformation, while the protective overcoating enhances durability and resistance to oxidation.

Manufactured via precision polishing and advanced thin-film deposition, these reflectors offer high surface quality, low scattering, and stable optical performance under high-power or elevated-temperature conditions. Ideal for applications requiring uncompromising precision, they are widely deployed in ultrafast lasers, interferometers, and biomedical imaging systems, where consistent performance is critical.

High Quality Quartz Fused Silica Glass Mirror Optical Reflecting Mirrors with Silver Coating

Visit the Henan UM Optics Ltd Store

Specifications

Reflective Coating: Protected Silver
Substrate: Fused Silica, UV Fused Silica
Average Reflectance: 99 %
Wavelength Range: 450 – 2000 nm
Surface Flatness: lambda/4
Surface Quality: 60-40 scratch-dig
Shape: Rectangle
Dimension Tolerance: +0/-0.1mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Ultra-Low Thermal Expansion: Fused silica substrate (α ≈ 0.55×10⁻⁷/℃) minimizes thermal distortion, ensuring stable performance in variable-temperature environments
  • Protective Silver Coating: Multi-layer protective overcoating enhances chemical stability, oxidation resistance, and mechanical durability
  • High Laser Damage Threshold: Engineered to withstand >1.8 J/cm² at 1064 nm, making it suitable for high-power and ultrafast laser systems
  • Low Scattering & Wavefront Distortion: Precision polishing ensures surface roughness <1 nm RMS, reducing optical losses and maintaining beam integrity

Applications

  • High-Power & Ultrafast Laser Systems: Used as cavity mirrors, beam steering, and pulse compression components in fiber, solid-state, femtosecond, and picosecond lasers
  • Spectroscopy & Metrology: Deployed in FTIR spectrometers, laser interferometers, and ellipsometers for precision optical measurement and analysis
  • Biomedical & Medical Devices: Utilized in laser surgery, ophthalmic systems, and advanced imaging equipment (e.g., multiphoton microscopy)
  • Aerospace & Defense: Integrated into space-borne optical systems, infrared tracking systems, and high-altitude surveillance platforms
  • Semiconductor & Industrial Inspection: Applied in wafer metrology, laser micromachining, and quality control systems requiring high precision and stability

Frequently Asked Questions

What is the difference between fused silica and K9 silver mirrors?
Fused silica has much lower thermal expansion, higher thermal stability and higher laser damage threshold, making it better for high-precision and high-power laser systems. K9 is more cost-effective for general applications.
Can these mirrors withstand high-power laser irradiation?
Yes, the fused silica substrate and protective silver coating provide a high laser damage threshold, suitable for industrial and scientific laser systems.
What is the difference between protected silver and enhanced silver coatings?
Protected silver coatings feature a single protective layer for general use, while enhanced silver coatings use multi-layer dielectric overcoats to boost reflectivity in specific wavelength ranges (e.g., NIR) and improve durability.

Got more questions? Use the inquiry form to ask the supplier directly.
