Description
Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Clear Aperture >90%
Flatness Refer to below list
Surface Quality 60/40 scratch and dig
Coating Metal coating on one surface, rear surface ground or inspection polished
Enhanced Aluminum: Ravg>90%@400-700nm
Protected Aluminum: Ravg>87%@400-1200nm
Protected Silver: Ravg>95%@400-12000nm
Protected Gold: Ravg>98%@2000-12000nm
Damage Threshold >1J/cm2, 20ns, 20Hz, @1064nm

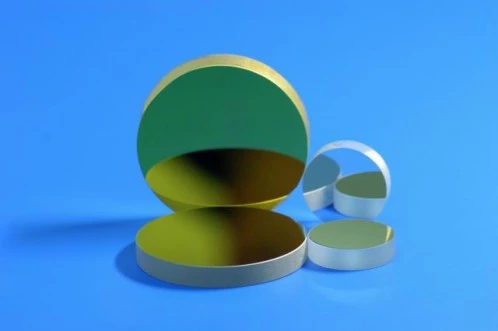

Metal Coated Flat Mirror
Specifications
| Reflective Coating: | Protected Aluminum, Protected Silver, Protected Gold |
|---|---|
| Substrate: | BK7, Fused Silica, UV Fused Silica |
| Average Reflectance: | 90 % |
| Wavelength Range: | 400 – 12000 nm |
| Surface Flatness: | lambda/4 |
| Surface Quality: | 60-40 scratch-dig |
| Diameter: | 25.4 mm |
| Thickness: | 3 mm |
| Shape: | Round, Square, Rectangle, Ellipse, Custom |
Download Data Sheet
Frequently Asked Questions
What is the damage threshold of the Metal Coated Flat Mirror?
The damage threshold of the Metal Coated Flat Mirror is greater than 1J/cm2, 20ns, 20Hz, @1064nm.
What is the surface quality of the Metal Coated Flat Mirror?
The surface quality of the Metal Coated Flat Mirror is 60/40 scratch and dig.
What is the dimension tolerance of the Metal Coated Flat Mirror?
The dimension tolerance of the Metal Coated Flat Mirror is +0.0/-0.2mm.
What is the clear aperture of the Metal Coated Flat Mirror?
The clear aperture of the Metal Coated Flat Mirror is greater than 90%.
What is the thickness tolerance of the Metal Coated Flat Mirror?
The thickness tolerance of the Metal Coated Flat Mirror is ±0.2mm.
