Description
High-Efficiency Coatings: Al+MgF2 coatings for superior broadband UV and VUV reflectance
Optimized Wavelengths: Available coatings optimized for reflectance at 120 nm, 160 nm, and 190 nm
Industry Standard: Sets the benchmark for broadband UV and VUV reflectance with over four decades of expertise
Exceptional Performance: Ensures high reflectance down to 120 nm for improved light throughput
Diverse Applications: Ideal for DUV spectrophotometers, ellipsometry, VUV/UV-based analytical instruments, ICP spectrometers, and aerospace applications

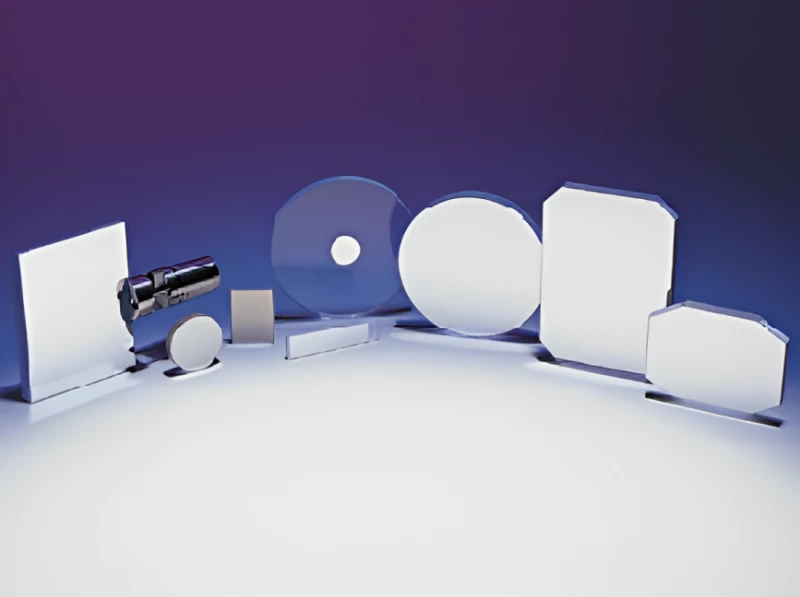

Al+MgF2 Broadband Mirror 160nm H1600-2D-MB (2.0" Diameter)
Specifications
Reflective Coating: | UV-Enhanced Aluminum |
---|---|
Substrate: | Metallic |

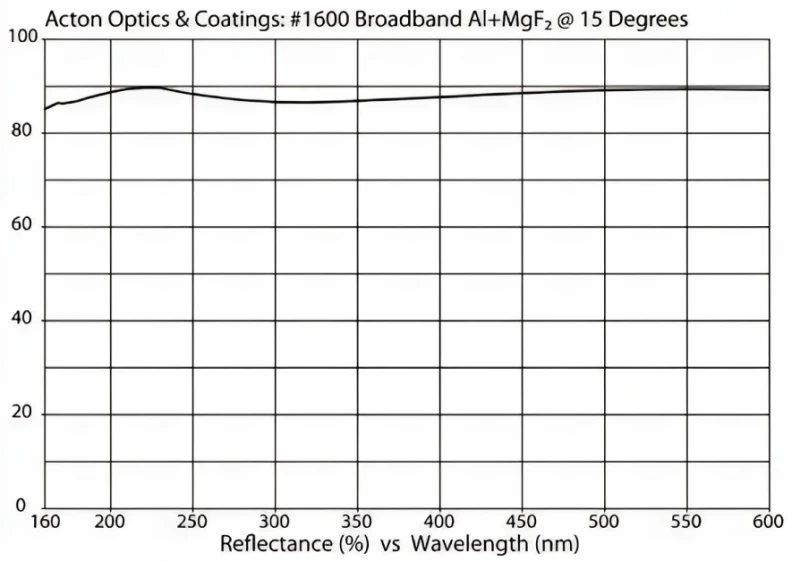

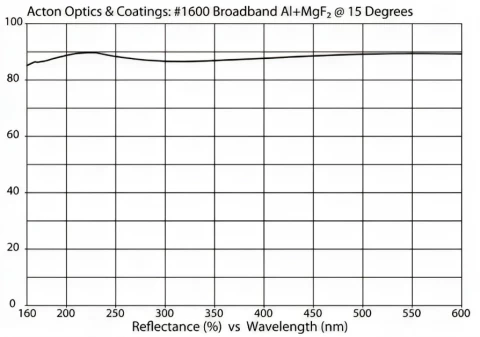

Average Reflectance: | 87 % |
Wavelength Range: | 160 – 600 nm |
Surface Flatness: | Custom |
Surface Quality: | Custom |
Diameter: | 50.8 mm |
Thickness: | 9.53 mm |
Shape: | Round |
Features
- High-Efficiency Coatings: Al+MgF2 coatings for superior broadband UV and VUV reflectance
- Optimized Wavelengths: Available coatings optimized for reflectance at 120 nm, 160 nm, and 190 nm
- Industry Standard: Sets the benchmark for broadband UV and VUV reflectance with over four decades of expertise
- Exceptional Performance: Ensures high reflectance down to 120 nm for improved light throughput
- Diverse Applications: Ideal for DUV spectrophotometers, ellipsometry, VUV/UV-based analytical instruments, ICP spectrometers, and aerospace applications
Applications
- DUV Spectrophotometers: Ensure precise measurements in deep ultraviolet spectrophotometry
- Ellipsometry: Ideal for ellipsometric studies in a broad UV and VUV range
- Analytical Instrumentation: Enhance the performance of VUV/UV-based analytical instruments
- ICP Spectrometers: Improve spectral analysis in inductively coupled plasma spectrometry
- Aerospace Applications: Broadband mirrors support various aerospace applications demanding exceptional reflectance
