Description

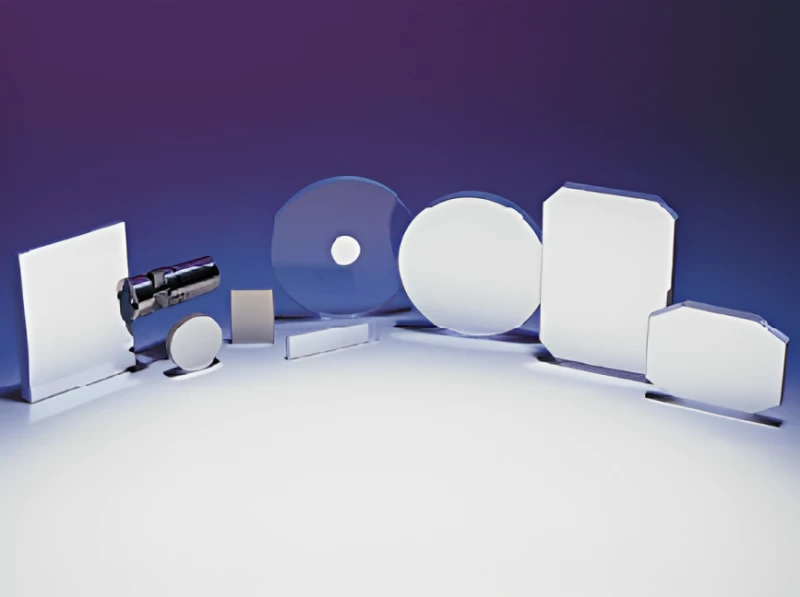

Acton's Al+MgF2 Broadband Mirrors are engineered with high-efficiency coatings, setting the industry standard for broadband UV and VUV reflectance. These mirrors offer exceptional reflectance down to 120 nm, ensuring excellent performance throughout the visible and near-infrared ranges.
Available in optimized coatings for 120 nm, 160 nm, and 190 nm, these mirrors enhance light throughput in diverse applications, including DUV spectrophotometers, ellipsometry, VUV/UV-based analytical instrumentation, ICP spectrometers, and aerospace applications.
Al+MgF2 Broadband Mirror 120nm H1200-1D-MB (1.0" Diameter)
Specifications
Reflective Coating: | UV-Enhanced Aluminum |
---|---|
Substrate: | Metallic |

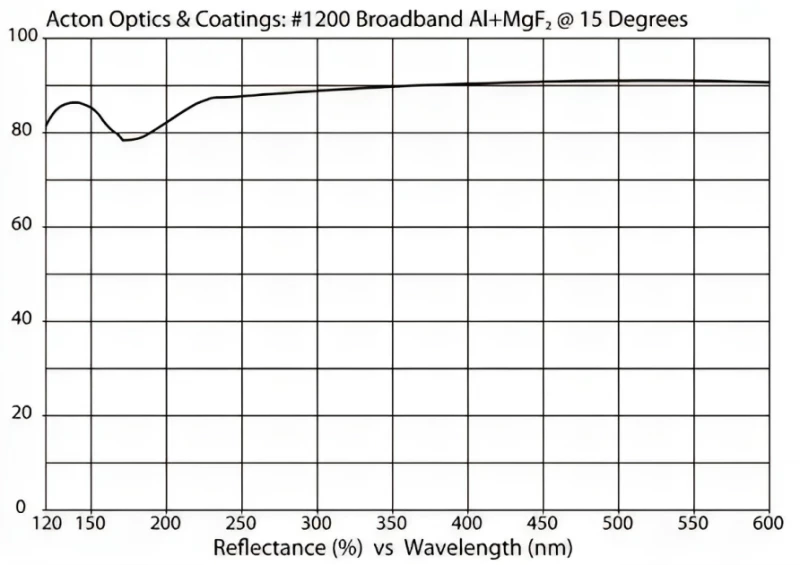

Average Reflectance: | 85 % |
Wavelength Range: | 120 – 600 nm |
Surface Flatness: | Custom |
Surface Quality: | Custom |
Diameter: | 25.4 mm |
Thickness: | 6.35 mm |
Shape: | Round |
Features
- High-Efficiency Coatings: Al+MgF2 coatings for superior broadband UV and VUV reflectance
- Optimized Wavelengths: Available coatings optimized for reflectance at 120 nm, 160 nm, and 190 nm
- Industry Standard: Sets the benchmark for broadband UV and VUV reflectance with over four decades of expertise
- Exceptional Performance: Ensures high reflectance down to 120 nm for improved light throughput
- Diverse Applications: Ideal for DUV spectrophotometers, ellipsometry, VUV/UV-based analytical instruments, ICP spectrometers, and aerospace applications
Applications
- DUV Spectrophotometers: Ensure precise measurements in deep ultraviolet spectrophotometry
- Ellipsometry: Ideal for ellipsometric studies in a broad UV and VUV range
- Analytical Instrumentation: Enhance the performance of VUV/UV-based analytical instruments
- ICP Spectrometers: Improve spectral analysis in inductively coupled plasma spectrometry
- Aerospace Applications: Broadband mirrors support various aerospace applications demanding exceptional reflectance
