Description
The OPTOMAN PP-UVFS-25.4-6.35-LLM285 is a premium ion beam sputtered (IBS) laser mirror engineered for high-performance laser communication and near-infrared optical systems operating at 1550 nm. Manufactured on a precision UV fused silica substrate, this mirror combines exceptional reflectivity, outstanding surface quality, and excellent wavefront preservation to support demanding photonics applications.
Designed for operation at a 45° angle of incidence, the mirror provides reflectance exceeding 99.95% for s-polarization and 99.9% for p-polarization, minimizing optical losses while maintaining excellent beam quality. Precision polishing, tight dimensional tolerances, and high-quality IBS coatings make this optic suitable for research laboratories, industrial laser systems, free-space optical communication, and other applications where stable optical performance and long-term reliability are essential. Product specifications include a 25.4 mm diameter, 6.35 mm thickness, UV fused silica substrate, and high-precision optical finish.

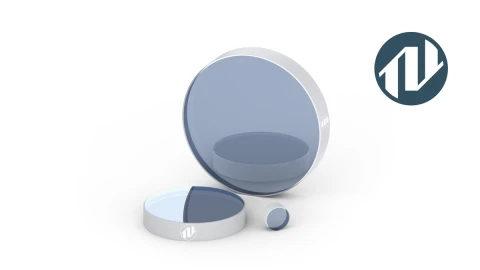

PP-UVFS-25.4-6.35-LLM285 1550 nm Laser Mirror
Specifications
| Substrate Material: | UV Fused Silica |
|---|---|
| Diameter: | 25.4 mm |
| Thickness: | 6.35 mm |
| Wavelength Range: | 1550 – 1550 nm |
| Angle Of Incidence (AOI): | 45 – 45 deg |
| Surface Quality, S1 (scratch-dig): | 20-10 |
| Surface Quality, S2 (scratch-dig): | Inspection Polished |
| Surface Flatness Over CA, S1 (@633 Nm Or Per Manufacturer): | Lambda/8 |
| Surface Flatness Over CA, S2 (@633 Nm Or Per Manufacturer): | Lambda/10 |
| Parallelism: | 0.17 arcmin |
| S1 Surface: | Coated |
| S2 Surface: | Uncoated |
| Reflectivity (HRs @ AOI, @ Peak Wavelength): | 99.95 % |
| Reflectivity (HRp @ AOI, @ Peak Wavelength): | 99.9 % |
| Manufacturer Part Number (MPN): | PP-UVFS-25.4-6.35-LLM285 |
| FindLight SKU: | FL-24536 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Manufacturer Part Number: PP-UVFS-25.4-6.35-LLM285
- Optimized for 1550 nm laser wavelength at 45° angle of incidence
- High-reflectivity IBS coating with >99.95% (s-pol) and >99.9% (p-pol) reflectance
- Precision UV fused silica (Corning 7980 0F) substrate
- 25.4 mm diameter and 6.35 mm thickness for compatibility with standard optomechanical mounts
- Surface quality of 20-10 scratch-dig for reduced scattering
- Surface flatness up to λ/10 @ 633 nm over the specified clear aperture
- Parallelism of 10 arcsec for excellent beam alignment
- Protective chamfers and precision polishing for enhanced durability and handling
- Suitable for demanding laser communication and precision photonics systems
Applications
- Free-space optical (FSO) communication systems
- Fiber optic and laser communication research
- Near-infrared beam steering and routing
- Precision laser instrumentation
- Optical test and measurement equipment
- Telecom wavelength optical setups
- Research laboratories and photonics development
- Industrial laser systems
- Optical alignment benches
- High-performance scientific optical assemblies
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9001.90.6000 |
| Estimated US Tariff: | 10% |
Frequently Asked Questions
What wavelength is this laser mirror designed for?
Why is ion beam sputtering (IBS) coating beneficial?
What angle of incidence is recommended for optimal performance?
What substrate material is used?
Which applications benefit most from this mirror?
Got more questions? Use the inquiry form to ask the supplier directly.
