Beamsplitter Cube - BSPN1-5-488nm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

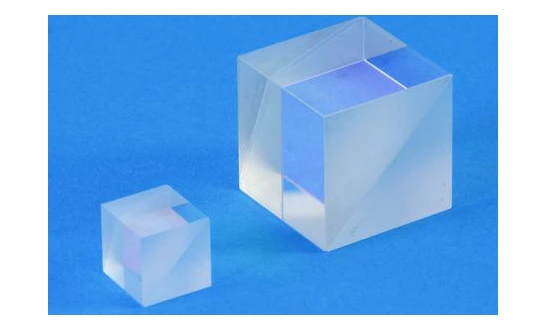

Polarization Beamsplitter Cubes are an essential component in optical systems, designed to split a beam of light into two separate beams with orthogonal polarizations. These beamsplitters are crafted using two complementary prisms, ensuring that the output beam parallel to the input is p-polarized, while the orthogonal output beam is s-polarized. This precise separation of polarizations makes them invaluable in various scientific and industrial applications where light manipulation is crucial.
Constructed from high-quality BK-7 grade A optical glass, these beamsplitter cubes are available in a range of dimensions from 3.2mm to 50.8mm, with a dimensional tolerance of ±0.2mm. The angular tolerance is maintained at ±3 arc minutes, ensuring high precision in beam deviation, which is also kept within 3 arc minutes. The surface quality is rated at 60/40 for scratch and dig, reflecting the meticulous craftsmanship involved in their production.
The polarization beamsplitter coating is applied on the hypotenuse, enhancing the device's efficiency. The principal transmittance and reflectance are optimized, with Tp>95% and Ts<1% for transmittance, and Rs>99% and Rp<5% for reflectance. These specifications ensure that the beamsplitter performs exceptionally well across a broad wavelength range of 226nm to 2300nm. Additionally, an anti-reflective coating is applied to four faces, with reflectance kept below 0.25% per face, further improving optical performance.
At Tower Optical Corporation, we understand that each project may have unique requirements. We offer custom versions of all our products, including these beamsplitter cubes. Whether you need a specific size or wavelength range, our team is ready to provide a tailored solution. Contact us with your drawings or specifications, and we will be happy to provide a quotation that meets your precise needs.
Beamsplitter Cube - BSPN1-5-488nm
Specifications |
|
|---|---|
| Material: | N-BK7 |
| Wavelength Range: | 488 – 488 nm |
| Max Beam Deviation: | 3 arcmin |

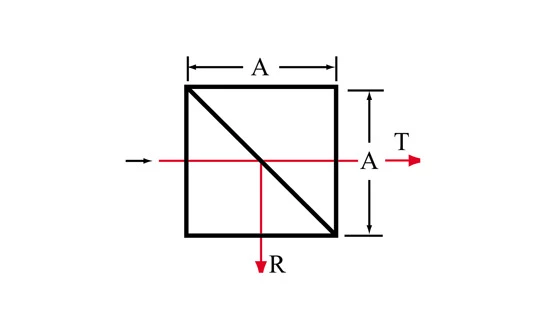

| Size (Linear Dimension): | 5 mm |
| Surface Quality/Scratch & Dig: | 60/40 |
| Extinction Ratio: | 100:1 |
| Principal Transmittance: | Tp>95% and Ts<1% |
| Principal Reflectance: | Rs>99% and Rp<5% |
Features
- High-Quality Material: Made from BK-7 grade A optical glass, ensuring superior performance and durability.
- Precision Dimensions: Available in a range of sizes from 3.2mm to 50.8mm with a dimensional tolerance of ±0.2mm.
- Accurate Angular Tolerance: Maintains an angular tolerance of ±3 arc minutes for precise optical applications.
- Excellent Surface Quality: Features a surface quality of 60/40 scratch and dig, providing clear and accurate results.
- Minimal Beam Deviation: Beam deviation is kept at 3 arc minutes, ensuring high precision in beam splitting.
- High Extinction Ratio: Offers an extinction ratio of >100:1, optimizing the separation of polarized light.
- Superior Transmittance and Reflectance: Principal transmittance of Tp>95% and Ts<1%, with principal reflectance of Rs>99% and Rp<5%.
- Wide Wavelength Range: Operates effectively across a wavelength range of 226nm to 2300nm.
- Advanced Coatings: Polarization beamsplitter coating on the hypotenuse and AR coating with R<0.25% per face for 4 faces.
- Customizable Options: Custom versions available upon request, tailored to specific requirements.
- Next Day Shipping: Available for most wavelengths, ensuring quick delivery for urgent needs.
- Volume Discounts: Discounts offered on volume orders of 10 pieces or more, providing cost-effective solutions for bulk purchases.
Applications
- Optical Systems: Ideal for use in optical systems where polarization separation is required.
- Laser Applications: Suitable for laser applications due to high extinction ratio and specific wavelength compatibility.
- Imaging Systems: Used in imaging systems to separate polarized light components, enhancing image quality.
- Telecommunications: Applicable in telecommunications for managing polarized light in fiber optic systems.
- Scientific Research: Utilized in laboratories for experiments requiring precise polarization control.
- Industrial Inspection: Employed in industrial settings for inspection systems that rely on polarized light.
- Custom Optical Solutions: Can be customized for specific optical solutions based on client requirements.
Frequently Asked Questions
Beamsplitter Cubes are optical components that split an incident beam of light into two beams of different polarization.
The output beam that is parallel to the input beam is p-polarized, while the orthogonal output beam is s-polarized.
The wavelength range of the Beamsplitter Cubes is 226nm to 2300nm.
Yes, custom options are available from the manufacturer.
The pricing for Beamsplitter Cubes varies based on the size and wavelength range. The prices range from $148 to $203.
