Beamsplitter Cube: BSPN1-15 514nm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

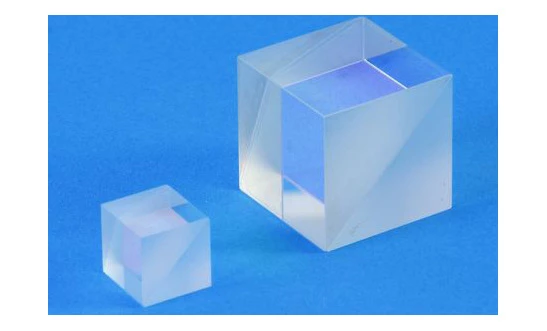

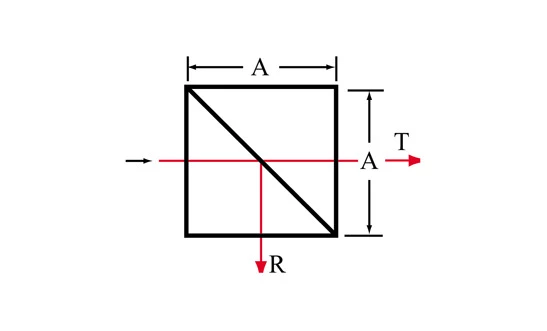

Polarization Beamsplitter Cubes are an essential component in optical systems, designed to split a beam of light into two separate beams with distinct polarization states. These beamsplitters utilize two complementary prisms to achieve this effect, ensuring that the output beam parallel to the input is p-polarized, while the orthogonal output beam is s-polarized. This precise separation of polarization states makes these cubes invaluable in a variety of optical applications.
Constructed from high-quality BK-7 grade A optical glass, these beamsplitter cubes are available in a range of dimensions from 3.2mm to 50.8mm, with a dimensional tolerance of ±0.2mm. The angular tolerance is maintained at ±3 arc minutes, ensuring high precision in beam deviation, which is also kept within 3 arc minutes. The surface quality is rated at 60/40 for scratch and dig, providing a smooth and clear optical path.
The polarization beamsplitter coating is applied on the hypotenuse, enhancing the performance of the cube by achieving an extinction ratio greater than 100:1. The principal transmittance is optimized with Tp>95% and Ts<1%, while the principal reflectance is Rs>99% and Rp<5%. These specifications ensure that the beamsplitter performs efficiently across a wide wavelength range of 226nm to 2300nm. Additionally, an anti-reflective coating is applied to each of the four faces, reducing reflection to less than 0.25% per face.
At Tower Optical Corporation, we understand that quality is not expensive, it is priceless. We offer next-day shipping for most wavelengths and provide discounts on volume orders of 10 pieces or more. If you have specific requirements, we are more than happy to provide a custom quote.
Beamsplitter Cube: BSPN1-15 514nm
Specifications |
|
|---|---|
| Material: | N-BK7 |
| Wavelength Range: | 226 – 2300 nm |
| Max Beam Deviation: | 3 arcmin |
| Size (Linear Dimension): | 15 mm |
| Surface Quality/Scratch & Dig: | 60/40 |
| Extinction Ratio: | 100:1 |
| Principal Transmittance: | Tp>95% and Ts<1% |
| Principal Reflectance: | Rs>99% and Rp<5% |
Features
- High-Quality Material: Made from BK-7 grade A optical glass, ensuring durability and precision.
- Wide Dimension Range: Available in sizes from 3.2mm to 50.8mm to suit various applications.
- Precision Tolerances: Dimensional tolerance of ±0.2mm and angular tolerance of ±3 arc minutes for accurate performance.
- Superior Surface Quality: Scratch and dig specification of 60/40 for optimal clarity.
- Minimal Beam Deviation: Beam deviation of only 3 arc minutes.
- High Extinction Ratio: Greater than 100:1 for effective polarization separation.
- Excellent Transmittance and Reflectance: Principal transmittance of Tp>95% and Ts<1%, with principal reflectance of Rs>99% and Rp<5%.
- Broad Wavelength Range: Operates effectively from 226nm to 2300nm.
- Advanced Coatings: Polarization beamsplitter coating on the hypotenuse and AR coating with R<0.25% per face for 4 faces.
- Customization Available: Custom versions available upon request to meet specific requirements.
- Next Day Shipping: Available for most wavelengths, ensuring quick delivery.
- Volume Discounts: Discounts offered on volume orders of 10 pieces or more.
Applications
- Optical Systems: Ideal for use in optical systems requiring polarization separation.
- Laser Applications: Suitable for laser applications where beam splitting is necessary.
- Telecommunications: Used in telecommunications for managing signal paths and polarization.
- Scientific Research: Essential in scientific experiments that require precise beam control and polarization analysis.
- Imaging Systems: Utilized in imaging systems to enhance contrast and clarity by separating polarized light.
- Microscopy: Applied in microscopy to improve image quality by controlling light polarization.
- Industrial Applications: Used in various industrial applications where light manipulation is critical.
- Custom Optical Solutions: Can be customized for specific optical solutions and requirements.
Frequently Asked Questions
The BSPN1-15 514nm Beamsplitter Cube is a polarization beamsplitter cube that uses two complementary prisms to split the input beam into two output beams, one p-polarized and the other s-polarized.
The wavelength range of the BSPN1-15 514nm Beamsplitter Cube is 226nm to 2300nm.
The angular tolerance of the BSPN1-15 514nm Beamsplitter Cube is ±3 arc minutes.
Yes, you can contact the manufacturer directly for custom orders.
The pricing of the BSPN1-15 514nm Beamsplitter Cube depends on the size and wavelength range. You can find the pricing information on the product description page.
