Beamsplitter Cube - BSPN1-10 780nm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
Polarization Beamsplitter Cubes are an essential component for various optical applications, designed to efficiently split light beams based on polarization. These beamsplitters utilize two complementary prisms to achieve their function. The output beam that remains parallel to the input beam is p-polarized, while the orthogonal output beam is s-polarized. This precise separation of light beams makes them invaluable in scientific and industrial settings where polarization control is critical.
Crafted from high-quality BK-7 grade A optical glass, these beamsplitter cubes offer a dimension range from 3.2mm to 50.8mm, ensuring versatility for different optical setups. The meticulous construction allows for a dimensional tolerance of ±0.2mm and an angular tolerance of ±3 arc minutes, guaranteeing high precision in beam splitting tasks. The surface quality is maintained at a 60/40 scratch and dig specification, ensuring minimal interference in optical paths.
With a beam deviation of just 3 arc minutes and an extinction ratio greater than 100:1, these beamsplitters provide exceptional performance. The principal transmittance and reflectance values are optimized, with Tp>95% and Ts<1%, and Rs>99% and Rp<5%, respectively. The wavelength range spans from 226nm to 2300nm, making these beamsplitters suitable for a wide array of applications. Additionally, the polarization beamsplitter coating is applied on the hypotenuse, and an anti-reflective coating ensures R<0.25% per face for all four faces, enhancing the overall efficiency and reliability of the product.
For those with specific requirements, Tower Optical Corporation offers custom versions of these beamsplitters. By sending your drawings or specifications, you can receive a tailored quotation to meet your unique needs. With a commitment to quality and precision, these polarization beamsplitter cubes are a priceless addition to any optical system.

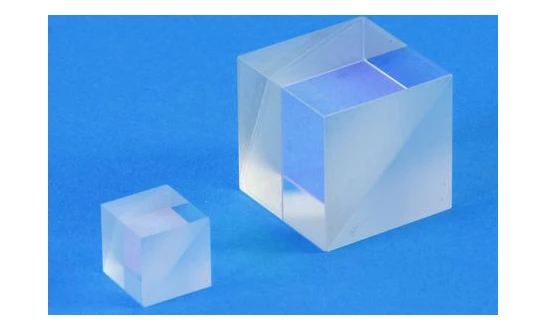

Beamsplitter Cube - BSPN1-10 780nm
Specifications |
|
|---|---|
| Material: | N-BK7 |
| Wavelength Range: | 780 – 780 nm |
| Max Beam Deviation: | 3 arcmin |
| Size (Linear Dimension): | 10 mm |
| Surface Quality/Scratch & Dig: | 60/40 |
| Extinction Ratio: | 100:1 |
| Principal Transmittance: | Tp>95% and Ts<1% |
| Principal Reflectance: | Rs>99% and Rp<5% |
Features
- High-Quality Material: Made from BK-7 grade A optical glass, ensuring durability and superior optical performance.
- Precision Dimensions: Available in a range of sizes from 3.2mm to 50.8mm with a dimensional tolerance of ±0.2mm.
- Accurate Angular Tolerance: Maintains an angular tolerance of ±3 arc minutes for precise applications.
- Excellent Surface Quality: Features a surface quality of 60/40 scratch and dig, ensuring minimal imperfections.
- Minimal Beam Deviation: Beam deviation is kept at 3 arc minutes for accurate beam splitting.
- High Extinction Ratio: Offers an extinction ratio greater than 100:1 for effective polarization separation.
- Superior Transmittance and Reflectance: Principal transmittance of Tp>95% and Ts<1%, with principal reflectance of Rs>99% and Rp<5%.
- Wide Wavelength Range: Operates effectively across a wavelength range of 226nm to 2300nm.
- Advanced Coatings: Polarization beamsplitter coating on the hypotenuse and AR coating with R<0.25% per face for 4 faces.
- Customizable Options: Custom versions available upon request to meet specific requirements.
- Next Day Shipping: Available for most wavelengths, ensuring quick delivery.
- Volume Discounts: Discounts offered on volume orders of 10 pieces or more.
Applications
- Optical Instrumentation: Used in various optical instruments for splitting polarized light beams.
- Laser Systems: Essential in laser systems for directing and manipulating laser beams.
- Telecommunications: Utilized in fiber optic communication systems for signal routing and processing.
- Scientific Research: Applied in research laboratories for experiments requiring precise light manipulation.
- Medical Devices: Incorporated in medical imaging and diagnostic equipment for enhanced imaging capabilities.
- Photography and Imaging: Used in cameras and imaging devices to improve image quality by controlling light polarization.
- Industrial Applications: Employed in industrial settings for quality control and material inspection using polarized light.
- Holography: Essential in creating and viewing holograms by managing light polarization.
- Display Technology: Used in advanced display systems to enhance image clarity and color accuracy.
- Microscopy: Enhances contrast and resolution in microscopes by controlling light polarization.
Frequently Asked Questions
The Beamsplitter Cube - BSPN1-10 780nm is a polarization beamsplitter cube used to split a beam of light into two orthogonal, polarized beams.
The angular tolerance of the Beamsplitter Cube - BSPN1-10 780nm is ±3 arc minutes.
The wavelength range of the Beamsplitter Cube - BSPN1-10 780nm is 226nm to 2300nm.
Yes, custom options are available for the Beamsplitter Cube - BSPN1-10 780nm.
The price of the Beamsplitter Cube - BSPN1-10 780nm is $148.
