Double Pass Optic Integrated AOM Module for Quantum optics Cold Atoms

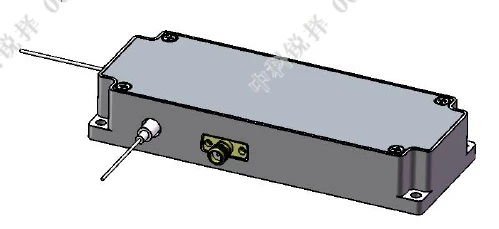

Name: Double Pass Optic Integrated AOM Module for Quantum optics Cold Atoms
Brand: CSRayzer Optical Technology
Availability: InStock

Description

Using acousto-optic modulator (AOM) to control laser frequency, switch light and generate modulation sideband is a common technical means, which is often used in optical systems of quantum optics, cold atoms, ion traps, quantum calculation and quantum precision measurement.

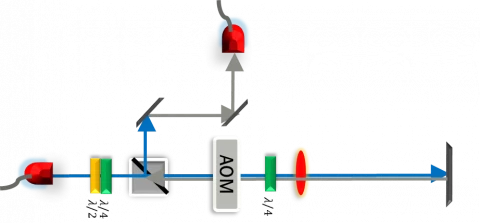

In a Double Pass acousto-optic modulation the laser passes through AOM twice, and the +1st order diffracted light passes through AOM twice to obtain a double modulated laser signal.

Optical fiber coupled acousto-optic Double Pass integrated module can realize double modulation of sum and arbitrary laser, and output double modulated Double Pass laser signal. The input and output are optical fiber coupled output, and the wavelength can be customized at 400-1100nm.

Specifications

Operational Wavelength Range:	400 – 1100 nm
Acoustic Mode:	Transverse
Operating Frequency:	80 MHz
Insertion Loss:	≤3.5 dB
Polarization Extinction Ratio:	≥25 dB
Extinction Ratio:	≥50 dB

Download Data Sheet

Features

High polarization stability

High coupling efficiency

Miniaturized design, small size

Modular design, easy integration

Strong environmental stability

Applications

Cold atomic system

Quantum optics

Lon trap system

Quantum precision measurement system

Quantum computing

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

CSRayzer Optical Technology

On FindLight:

since 2020

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the Double Pass Optic Integrated AOM Module?

The Double Pass Optic Integrated AOM Module is a device that uses an acousto-optic modulator (AOM) to control laser frequency, switch light, and generate modulation sidebands. It is used in optical systems for quantum optics, cold atoms, ion traps, quantum calculation, and quantum precision measurement.

How does the double pass acousto-optic modulation work?

In double pass acousto-optic modulation, the laser passes through the AOM twice. The +1st order diffracted light passes through the AOM twice to obtain a double modulated laser signal. This setup allows for double modulation of sum and arbitrary laser signals.

What are the key features of the Double Pass Optic Integrated AOM Module?

The key features include high polarization stability, high coupling efficiency, a miniaturized design for small size, modular design for easy integration, and strong environmental stability.

What applications can the Double Pass Optic Integrated AOM Module be used for?

It can be used in cold atomic systems, quantum optics, ion trap systems, quantum precision measurement systems, and quantum computing.

What is the wavelength range that can be customized for the module?

The wavelength can be customized between 400 nm and 1100 nm.

What is the polarization extinction ratio for the module?

The polarization extinction ratio is typically ≥20 dB, with some models offering ≥22 dB or ≥25 dB.

What is the insertion loss for the Double Pass Optic Integrated AOM Module?

The insertion loss for the module is typically ≤3.5 dB, with some models offering ≤3.0 dB or ≤2.5 dB.
