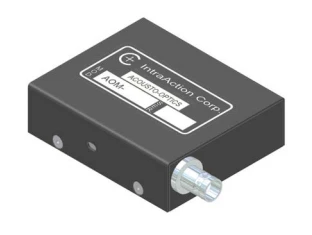

AOM-602AF1 ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER
Description
MODEL AOM-AF1 SERIES ACOUSTO-OPTIC MODULATOR / FREQUENCY SHIFTER.
AOM-602AF1 ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER
Specifications |
|
|---|---|
| Center Wavelength: | 570 nm |
| Operational Wavelength Range: | 440-700nm |
| Acoustic Mode: | Transverse, Longitudinal |
| Operating Frequency: | 60 MHz |
| Light Polarization: | Random, Linear, Circular, Elliptical |
| Optical Power Density: | 50 KW/cm2 |
| Deflection Angle: | 9.6 mrad |
Features
HIGH OPTICAL POWER CAPABILITY
INTENSITY MODULATION
OPTICAL FREQUENCY SHIFTING
LASER BEAM DEFLECTION
HIGH RELIABILITY
EXCELLENT TEMPERATURE STABILITY
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
External Vendor
Claim IntraAction Corp Page to edit and add data
Frequently Asked Questions
The AOM-602AF1 is a series of Acousto-Optic Modulator/Frequency Shifter that can be used for high optical power capability, intensity modulation, optical frequency shifting, laser beam deflection, high reliability, and excellent temperature stability.
The drive power of the AOM-602AF1 is 2 Watts (633 nm).
The modulation bandwidth of the AOM-602AF1 is 2.7 MHz (1.0 mm beam diameter) and 1.8 MHz (1.5 mm beam diameter).
The optical wavelength range of the AOM-602AF1 is 440 to 700 nm.
The size of the AOM-602AF1 (less connector) is 0.88 H x 2.94 D x 2.46 W inches or 22.4 H x 74.7 D x 62.5 W mm.
