Description

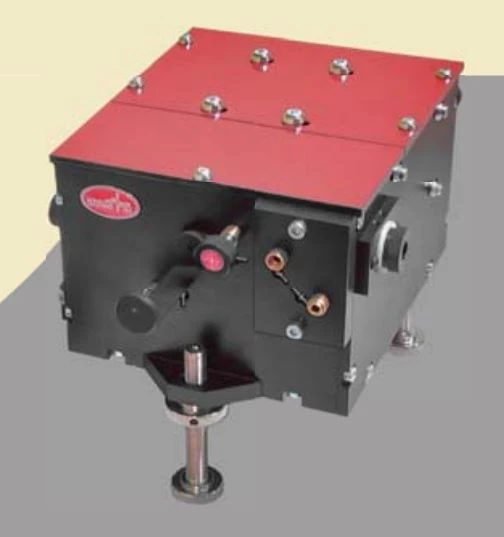

The Reef-RTD real-time autocorrelator is an advanced tool designed for the precise measurement of femtosecond and picosecond pulse durations. With a variety of models available, this autocorrelator caters to different wavelength ranges, ensuring flexibility for diverse experimental needs. The Reef-RTDM model stands out by combining multiple ranges through the use of three interchangeable photodetectors and optics, offering a comprehensive solution for those requiring extensive wavelength coverage. For specialized requirements, two separate ranges can be accommodated upon request, making this device adaptable to a multitude of laser systems.
The device is user-friendly and integrates seamlessly with a PC via a USB interface, supporting Windows operating systems. It comes equipped with sophisticated software that allows users to visualize, store, and export pulse duration data in .txt or .dat formats. Real-time calculations of the autocorrelation function and the full width at half maximum (FWHM) pulse duration in femtoseconds are displayed, with Gaussian or sech2 fitting options available. Additionally, users can observe the intensity function and utilize the statistical viewer feature to compare data from different pulse measurements.
Compact and efficient, the Reef-RTD's small dimensions (132x123x118 mm) make it an ideal fit for experimental setups with limited space. An optional fiber input enhances its versatility, allowing for quick and reliable pulse duration measurements in various optical fibers while maintaining its free-space measurement capabilities. This makes the Reef-RTD an indispensable tool for researchers and professionals working with femtosecond and picosecond oscillators.
Reef RDTR Scanning Autocorrelator
Specifications |
|
|---|---|
| Device Type: | Autocorrelator |
| Measurable Pulse Width: | 10 – 6000 fs |
| Wavelength Range: | 1300 – 2000 nm |
| Input Polarization: | Horizontal, Vertical |
| PC Connection: | USB |
| Necessary Equipment: | PC with Windows OS or oscilloscope |
| Linear Distortion, %: | < 1% |
| Input Repetition Rate: | > 8 kHz |
Features
- Wide Pulse Duration Range: Measures pulse durations from 10 femtoseconds to 6 picoseconds, ideal for femtosecond and picosecond oscillators.
- Multiple Wavelength Coverage: Available models cover wavelength ranges from 450 nm to 2000 nm, with the Reef-RTDM model offering interchangeable optics for combined ranges.
- USB Connectivity: Easily connect to a PC with Windows OS for seamless data acquisition and control.
- Comprehensive Software Suite: Includes tools for data visualization, storage, export (.txt or .dat), and real-time calculation of the autocorrelation function and FWHM pulse duration.
- Advanced Fitting Options: Supports Gaussian or sech2 fitting for detailed pulse analysis.
- Compact Design: With dimensions of 132x123x118 mm, it fits perfectly into setups with limited space.
- Optional Fiber Input: Provides fast and reliable pulse duration measurements in various optical fibers, while maintaining free-space measurement capability.
- High Sensitivity: Operates with input repetition rates greater than 8 kHz and sensitivity of 100 mW.
- Low Linear Distortion: Less than 1% linear distortion ensures high precision measurements.
- Flexible Polarization: Supports linear horizontal input polarization, with vertical available upon request.
- External Photodetector Option: Enhances measurement versatility.
- All-Reflective Optics: Ensures high-quality measurements with minimal optical aberrations.
- Fringe-Resolved Autocorrelation: Provides detailed analysis of pulse characteristics.
- Frictionless Movement: Ensures smooth and precise scanning with rates from 0.1 to 20 Hz.
- Statistical Viewer Feature: Allows comparison of data from multiple pulse measurements.
Applications
- Femtosecond and Picosecond Oscillator Monitoring: Provides accurate pulse duration analysis in lab and industrial lasers.
- Ultrafast Laser Diagnostics: Suitable for detailed characterization of short laser pulses.
- Fiber Laser Testing: Enables direct measurement of pulse durations in fiber systems with optional fiber input.
- R&D and Quality Control: Ideal for research labs and manufacturing environments requiring precise pulse characterization.
Frequently Asked Questions
The pulse duration range of the Reef-RTD Scanning Autocorrelator is 10-6000 fs.
The scanning rate of the Reef-RTD Scanning Autocorrelator is 0.1-20 Hz.
The sensitivity of the Reef-RTD Scanning Autocorrelator is 100 mW2.
The input polarization of the Reef-RTD Scanning Autocorrelator is linear horizontal (vertical upon request).
The necessary equipment for the Reef-RTD Scanning Autocorrelator is a PC with Windows OS or oscilloscope.
