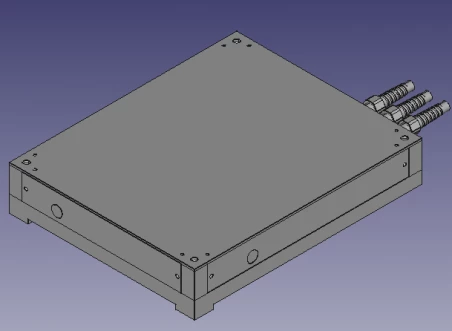

SkyAMP system LP 2000nm Ultra-fast Laser Amplifier

Specifications

Center Wavelength: 2000 nm
Repetition Rate: 1 – 80000 kHz
Pulse Energy: 1 mJ
Energy Stability (RMS): 1 %
Pulse Duration: 100 fs
Pointing Stability (RMS): 1 urad
Polarization: Unspecified
Spatial Mode (M^2): <1.3
Amplification Scheme: Multi-Pass
Average Output Power: up to 30 W
Average Input Power: as low as 0.1 W
Dimensions: 270 X 220 X 50 mm
Interface: USB
DC Power Supply: 36 V
Document icon Download Data Sheet Download icon

Features


  • Precision Measurements: Designed with exact dimensions for optimal fit and functionality: 57.00 mm, 30.70 mm, 52.00 mm, 69.00 mm, 30.70 mm, 220.00 mm, 270.00 mm, 200.02 mm, 250.00 mm, 65.65 mm, and 100.01 mm.

  • High-Quality Build: Crafted with durable materials to ensure longevity and reliability in various applications.

  • Versatile Applications: Suitable for a range of uses, thanks to its diverse sizing options.

  • Easy Installation: User-friendly design allows for quick and hassle-free setup.

  • Enhanced Performance: Engineered to deliver superior performance and efficiency.

  • Compact Design: Space-saving dimensions make it ideal for both small and large environments.

Applications


  • Spectroscopy & Sensing: Enhances signal strength for mid-infrared absorption and scattering studies.

  • Medical & Biomedical Systems: Supports 2 µm laser applications in diagnostics and treatment.

  • Materials Processing: Suitable for precision cutting, drilling, and marking in specialized materials.

  • Nonlinear Optics: Drives frequency conversion and supercontinuum generation at longer wavelengths.
