Description

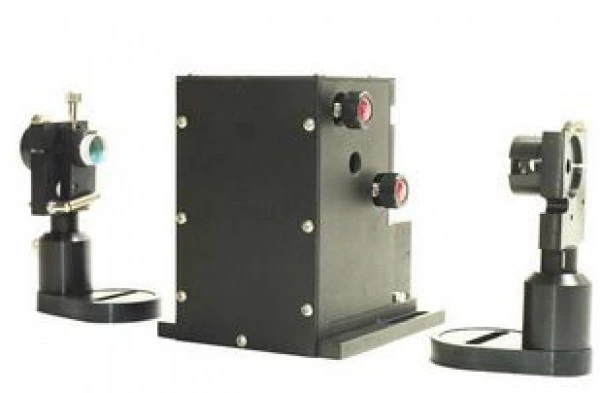

Pismo Pulse Pickers from Delmar Photonics are innovative electro-optical ultrafast shutters designed to selectively pick off pulses from the pulse train of femtosecond or picosecond lasers. These advanced pulse pickers offer exceptional control over the repetition rate of the pulse train, allowing users to isolate a single pulse at a fixed frequency. This capability significantly enhances the contrast of the signal, making it an invaluable tool in precision optical applications.
The Pismo Pulse Pickers are available as stand-alone devices, each equipped with a Pockels cell, synchronization unit, delay generator, and high voltage driver unit. The operation of these pulse pickers is based on the linear electro-optic effect, also known as the Pockels effect. This effect utilizes an applied electric field to induce birefringence in the Pockels cell, which is proportional to the electric field. The Pockels cells used in these devices are crafted from Deuterated Potassium Dihydrogen Phosphate (DKDP) crystal, a material renowned for its wide transparency range and high optical damage threshold.
In practical terms, a pulse picker is crucial for selecting single optical pulses of picosecond or femtosecond duration from a sequence of pulses. It plays a significant role in controlling femtosecond multipass and regenerative amplifiers. The Pismo Pulse Pickers are designed to deliver high efficiency and contrast ratio, ensuring reliable performance in demanding environments. Their rugged design makes them easy to install and align, providing a seamless user experience.
The Pismo control unit further enhances functionality by offering five output pulses with precise timing delays, which can be synchronized with various signals. This level of control is essential for applications requiring meticulous timing and synchronization, ensuring that the Pismo Pulse Pickers meet the highest standards of precision and reliability.
Pulse Picker Pismo, OG Series
Specifications |
|
|---|---|
| Pulse Width: | 4 |
Features
- Single Pulse Selection: Efficiently pick single pulses from a train of pulses, ideal for precision applications.
- Trigger Synchronization: Synchronize using external RF or optical signal triggers for enhanced control.
- Adjustable High Voltage Pulses: Features adjustable delay and amplitude for high voltage electrical pulses.
- Measurement Support: Includes two additional delayed pulses specifically for measurement purposes.
- Easy Installation and Alignment: Designed for straightforward setup and precise alignment.
- High Efficiency and Contrast Ratio: Offers superior efficiency and contrast for optimal performance.
- Rugged Design: Built to withstand demanding environments and ensure long-lasting durability.
Applications
- Single Pulse Selection: Pick out single optical pulses of picosecond or femtosecond duration from a pulse train.
- Control of Amplifiers: Used for controlling femtosecond multipass and regenerative amplifiers.
- Synchronization: External RF or optical signal trigger synchronization for precise timing.
- Adjustable High Voltage Pulses: High voltage electrical pulse with adjustable delay and amplitude.
- Measurement Capabilities: Two additional delayed pulses for measurement purposes.
- Efficiency and Contrast: High efficiency and contrast ratio for optimal performance.
- Easy Installation: Designed for easy installation and alignment.
- Rugged Design: Built to withstand demanding environments.
Frequently Asked Questions
The PISMO pulse picker is used to selectively pick off pulses from the pulse train of a femtosecond or picosecond laser.
The wavelength range that the PISMO pulse picker can operate in depends on the model.
The Pockels effect is the basis for the operation of the PISMO pulse picker. It is the linear electro-optic effect that occurs when an applied electric field produces a birefringence in the cell that is proportional to the electric field.
The technical data for the PISMO pulse picker includes output voltage, rise time, pulse width, jitter, trigger input, synch input, adjustable delay, synchro trigger pulses, power out, on/off power, and optical detector.
The crystal used in the PISMO pulse picker is a Deuterated Potassium Dihydrogen Phosphate (DKDP) crystal, which is known for its wide transparency range and high optical damage threshold.
