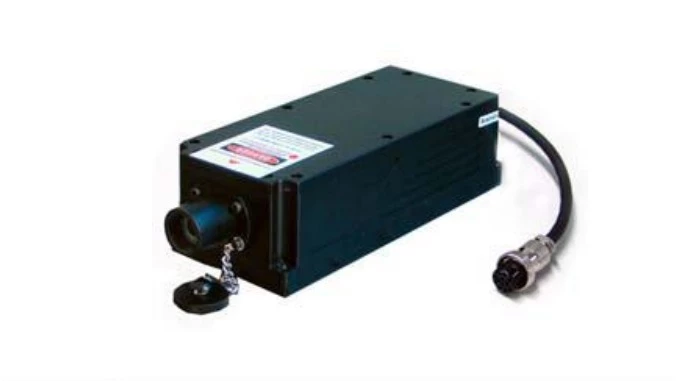

Thumbnail of Blue Frequency Stabilized Single Mode DPSS Laser FPYL-473-XXXT-SLM-FS photo 1

Description

The FPYL-473-XXXT-SLM-FS is a high-quality blue DPSS (Diode-Pumped Solid-State) laser with frequency stabilization and single-mode operation. It emits a stable and precise laser beam at a wavelength of 473nm, making it suitable for various applications that require highly coherent and low-noise laser light.

With excellent power stability, a compact design, and self-adjusting power supply, this laser provides reliable performance for demanding scientific, industrial, and research applications.

Blue Frequency Stabilized Single Mode DPSS Laser FPYL-473-XXXT-SLM-FS

Visit the FLC - Frankfurt Laser Company GmbH Store

Specifications

Wavelength: 473 nm
Max Output Power: 100 mW
Cooling Method: Other (not specified)
Tunability: Single Wavelength Tunable
Control Interface: Other (not specified)
Transverse Mode: TEM00
Power Stability (RMS, Over 4 Hours): <1 %
Warm-up Time: <10 minutes
M2 Factor: <1.2
Pectral Width (FWHM): <0.00001 nm
Coherence Length: >50 m
Frequency Shift (MHz, Over 8 Hours): <Ā±200
Frequency Shift With Temp. (MHz/Ā°C): <200
Beam Divergence (full Angle): Beam Divergence (full angle) mrad
Beam Diameter At The Aperture (1/eĀ²): <2.5 mm
Power Supply: 90 ā€“ 264 4VAC

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength of 473nm with ±1nm accuracy
  • Output power range of 1-100mW (to be specified)
  • Transverse Mode: TEM00
  • Longitudinal Mode: Single
  • Operating Mode: Continuous Wave (CW)
  • Power stability of less than 1% (RMS, over 4 hours)
  • Fast warm-up time of less than 10 minutes
  • M2 Factor of less than 1.2
  • Narrow spectral width (FWHM) of less than 0.00001nm
  • Coherence length greater than 50m
  • Frequency shift of less than ±200MHz over 8 hours
  • Frequency shift with temperature of less than 200MHz/°C
  • Beam divergence (full angle) of less than 1.2mrad
  • Beam diameter at the aperture (1/e²) of less than 2.5mm (typical 2.0mm)
  • Beam height from the base plate of 84.7mm (including heatsink)
  • High polarization ratio of greater than 100:1 (vertical) (horizontal optional)
  • Pointing stability after warm-up of less than 0.05mrad
  • Low noise of amplitude (RMS, 1Hz-20MHz) of less than 0.5%
  • Expected lifetime of 10,000 hours
  • Operating temperature range of 15°C to 35°C
  • Self-adjusting power supply with a voltage range of 90-264VAC

Applications

  • Holography
  • Interferometry
  • Optical trapping
  • Spectroscopy
  • Laser cooling
  • Metrology
  • Biomedical research
  • Semiconductor inspection
  • Laser-induced fluorescence
  • Laser scanning microscopy

Frequently Asked Questions

What is the advantage of using a single longitudinal mode laser system?
Single longitudinal mode laser systems offer higher spectral purity and narrower linewidths, making them ideal for applications that require high precision and accuracy.
What applications can the FPYL-473-XXXT-SLM-FS DPSS Laser be used for?
The FPYL-473-XXXT-SLM-FS DPSS Laser can be used in fluorescence and biomedical imaging, Raman spectroscopy and microscopy, lithography, and other applications.
What is the difference between the low power and high power laser systems?
The low power laser systems have a lower power output, while the high power laser systems have a higher power output.
What is the power output of the FPYL-473-XXXT-SLM-FS DPSS Laser?
The power output of the FPYL-473-XXXT-SLM-FS DPSS Laser varies depending on the model chosen.
What is the wavelength of the FPYL-473-XXXT-SLM-FS DPSS Laser?
The wavelength of the FPYL-473-XXXT-SLM-FS DPSS Laser is 473 nm.

Got more questions? Use the inquiry form to ask the supplier directly.
