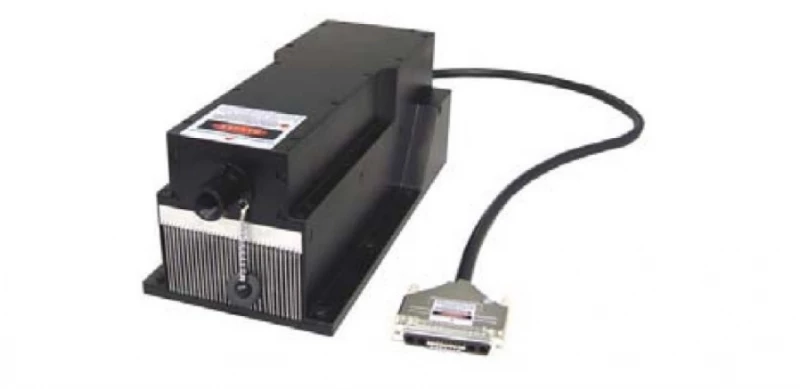

Thumbnail of Blue High Power DPSS Laser FPYL-457-XX.XW photo 1

Description

The FPYL-457-XX.XW is a high-power blue DPSS (Diode-Pumped Solid-State) laser designed for demanding applications that require a stable and powerful laser beam at a wavelength of 457nm.

With its compact size and robust design, this laser delivers reliable performance in various scientific, industrial, and research environments. It offers excellent power stability, low noise, and a wide operating temperature range, making it suitable for a wide range of applications.

Blue High Power DPSS Laser FPYL-457-XX.XW

Visit the FLC - Frankfurt Laser Company GmbH Store

Specifications

Wavelength: 457 nm
Max Output Power: 10000 mW
Cooling Method: Other (not specified)
Tunability: Other (see Data Sheet)
Control Interface: Other (not specified)
Operating Temperature: 10-35 °C
Expected Lifetime: 10000 hours
Modulation: TTL / Analog up to 30kHz (optional)
Noise Of Amplitude (RMS, 1Hz – 20MHz): ~30 %
Polarization Ratio: >100:1
Beam Height From Base Plate: 93.5 mm
Beam Diameter At The Aperture: ~4.0
Beam Divergence (full Angle): <2.0 mrad
M² Factor: 3.0-6.0
Warm-up Time: <10 minutes
Operating Mode: CW
Power Stability (RMS, Over 4 Hours): <3 %
Transverse Mode: Near TEM01

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength of 457nm with ±1nm accuracy
  • Output power range of 3.0 - 10.0W (to be specified)
  • Transverse Mode: Near TEM01
  • Operating Mode: Continuous Wave (CW)
  • Power stability of less than 3% (RMS, over 4 hours)
  • Fast warm-up time of less than 10 minutes
  • M² Factor between 3.0 and 6.0
  • Low beam divergence (full angle) of less than 2.0mrad
  • Beam diameter at the aperture of approximately 4.0mm
  • Beam height from the base plate of 93.5mm
  • High polarization ratio of greater than 100:1
  • Low noise of amplitude (RMS, 1Hz – 20MHz) of approximately 30%
  • Modulation options: TTL / Analog up to 30kHz (optional)
  • Expected lifetime of 10,000 hours
  • Wide operating temperature range of 10°C to 35°C

Applications

  • Laser display and projection
  • Laser-induced fluorescence
  • Holography
  • Spectroscopy
  • Material processing
  • Laser marking and engraving
  • Scientific research
  • Biomedical research
  • Imaging
  • Metrology

Frequently Asked Questions

What are the different types of DPSS laser products offered by FLC?
FLC offers a wide range of diode-pumped solid state laser products, including the smallest DPSS laser heads, low cost modules, low power and high power laser systems, and high quality single longitudinal mode laser systems with different power output and wavelengths.
What are the applications of these DPSS lasers?
These continuous wave diode-pumped solid state (DPSS) lasers are used in fluorescence and biomedical imaging, Raman spectroscopy and microscopy, lithography, and more.
Are these DPSS lasers expensive?
FLC offers low cost modules in addition to high power laser systems, so the price range varies depending on the specific product.
What is the FPYL-457-XX.XW DPSS Laser?
The FPYL-457-XX.XW DPSS Laser is a diode-pumped solid state laser product offered by FLC.
What is the power output of the FPYL-457-XX.XW DPSS Laser?
The power output of the FPYL-457-XX.XW DPSS Laser varies depending on the specific model.
