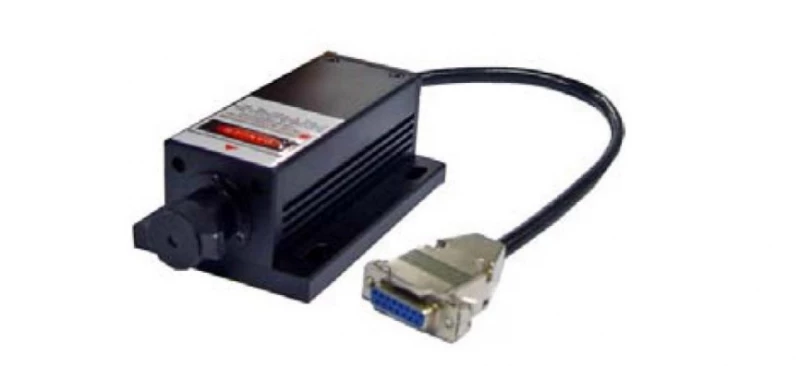

Thumbnail of FPYL-1064-XXXXT DPSS Laser photo 1

Description

The FPLY-1064-XXXXT Infrared DPSS Laser by Frankfurt Laser Company is a high-performance laser device designed for various applications. With a wavelength of 1064±1 nm and an output power range of 1-1000 mW, this laser provides stable and precise performance.

It features a transverse mode of TEM00 and operates in CW mode. The laser offers low power stability, fast warm-up time, and excellent pointing stability. Its compact design and reliable performance make it suitable for a wide range of industrial and scientific applications.

FPYL-1064-XXXXT DPSS Laser

Visit the FLC - Frankfurt Laser Company GmbH Store

Specifications

Wavelength: 1064 nm
Max Output Power: 1000 mW
Cooling Method: Other (not specified)
Tunability: Fixed Wavelength
Control Interface: Other (not specified)
Expected Lifetime: 10000 hours
Operating Temperature: 10-35 Ā°C
Pointing Stability After Warm-up: <0.05 Āµrad
Polarisation Ratio: >100:1
Modulation: TL / Analog up to 30 KHz (optional)
Beam Height From Base Plate: 24.8 mm
Beam Diameter At The Aperture: ~1.5 mm
Beam Divergence (full Angle): <1.5 mrad
MĀ² Factor: <1.5
Warm-up Time (minutes): <10
Power Stability (RMS, Over 4 Hours): <3 %
Transverse Mode: TEM00

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 1064±1 nm
  • Output Power Range: 1-1000 mW
  • Transverse Mode: TEM00
  • Operating Mode: CW
  • Power Stability: <1%, <2%, <3% (RMS, over 4 hours)
  • Warm-up Time: <10 minutes
  • M² Factor: <1.5 (<1.2 optional)
  • Beam Divergence (full angle): <1.5 mrad
  • Beam Diameter at the Aperture: ~1.5 mm
  • Beam Height from Base Plate: 24.8 mm
  • Modulation: TTL/Analog up to 30 KHz (optional)
  • Polarisation Ratio: >100:1
  • Pointing Stability after Warm-up: <0.05 µrad
  • Operating Temperature: 10-35°C
  • Expected Lifetime: 10,000 hours

Applications

  • Scientific research
  • Industrial manufacturing
  • Laser marking
  • Laser engraving
  • Material processing
  • Laser pumping
  • Spectroscopy
  • Biomedical research
  • Laser show and entertainment
  • Optical communication

Frequently Asked Questions

What are the different types of laser systems offered by FLC?
FLC offers a wide range of diode-pumped solid state laser products, including the smallest DPSS laser heads, low cost modules, low power and high power laser systems, and high quality single longitudinal mode laser systems with different power output and wavelengths.
What are the applications of FPYL-1064-XXXXT DPSS Laser?
FPYL-1064-XXXXT DPSS Laser is used in fluorescence and biomedical imaging, Raman spectroscopy and microscopy, lithography, etc.
What is the power output of FPYL-1064-XXXXT DPSS Laser?
The power output of FPYL-1064-XXXXT DPSS Laser varies depending on the specific model chosen.
What is FPYL-1064-XXXXT DPSS Laser?
FPYL-1064-XXXXT DPSS Laser is a diode-pumped solid state laser product offered by FLC.
What is the wavelength of FPYL-1064-XXXXT DPSS Laser?
The wavelength of FPYL-1064-XXXXT DPSS Laser is 1064 nm.

Got more questions? Use the inquiry form to ask the supplier directly.
