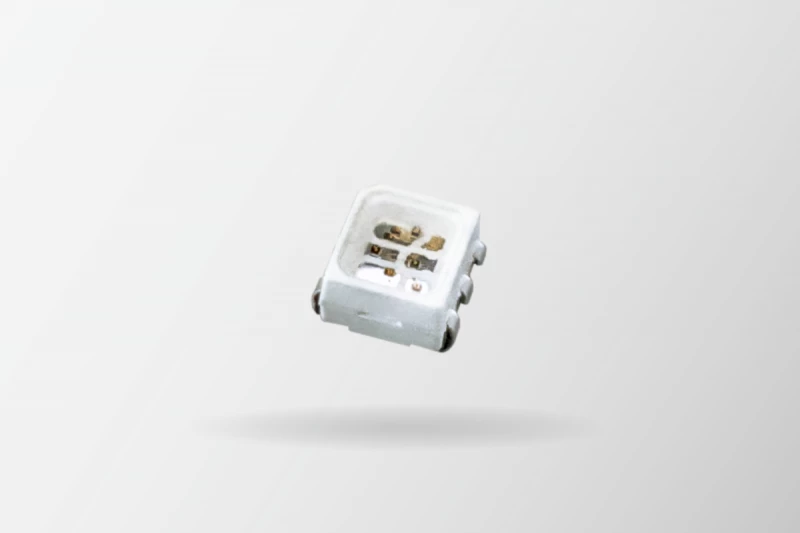

SMD | VCSEL (680/850/940nm | 2~7mW)
Experience the future of laser technology with our tri-wavelength SMD VCSEL. Integrated seamlessly within a compact 3.4x3.3mm footprint, this device promises a lighter, sleeker, and more condensed design.
The innovative SMD welding technique paves the way for automated production, minimizing production inefficiencies and reducing manual intervention. Bolstered by an in-built Zener diode, our VCSEL boasts superior anti-static protection.
With attributes like rapid-speed functionality, energy efficiency, and its diminutive stature, the SMD VCSEL is rapidly cementing its position as an indispensable component for next-gen technological advancements. Ideal for forward-thinking developers in the laser technology space.
SMD | VCSEL (680/850/940nm | 2~7mW)
|Optical Power (CW):||0.002~0.007 W|
|Threshold Current (680nm):||4 mA|
|Threshold Current (850nm):||2 mA|
|Threshold Current (940nm):||1.5 mA|
|Forward Voltage (680nm):||2.3 V|
|Forward Voltage (850nm):||2.2 V|
|Forward Voltage (940nm):||2.3 V|
|Beam Divergence (FWHM) (680nm) Parallel:||25 deg.|
|Beam Divergence (FWHM) (680nm) Perpendicular:||25 deg.|
|Beam Divergence (FWHM) (850nm) Parallel:||36 deg.|
|Beam Divergence (FWHM) (850nm) Perpendicular:||36 deg.|
|Beam Divergence (FWHM) (940nm) Parallel:||38 deg.|
|Beam Divergence (FWHM) (940nm) Perpendicular:||38 deg.|
|Lasing Wavelength(680nm):||680 nm|
|Lasing Wavelength(850nm):||850 nm|
|Lasing Wavelength (940nm):||940 nm|
- Triple Wavelength Integration: Seamlessly combines three distinct wavelengths in a single compact package, optimizing versatility and performance.
- Automation-Ready Design: Engineered for seamless cooperation with automated production lines, ensuring consistency and high throughput.
- Eco-Friendly Performance: Offers superior energy efficiency, making it both an economical and environmentally-conscious choice for diverse applications.
- Advanced Sensing: Use in devices requiring high-speed optical sensing across multiple wavelengths.
- Medical Imaging: Ideal for advanced diagnostic equipment requiring precision and reliability.
- Consumer Electronics: Integration in smartphones, tablets, and wearable devices for advanced features like facial recognition and augmented reality.
- Industrial Automation: Improve accuracy and speed in manufacturing and assembly lines.
- Automotive: Deployment in advanced driver assistance systems (ADAS) for better vehicle and road sensing.
- Security Systems: Utilize in advanced surveillance and biometric authentication systems.
- Healthcare LLLT Devices: Leverage in Low-Level Laser Therapy (LLLT) products for therapeutic applications.
- Research & Development: Integral for labs working on next-gen optical technologies and experiments.
- Compact Design Needs: Perfect for products requiring condensed laser components without compromising on performance.
Frequently Asked Questions
The SMD VCSEL LSZZ030001 combines three distinct wavelengths within a compact 3.4x3.3mm package. This design allows products to be lighter, thinner, and shorter.
The SMD welding method facilitates automated production, reducing manual hours and production losses.
The built-in Zener diode provides superior anti-static protection.
VCSEL boasts benefits like high-speed operation, low power consumption, and a compact size, positioning it as a key component for next-generation applications.
It's primarily designed for Healthcare LLLT (Low-Level Laser Therapy) products.
It supports three wavelengths: 680nm, 850nm, and 940nm.
Ensure the die-pad portion temperature remains below 160°C, use a heat sink for heat radiation on the package, and keep the soldering iron temperature below 180°C for a maximum of 3 seconds.
