Description
Demanding Mid-IR spectroscopy applications such as nanoscale and microscale chemical imaging benefit greatly from rapid, high-SNR data acquisition. However, until now, Mid-IR laser sources required compromises in beam quality and wavelength fidelity to achieve high scan speeds. With the introduction of the new MIRcat-QT, you can now have superior beam quality, wavelength fidelity, and fast continuous scanning (>1,000 cm-1 at 5 Hz) all in one ultra-broadly tunable, CW/pulsed Mid-IR laser.

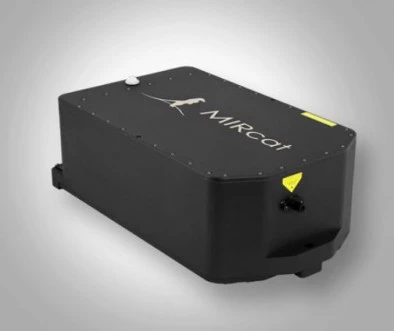

MIRcat-QT™ RAPID-SCAN, ULTRA-BROADLY TUNABLE MID-IR CW/PULSED LASER SYSTEM
Specifications
| Center Wavelegth: | 9450 nm |
|---|---|
| Tuning Range: | 6500 – 12400 nm |
| Sweep Speed: | 31.5 nm/sec |
| Power: | 27 dBm |
Download Data Sheet
Features
- Tuning sweeps @ 5 Hz (>1,000 cm-1 in < 200 ms)
- Pulsed AND CW operation modes
- Lowest relative intensity noise (RIN)
- Pulse repetition rates up to 5 MHz
- Pulse widths down to 40 ns
Frequently Asked Questions
What are the applications of the MIRcat-QT laser system?
The MIRcat-QT laser system can be used in a wide range of molecular sensing applications including process and quality control, remote sensing, imaging, and spectroscopy.
What are the features of the MIRcat-QT laser system?
The MIRcat-QT laser system has tuning sweeps at 5 Hz (>1,000 cm-1 in < 200 ms), pulsed and CW operation modes, lowest relative intensity noise (RIN), pulse repetition rates up to 5 MHz, and pulse widths down to 40 ns.
What are the performance specifications of the MIRcat-QT laser system?
The MIRcat-QT laser system has center wavelengths from <4 μm to >13 μm, pulsed or CW modes of operation, and can be configured with 1, 2, 3, or 4 standard or custom laser modules. It has a maximum tuning speed of >30,000 cm-1/s and a step-and-settle time to arbitrary λ of 250 ms.
What is the advantage of the MIRcat-QT laser system over other Mid-IR laser sources?
The MIRcat-QT laser system provides uncompromised performance in application-critical areas such as tuning speeds, tuning ranges, CW RIN, peak power output, average power output, and wavelength repeatability. It also has a single TEM00 output beam, which enables high-efficiency fiber coupling.
What is the MIRcat-QT laser system?
The MIRcat-QT is an ultra-broadly tunable, CW/pulsed Mid-IR laser system that provides superior beam quality, wavelength fidelity, and fast continuous scanning for demanding Mid-IR spectroscopy applications.
