Laser Diode Driver with TEC Model: SF8XXX-NM

Description

SF8XXX series laser diode driver has been specifically designed for laser diode supplies. Driver SF8XXX includes high stability current source (0.01mА) for laser diodes and TEC for precision temperature control using a Peltier element (TEM) (+/-0.01 °C).

Specifications

Drive Regime:	CW, Pulsed
Output Current (max):	1.5 A
Output Voltage (max):	3 V
Maximum Current LD (I):	250; 750; 1500 mA
Output Voltage LD (V):	0.5-3 V
Current Stability:	0.1 %
Current Set Accuracy:	1 %
Output Current Noise:	10-15 µA
ТЕС Output Current:	±4 A
TEC Output Voltage:	±4 V
TEC Output Current Ripple:	2-4 mА
TEC Feedback Sensor NTC:	10 kOhm
Temperature Control Range:	+15 to +40 °C
Dimensions:	57.9 x 61 x 22 mm
Weight:	115 g
Input Voltage Supply (Vin):	5 V
User Interface:	RS-232 / UART/ USB/Analog/Trim Potentiometers for Driver Current and TEC Power
Laser Diode Protection:	Soft-Start Current Ramp/ Current limit/ Temperature limit/ Reverse current protection/ ESD and transient protection

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

All-in-One Current Source, Temperature Controller
Low current ripple: ≤ 10uA
Current stability < 0.1%
Integrated PID controller, doesn't require setup
Soft-Start Current Ramp, Current Limit, Temperature Limit for Laser Diode Protection

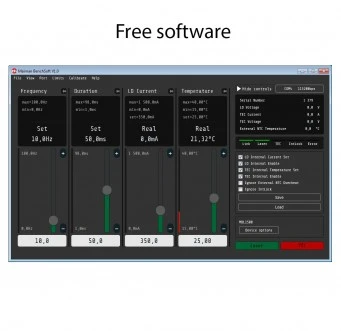

Free software

Applications

Driving/controlling Laser Diodes for laser pumping, laser spectroscopy, laboratory test set-ups.
These devices are an excellent choice for laser diodes from II-VI Laser Enterprise, Eblana Photonics, 3SP Technologies, Furukawa and etc.

Request Quote

To: Maiman Electronics SL
Re: Laser Diode Driver with TEC Model: SF8XXX-NM

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: Spain
Sold by:: Maiman Electronics SL
On FindLight:: since 2020

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the applications of the SF8XXX series laser diode driver?

The SF8XXX series laser diode driver is used for driving and controlling laser diodes for laser pumping, laser spectroscopy, and laboratory test set-ups.

What are the controls of the SF8XXX series laser diode driver?

The controls of the SF8XXX series laser diode driver include potentiometers on the board and external input.

What are the features of the SF8XXX series laser diode driver?

The SF8XXX series laser diode driver includes a high stability current source for laser diodes, TEC for precision temperature control, low current ripple, integrated PID controller, soft-start current ramp, current limit, and temperature limit for laser diode protection.

What are the TEC controller features of the SF8XXX series laser diode driver?

The TEC controller features of the SF8XXX series laser diode driver include temperature stabilization range, low current ripple, integrated PID controller, adjustable TEC output current limit, and working with sensor NTC 10 kOhm.

What is the SF8XXX series laser diode driver designed for?

The SF8XXX series laser diode driver has been specifically designed for laser diode supplies.
