Description

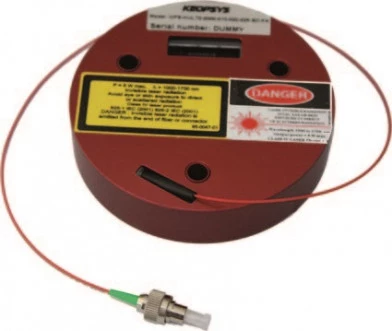

PTFL-KULT 2 µm series Thulium doped fiber lasers are eye-safe pulsed laser sources delivering high peak power and high energy per pulse in a very compact package. The 2 µm KULT laser is one of the most compact laser of its category. Due to its low attenuation during atmospheric propagation, this laser allows ultra long range finding through mist and damp air. The output beam is near Gaussian beam M2<1.1 diffraction-limited. This source is ideal for telemetry or range-finding applications and can be operated in harsh environment.
PTFL-KULT SERIES - 2 µm Ultra-compact Laser Transmitter
Specifications
Wavelength: | 1995 nm |
---|---|
Average Output Power: | 0.2 W |
Pulse Duration: | 10 – 40 ns |
Beam Quality (M^2): | 1.1 |
Max Pulse Repetition Rate: | 20 kHz |
Energy Per Pulse: | Up to 15 µJ |
Features
- 2 μm eye-safe operation
- Energy per pulse up to 15 μJ
- Peak power up to 1.5 kW
- Pulse duration 10 ns
- Pulse repetition frequency from 5 kHz to 20 kHz
- Linear or random polarization
- Diffraction limited output beam
- Low power consumption
- Wide operating temperature range (-35 °C to +65 °C)
- Compact and rugged package
Applications
- Telemetry, Range-finding
- 3D scanning
- Mapping
- Supercontinuum generation
Frequently Asked Questions
What is the PTFL-KULT series?
The PTFL-KULT series is a range of 2µm pulsed fiber laser transmitters, delivering peak power up 15µJ and energy per pulse up to 15µJ in ultra-compact modules with diffraction-limited output beam for range finding applications.
What are the features of the PTFL-KULT series?
The PTFL-KULT series features 2 µm eye-safe operation, energy per pulse up to 15 µJ, peak power up to 1.5 kW, pulse duration of 10 ns, pulse repetition frequency from 5 kHz to 20 kHz, linear or random polarization, diffraction-limited output beam, low power consumption, wide operating temperature range (-35 °C to +65 °C), and compact and rugged package.
What are the applications of the PTFL-KULT series?
The PTFL-KULT series is ideal for telemetry, range-finding, 3D scanning, mapping, and supercontinuum generation.
What is the mode of operation for the PTFL-KULT series?
The PTFL-KULT series offers one mode of operation: Current Set Point Laser Output Power Pump Current ACC. ACC (Automatic Current Control) mode is standard for all devices. The laser is controlled from diodes current set point.
What is the all-in-fiber design of the PTFL-KULT series?
The all-in-fiber design of the PTFL-KULT series requires no maintenance and allows for easy integration in highly integrated systems.
