Description
PEFL-KULT series are pulsed Erbium doped fiber lasers, delivering high peak power and high energy per pulse. These PEFL-KULT lasers provide high quality output beams (diffraction-limited, M2<1.1 or near Gaussian, M2<1.5). Our patented VSP technology insure robustness and high reliability for cost effective solution, without maintenance. Keopsys offers compact packages ideally design for integration either analogic or digital controls. It is maintenance free and can be operated in harsh environment. These lasers sources are design for industrial solution such as 3D scanning, Wind sensing, supercontinuum generation and telemetry.

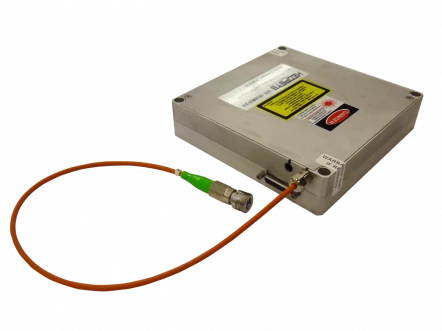

PEFL-KULT SERIES - 1.5 µm Ultra Compact Fiber Laser
Specifications
Wavelength: | 1545 nm |
---|---|
Average Output Power: | 2.5 W |
Pulse Duration: | 0.5 – 200 ns |
Beam Quality (M^2): | 1.1 |
Max Pulse Repetition Rate: | 2000 kHz |
Features
- 1.5 μm eye-safe operation
- Energy per pulse up to 100 μJ
- Peak power up to 15 kW
- Pulse duration from 0.5 ns to 200 ns
- Pulse repetition frequency from 5 Hz to 2 MHz
- Continuous or burst operation
- Diffraction limited output beam
- Linear or random polarization
- Low power consumption
- Wide operating temperature range (-35 °C to +65 °C)
- Compact and rugged package
Applications
- ADAS
- Telemetry, range-finding
- 3D scanning
- Mapping
- Cloud height measurement
- Wind sensing
- Supercontinuum generation
Frequently Asked Questions
What is the wavelength of the PEFL-KULT series laser?
The wavelength of the PEFL-KULT series laser is 1.5 µm.
What is the peak power of the PEFL-KULT series laser?
The peak power of the PEFL-KULT series laser can go up to 15 kW.
What is the pulse repetition frequency range of the PEFL-KULT series laser?
The pulse repetition frequency range of the PEFL-KULT series laser is from 5 Hz to 2 MHz.
What kind of applications is the PEFL-KULT series laser suitable for?
The PEFL-KULT series laser is suitable for applications such as ADAS, telemetry, range-finding, 3D scanning, mapping, cloud height measurement, wind sensing, and supercontinuum generation.
Is the PEFL-KULT series laser suitable for use in harsh environments?
Yes, the PEFL-KULT series laser is designed for industrial solutions and can be operated in harsh environments. It has been tested under vibrations and shocks conditions in accordance with military standards, allowing operations in the harshest environmental conditions over a long period of time.
