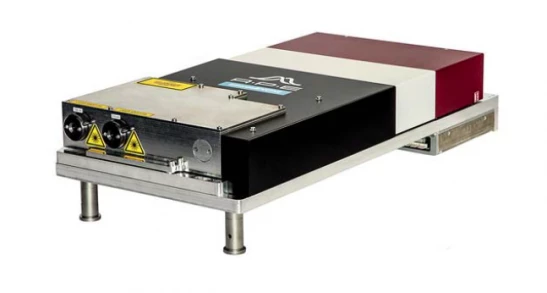

APE MP-Basic Duo Emerald Engine

Visit the Applied Physics & Electronics, Inc. Store

Specifications

Wavelength: 516 nm
Average Output Power: 4 W
Pulse Duration: 0.0025 – 0.0025 ns
Max Pulse Repetition Rate: 80000 kHz
Repetition Rate: 80 ± 0.15 MHz
Wavelength 1: 516 ± 0.75 nm
Output Power 1: > 3.0 W
Pulse Width 1: ~ 2.0 ps
Spectral Bandwidth 1: < 0.5 nm (< 20 cm-1)
Polarization 1: Vertical
Wavelength 2: 1032 ± 1.5 nm
Output Power 2: > 0.75 W
Pulse Width 2: ~ 2.0 ps
Spectral Bandwidth 2: ~ 1 nm (~ 10 cm-1)
Polarization 2: Horizontal
Dimensions (Laser): 730 mm x 345 mm x 163 mm
Dimensions (Chiller): 330 mm x 197 mm x 279 mm
Power: 100 ... 240 V, 50 ... 60 Hz, max. 1200 W
Document icon Download Data Sheet Download icon

Features

  • Yb-Fiber Laser-Based Technology: The Emerald Engine utilizes Yb-fiber laser technology, offering high precision and reliability.
  • Dual Beam Output: Provides both a frequency-doubled green beam at 516 nm (> 3 W) and an undepleted fundamental IR beam at 1032 nm (> 0.75 W), both intrinsically synchronized and jitter-free.
  • Ultra-Short Pulse Width: Offers pulse widths as short as 2 ps with a spectral width of only 10 cm-1, ensuring high-resolution applications.
  • Stable Repetition Rate: The laser repetition rate is stabilized by a cooled base plate, enhancing performance stability.
  • High-Power Version Available: A high-power version is available with > 7 W for the frequency-doubled beam and > 3.5 W for the fundamental beam.
  • Windows-Based Control Software: Includes user-friendly control software for easy operation and integration.
  • Customizable Options: Customized alternatives are available upon request, providing flexibility for various applications.
  • Compact Design: Laser dimensions are 730 mm x 345 mm x 163 mm, with a chiller size of 330 mm x 197 mm x 279 mm, and electronics in a 19" x 4 U enclosure.
  • Power Requirements: Operates on 100-240 V, 50-60 Hz, with a maximum power consumption of 1200 W for laser, chiller, and electronics.
  • Safety Notice: Class 4 laser product, avoid eye or skin exposure to direct or scattered radiation.

Applications

  • Yb-fiber laser-based: Green and IR beams are intrinsically synchronized and jitter-free. Offers pulses as short as 2 ps with a spectral width of only 10 cm-1. Laser repetition rate stabilized by cooled base plate. Windows-based control software included. Sync-out signal available.
  • Emerald Engine: An Yb-fiber based pump laser with a pulse width of 2 ps, alternatively 5 ps. Equipped with a frequency doubling unit, providing two beams: a frequency-doubled beam at 516 nm (> 3 W) and the undepleted fundamental beam at 1032 nm (> 0.75 W). The beams are intrinsically synchronized and jitter-free.
  • High-Power Version: Available with an output power of > 7 W for the frequency-doubled beam and > 3.5 W for the fundamental beam.
