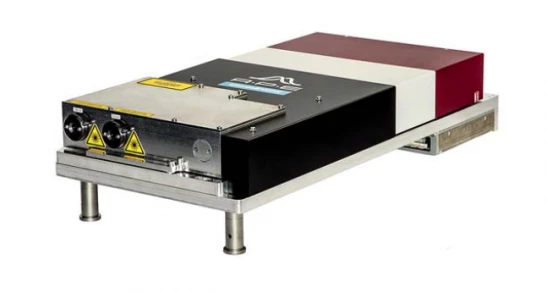

APE Basic Green Long Pulse Emerald Engine
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The APE picoEmerald™ series of optical parametric oscillators (OPOs) was developed to provide an optimized pulsed laser source for everyday use in ps Coherent Raman measurements, video rate SRS imaging and other applications. Now the Emerald Engine extends the popular Levante Emerald series by providing a separate IR fiber based pump laser with a pulse width of only 2 ps.
The pump laser comes with a frequency doubling unit included, resulting in two beams: a frequency doubled output @ 516 nm and output power > 3 W and the undepleted fundamental output @ 1032 nm with output power > 0.75 W. Both beams are intrinsically synchronized and jitter-free (Emerald Engine – Basic– Duo). For applications that require a higher output power the Emerald Engine HP is available with an output power of > 6 W for the frequency doubled output and > 3 W for the undepleted fundamental output (Emerald Engine HP – Basic– Duo).
If the undepleted fundamental beam is not needed, the Emerald Engine – Green longpulse is available with a frequency doubled output @ 516 nm and output power of > 4 W at a pulse duration of approx. 5 ps.
APE Basic Green Long Pulse Emerald Engine
Specifications |
|
|---|---|
| Wavelength: | 516 nm |
| Average Output Power: | 4 W |
| Pulse Duration: | 0.005 – 0.005 ns |
| Max Pulse Repetition Rate: | 80000 kHz |
| Repetition Rate: | 80 ± 0.15 MHz |
| Wavelength 1: | 516 ± 0.75 nm |
| Output Power 1: | > 3.0 W |
| Pulse Width 1: | ~ 2.0 ps |
| Spectral Bandwidth 1: | < 0.5 nm (< 20 cm-1) |
| Polarization 1: | Vertical |
| Wavelength 2: | 1032 ± 1.5 nm |
| Output Power 2: | > 0.75 W |
| Pulse Width 2: | ~ 2.0 ps |
| Spectral Bandwidth 2: | ~ 1 nm (~ 10 cm-1) |
| Polarization 2: | Horizontal |
| Dimensions (Laser): | 730 mm x 345 mm x 163 mm |
| Dimensions (Chiller): | 330 mm x 197 mm x 279 mm |
| Power: | 100 ... 240 V, 50 ... 60 Hz, max. 1200 W |
Features
- Yb-fiber Laser-based Technology: The Emerald Engine utilizes Yb-fiber laser technology, ensuring high precision and performance.
- Intrinsically Synchronized Beams: The green and IR beams are synchronized and jitter-free, providing stable and reliable operation.
- Pulse Width: Offers pulses as short as 2 ps with a spectral width of only 10 cm-1.
- Laser Repetition Rate: Stabilized by a cooled base plate, ensuring consistent performance.
- Windows-based Control Software: Includes user-friendly software for easy operation and control.
- Sync-out Signal: Provides synchronization capabilities for various applications.
- Dual Beam Output: The Emerald Engine Duo offers a frequency-doubled beam at 516 nm (> 3 W) and an undepleted fundamental beam at 1032 nm (> 0.75 W).
- High-Power Version Available: An enhanced version provides output power of > 7 W for the frequency-doubled beam and > 3.5 W for the fundamental beam.
- Customizable Options: Customized alternatives are available upon request to meet specific application needs.
- Compact Design: Laser dimensions are 730 mm x 345 mm x 163 mm, with a chiller size of 330 mm x 197 mm x 279 mm.
- Power Requirements: Operates on 100-240 V, 50-60 Hz, with a maximum power consumption of 1200 W.
- Safety Notice: Class 4 laser product; avoid exposure to direct or scattered radiation.
Applications
- Yb-fiber laser-based: Green and IR beam are intrinsically synchronized and jitter-free, offering pulses as short as 2 ps with a spectral width of only 10 cm-1. Laser repetition rate stabilized by cooled base plate. Windows-based control software included. Sync-out signal available.
- Emerald Engine: An Yb-fiber based pump laser with a pulse width of 2 ps, alternatively 5 ps. Equipped with a frequency doubling unit, providing two beams: a frequency-doubled beam at 516 nm (> 3 W) and the undepleted fundamental beam at 1032 nm (> 0.75 W). The two beams are intrinsically synchronized and jitter-free.
- High-Power Version: Offers an output power of > 7 W for the frequency doubled beam and > 3.5 W for the fundamental beam.
Frequently Asked Questions
The APE picoEmerald™ series is used for everyday use in ps Coherent Raman measurements, video rate SRS imaging, and other applications.
The Emerald Engine HP has a higher output power of > 6 W for the frequency doubled output and > 3 W for the undepleted fundamental output, while the Emerald Engine has an output power of > 3 W for the frequency doubled output and > 0.75 W for the undepleted fundamental output.
The pulse duration of the Emerald Engine - Green longpulse is approximately 5 ps.
The Emerald Engine comes with a frequency doubling unit included, resulting in two beams: a frequency doubled output @ 516 nm and output power > 3 W and the undepleted fundamental output @ 1032 nm with output power > 0.75 W. Both beams are intrinsically synchronized and jitter-free (Emerald Engine – Basic– Duo).
The wavelength of the IR fiber laser with frequency doubling unit is not specified in the product description.
