Page 2 - Broadband & Supercontinuum Sources

The 2000nm band ASE broadband light source is based on thulium fiber laser technology, has a high output power, and the spectrum covers 1850~2000nm, which is suitable for laser biology, spectrum measurement and other applications. Can provide communication interface and host computer software to facilitate the monitoring of the state ...

Specifications

Bandwidth: 150 nm
Center Wavelength: 2000 nm
Output Power: 10/20/30 mW
Polarization: Not Specified
Short-term Stability (15 Minutes): ≤ ±0.02 dB
1060nm ASE Broadband Light Source is based on ytterbium-doped fiber and high-performance pump laser. The ASE spectrum covers 1030-1080nm, and the light source structure is optimized, and it has higher output power and better flatness. Can be used for fiber optic device testing, FBG grating production, etc.

Specifications

Bandwidth: 50 nm
Center Wavelength: 1060 nm
Output Power: 10/20/30 mW
Polarization: Not Specified

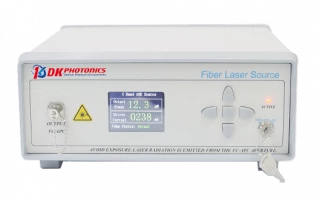

C+L band ASE Broadband Light Source adopts the erbium-doped optical fiber spectral flatness technology, and has a high output power, the working wavelength covers the C+L-band, and is suitable for applications such as optical fiber sensing. Can provide communication interface and host computer software to facilitate the monitoring of ...

Specifications

Bandwidth: 75 nm
Center Wavelength: 1565.5 nm
Output Power: 10/20/50/100 mW
Polarization: Not Specified

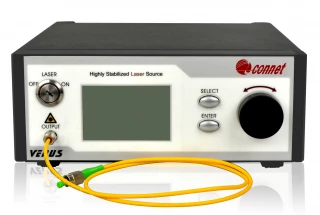

The VENUS series 1250-1650nm high-power SLD (SLED) light source of Connet is a high-stability source designed for scientific research and industrial production with the high-power, broadband SLD (SLED) module being installed internally. It covers different intervals within the scope of 1250~1650nm.   The output power ...

Specifications

Bandwidth: 400 nm
Center Wavelength: 1450 nm
Output Power: 10 mW
Polarization: Random
Dimensions: 430(L) x 450(W) x 105(H) mm

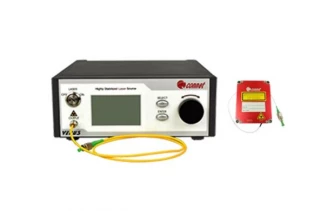

Connet VENUS series C-Band tunable light source adopts C-band tunable semiconductor laser internally. The wavelength range covers 1528.77nm to 1567.13nm (191.3THz-196.1THz) with the bandwidth exceeding 38nm, the channel interval of 50GHz, the channel numbers around 97 (C13-C61), and the FWHM spectrum width of single ITU wavelength ...

Specifications

Bandwidth: 40 nm
Center Wavelength: 1528 nm
Output Power: 10 mW
Polarization: Random
Output Power Tunable Mode: Coarse / Fine
SUPERCONTINUUM SOURCE Laser OEM ODM Manufacture Module is designed according to customers requirements. It is the latest product designed with the compact footprint for the demanding medical and industry application. It has single-mode fiber output, delivers a wide spectral output ranging from 400nm to 2400nm with up to 8W total ...

Specifications

Bandwidth: 400-2400 nm
Center Wavelength: 400-2400 nm
Output Power: 800 mW
Polarization: Random
Repetition Rate: 10kHz-200MHz
470nm-2400nm Supercontinuum laser source white light source Cost Effective. It is a cost effective supercontinuum source with single mode FC connector output. With a total output power of more than 500mW covering a broad spectral range of 470nm to 2400nm, the system is an ideal light source for fiber component characterization, fiber ...

Specifications

Bandwidth: 470-2400 nm
Center Wavelength: 470-2400 nm
Output Power: 500 mW
Polarization: Not Specified
Spectrum Stability: <0.1 dB
MID IR supercontinuum laser Light Source broadband white light source. BQSC-Pro is the MID IR supercontinuum laser broadband white light source with repetition rate 10kHz – 80MHz. It has a MID IR wavelength spectral output from 2000nm to 2400nm with 8W-20W total output power. It has the unique feature of 1MHz-80MHz external ...

Specifications

Bandwidth: 2400nm-2500nm nm
Center Wavelength: 2400 nm
Output Power: 10000 mW
Polarization: Random
PRO-MLD Supercontinuum Laser Source White Light Source has a seed source pulse duration of 6ps. It delivers a wide spectral output ranging 410nm-2400nm with 7W output power. The optional 10kHz to 80MHz repetition rate capability makes it an ideal source for the applications such as low noise OCT, fluorescence microscopy and etc.

Specifications

Bandwidth: 2000 nm
Center Wavelength: 400-2500 nm
Output Power: 7000 mW
Polarization: Random
Repetition Rate: 80MHz

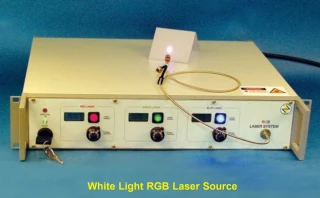

The OZ Optics RGB-100 White Light Laser Source is a high-quality laser system designed for various applications such as white light displays, confocal microscopy, laser spectroscopy, fluorescence microscopy, color holography, and flow cytometry. It combines red, green, and blue laser sources to generate white light output for ...

Specifications

Bandwidth: -- nm
Center Wavelength: 532 nm
Output Power: 20 mW
Polarization: Linear
Fiber Core Diamater: 3.5 um

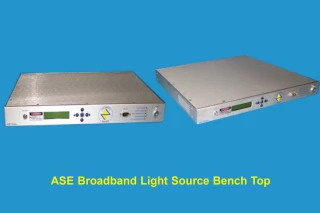

The ASE Broadband Light Source is a high-performance instrument designed for optical component spectral measurement and system compliance testing in manufacturing and R&D environments. It offers a wide spectral bandwidth, high output power, and excellent stability. The source provides un-polarized output light and features RS232 ...

Specifications

Bandwidth: 40 nm
Center Wavelength: 1547 nm
Output Power: 500 mW
Polarization: Random
Total Output Power: 13 dBm
The Broadband Polarization-Entangled Photon Source is a compact and alignment-free fiber-based device that generates high-quality polarization-entangled photon pairs. It operates at telecom wavelengths with a broad bandwidth of more than 80 nm. This source is designed for turnkey, room-temperature operation and requires minimal ...

Specifications

Bandwidth: 120 nm
Center Wavelength: 1566 nm
Output Power: -- mW
Polarization: Not Specified
Signal/Idler Degeneracy Wavelength Accuracy: ±2 nm
The SC4500 is the world's first commercially available femtosecond-laser-pumped Mid-IR Supercontinuum Laser Source.  This supercontinuum laser emits over a wavelength range from approximately 1.3 μm to 4.5 μm (7700 cm-1 to 2200 cm-1) with >300 mW of average output power in a collimated beam. More than 110 mW of the ...

Specifications

Bandwidth: 3200 nm
Center Wavelength: 3000 nm
Output Power: 300 mW
Polarization: Random
Repetition Rate: 50 MHz
3W Supercontinuum Fiber Laser Iceblink is a supercontinuum fiber laser covering the 450-2300 nm spectral range with over 3W of average power and superior stability (<0.5% std. dev.). It is a very versatile white light source with a world of applications in the scientific and industrial sectors, including absorption/transmission ...

Specifications

Bandwidth: 450-2300 nm
Center Wavelength: 1064 nm
Output Power: 3000 mW
Polarization: Unpolarized
Repetition Rate: 80 MHz
AdValue Photonics manufactures its products in Tucson, Arizona, USA. Specialty glasses and optical fibers are designed and fabricated in house to ensure the highest quality of products and enable our innovative laser designs.         The AP-SC-MIR is a turnkey, fiber-based supercontinuum light source ...

Specifications

Bandwidth: 500 nm
Center Wavelength: 2150 nm
Output Power: 100 mW
Polarization: Random
Operation Mode: 10
Compact, alignment-free and all-fiber picosecond laser source for CARS microscopy delivering synchronized pump and Stokes pulses from a single fiber end. This air-cooled and turn-key CARS laser source has a great benefit for the user as the fiber delivery eliminates alignment of the spatial and temporal pulse overlap. High-quality ...

Specifications

Bandwidth: 1400 - 3800 cm^-1 nm
Center Wavelength: na nm
Output Power: 250 mW
Polarization: Linear
Wavelength Range 1: 1025-1050 nm
Amplified spontaneous emission (ASE), also called superluminescence, is the emission of fluorescence that is amplified along the gain media. AdValue Photonics’ near 2 micron ASE source exhibits broad bandwidth with excellent spatial coherence and low temporal coherence.   * Broadest bandwidth * High output ...

Specifications

Bandwidth: 170 nm
Center Wavelength: 1950 nm
Output Power: 10 mW
Polarization: Linear
Amplified spontaneous emission (ASE), also called superluminescence, is the emission of fluorescence that is amplified along the gain media. AdValue Photonics’ near 2.1 micron ASE source exhibits broad bandwidth with excellent spatial coherence and low temporal coherence.   * Broadest bandwidth * Mid IR ...

Specifications

Bandwidth: 100 nm
Center Wavelength: 2070 nm
Output Power: 10 mW
Polarization: Random
Fiber optical broadband sources make use of the Amplified Spontaneous Emission (ASE) within optically pumped rare earth doped fibers. The spectral width of such light sources ranges by design from a few nm to the entire emission wavelength range of the dopand (e.g. Erbium ions). The optical power density of fiber optical ASE sources ...

Specifications

Bandwidth: 80 nm
Center Wavelength: 1568 nm
Output Power: 40 mW
Polarization: Unpolarized
Power Density: min. -12 dBm/nm

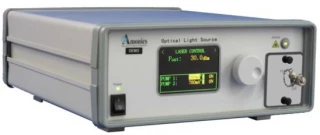

Amonics’ ALS-CWDM Super-Wideband light source provides high spectral density, at above -30dBm/nm, across 1250nm to 1650nm. That makes this source the ideal tool for the characterization of CWDM components and communication links in one easy step. This broadband source is also extremely effective in high resolution optical ...

Specifications

Bandwidth: 400 nm
Center Wavelength: 950 nm
Output Power: 10 mW
Polarization: Random
