Desktop PCB laser Marking Machine
Full-automatic PCB laser marking machine is mainly used for marking QR code, barcode, characters, different patterns on PCB with various kinds of ink, such as white, green, or black oil, and even on copper surface accurately.
It can acquire the data from MES automatically, such as batch number, date, and generate QR code; by lasering it on PCB so to control the product.
Compared with the traditional spray printing, PCB laser marking machine is more precision, no pollution, easy maintenance and without extra cost, it is applied widely in PCB industry.

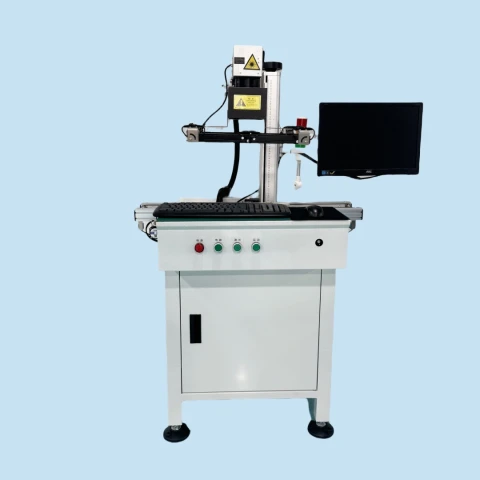

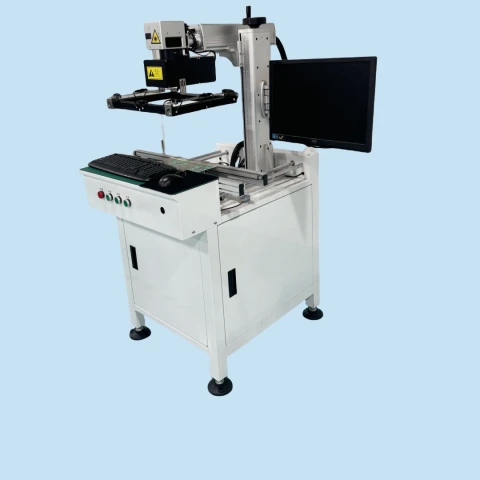

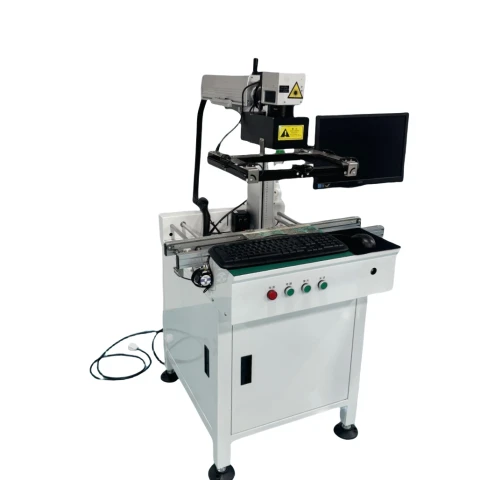

Veshay VIPIN-PD05V: Precision PCB Laser Marking Machine with Fixed Laser Head and CCD Camera
Dongguan Veshay Laser Technology Co., Ltd
Specifications
| Work Area X: | 300 mm |
|---|---|
| Work Area Y: | 400 mm |
| Beam Delivery: | Galvo |
| Laser Source: | CO2, Fiber, Custom |
| Laser Output Power: | 51020 W |
| Laser Wavelength: | 351 nm (UV), 532 nm (green), 1064 nm (IR), Other (not specified) |
| Marking Speed: | 0 mm/sec |
| Voltage Requirement: | 110V - 60Hz, 220V - 50Hz, Other / Not Specified |
| Materials: | Stainless Steel, Aluminum, Plastic |
| Air Assist: | Included, Not Specified |
| Fume Extraction Unit: | Included |
| Safety Enclosure: | Included, Optional |
| Laser Type: | UV,Fiber,CO2,Green,Mopa |
| Laser Size: | 0.03/0.05/0.08mm |
| Repeat Positioning Accurancy: | ±0.01mm |
| Minimum Barcode Size: | 2mm*2mm |

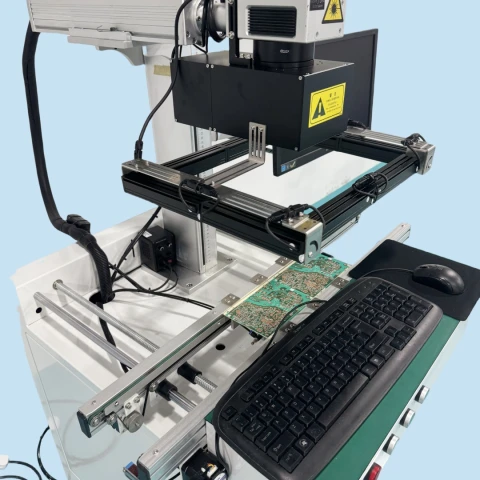

| Positioning System: | CCD + Mark positioning |
| Control System: | PC + Shaft Card+Servo |
| Barcode Detection System: | CCD Online Detection |
| Maximun PCB Size: | 50*50-300*400mm |
| PCB Allowed Deformation: | <3mm |
| PCB Thickness: | 0.5-4mm |
| PCB Pass Height: | Up:35MM Down: 15mm |
| Transition Speed: | 0-3000mm/S |
| Track Width Adjustment: | Manually |
| Marking Application: | Character、Barcode、QR code、Graphic Data |
| Barcode Database: | Get Data from MES, or generate automatically |
| System Connection Function: | Access to ShopFloor, MES, IMS system, and so on |
| Machine Size: | 830mm*800mm*1450mm |
Download Data Sheet
Features
- Easy to Operate.
- Precise marking.
- Labor saving. One person can supervise multiple devices.
- Documents can be saved and switching production lines is fast.
- Marking on PCB
- Support customization with software development.
- No pollution, no consumables.
- Alarm calls when marking missed, and processing stops when NG
Applications
It is used for marking one-dimensional codes, two-dimensional codes, text, and other information on hardware, plastics, circuit boards, as well as reinforcing steel sheets and shielding cover products. It can also read and verify the marking after completion.
Frequently Asked Questions
What materials can the VIPin-PD05UV mark on?
The VIPin-PD05UV can mark on hardware, plastics, circuit boards, reinforcing steel sheets, and shielding cover products.
What type of laser does the VIPin-PD05UV use?
The VIPin-PD05UV uses a UV laser with a power of 5W and a wavelength of 355nm.
How precise is the marking done by the VIPin-PD05UV?
The VIPin-PD05UV has a repeating accuracy of ±0.03mm on flat surfaces.
Does the VIPin-PD05UV require consumables?
No, the VIPin-PD05UV does not require consumables and is pollution-free.
Can the VIPin-PD05UV be customized with software development?
Yes, the VIPin-PD05UV supports customization with software development.
What is the size and weight of the VIPin-PD05UV machine?
The machine size is 600*800*1450MM and it weighs approximately 80KG.
What happens if the VIPin-PD05UV misses a marking?
If the VIPin-PD05UV misses a marking, an alarm will sound and processing will stop.
