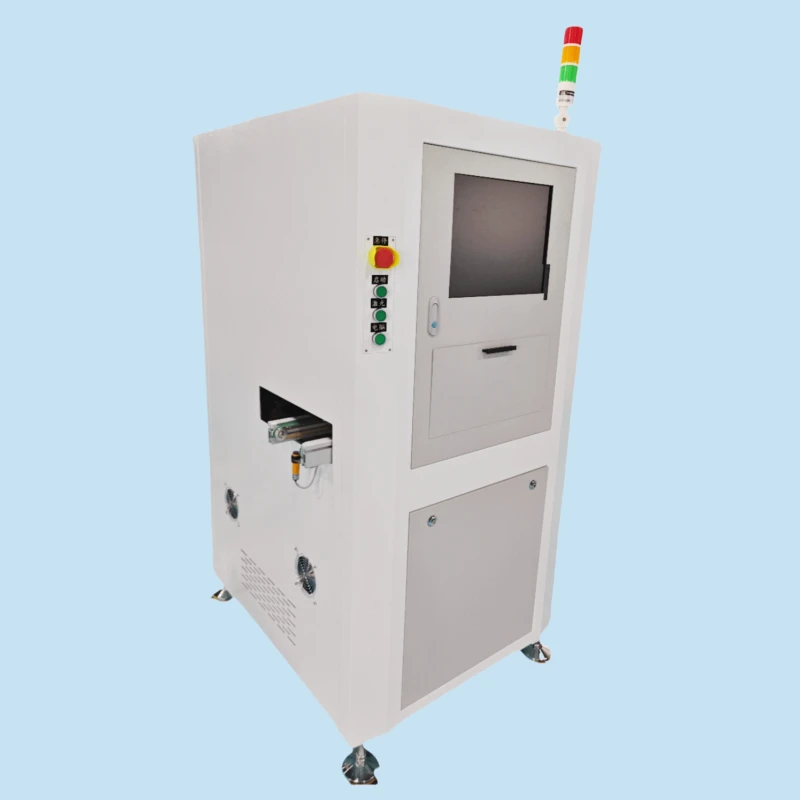

Thumbnail of SMT Turnkey Soltuion Laser Marking for Barcodes and QR Codes VIPin-260A-03 photo 1

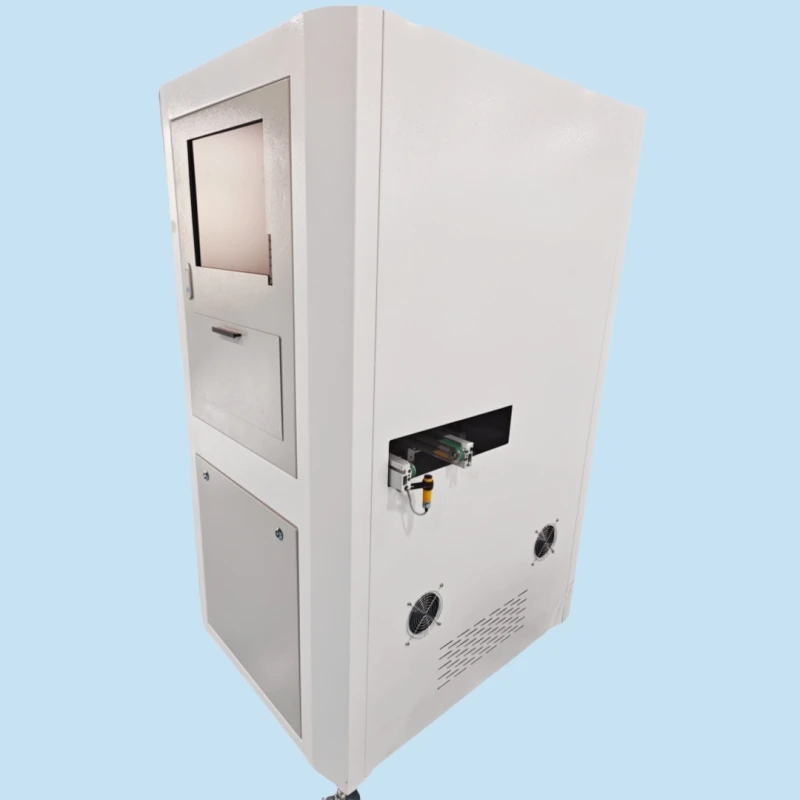

Thumbnail of SMT Turnkey Soltuion Laser Marking for Barcodes and QR Codes VIPin-260A-03 photo 2

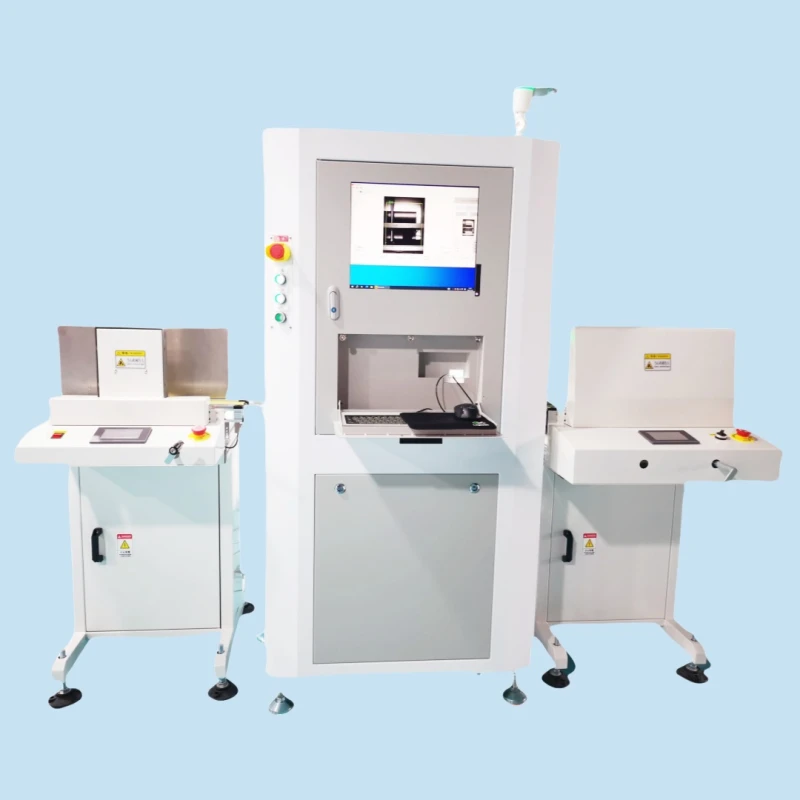

Thumbnail of SMT Turnkey Soltuion Laser Marking for Barcodes and QR Codes VIPin-260A-03 photo 3

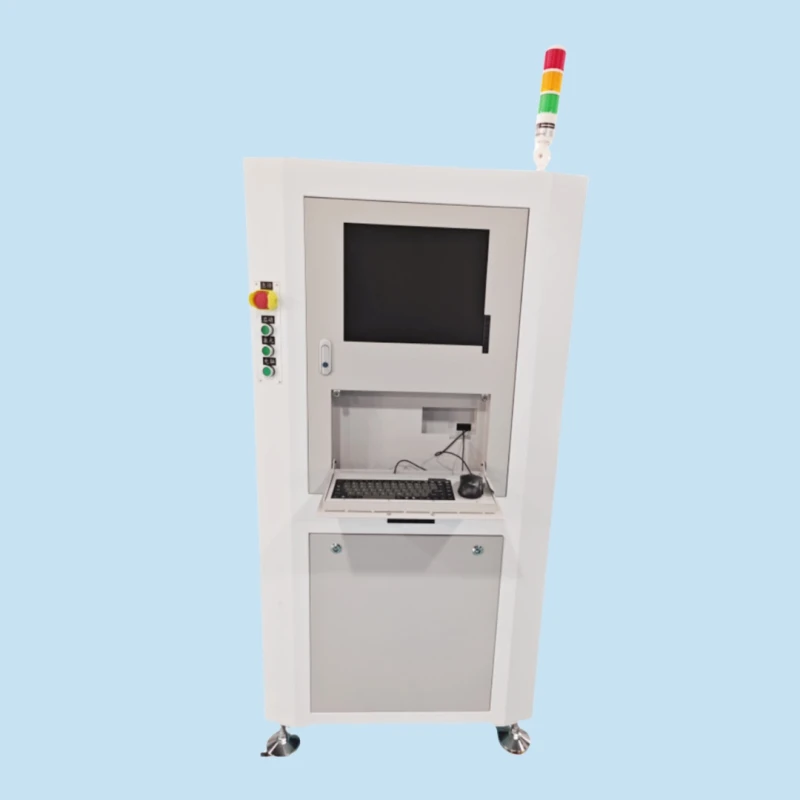

Thumbnail of SMT Turnkey Soltuion Laser Marking for Barcodes and QR Codes VIPin-260A-03 photo 4

Description

The PCB Laser Marking Machine, model VIPin-260A-03 by VESHAY, is a state-of-the-art solution designed for high-precision and efficient laser marking on printed circuit boards. This machine features a fixed laser head, ensuring consistent and accurate marking across various board sizes. It is engineered to meet the demands of modern manufacturing environments, offering a reliable and cost-effective alternative to traditional labeling methods.

One of the standout attributes of the PCB Laser Marking Machine is its ability to deliver high-quality markings without the need for consumables such as paper labels. This not only reduces the overall production costs but also enhances the durability of the markings, which are resistant to wear and environmental factors. The machine's laser marking capability ensures that labels do not drop off or become unreadable over time, providing a permanent solution for product identification and traceability.

Designed for integration into production lines, the machine supports both online and offline models, catering to different manufacturing setups. The online model is ideal for continuous laser marking and can be seamlessly integrated with Manufacturing Execution Systems (MES) for intelligent traceability. The offline model is suitable for boards with components or bare boards, offering flexibility in various production scenarios.

The VIPin-260A is equipped with advanced laser technology, including options for UV and fiber lasers, each with specific power outputs and wavelengths. This versatility allows for precise marking on a wide range of materials and surfaces, including those with different types of oil coatings. The machine's high-speed marking capability, with an average marking time of just 6 seconds per board, ensures high throughput, making it suitable for large-scale production environments.

Overall, the PCB Laser Marking Machine by VESHAY represents a significant advancement in laser marking technology, providing manufacturers with a robust, efficient, and cost-effective solution for PCB labeling and traceability. Its combination of precision, speed, and durability makes it an indispensable tool for modern electronics manufacturing.

SMT Turnkey Soltuion Laser Marking for Barcodes and QR Codes VIPin-260A-03

Visit the Dongguan Veshay Laser Technology Co., Ltd Store

Specifications

Work Area X: 260 mm
Work Area Y: 260 mm
Beam Delivery: Galvo
Laser Source: Fiber
Laser Output Power: 20 W
Laser Wavelength: 1064 nm (IR)
Marking Speed: 3000 mm/sec
Voltage Requirement: 220V - 50Hz
Materials: Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Wood, Textile, Granite, Marble, Nylon, Acrylic, Plexiglass
Air Assist: Included
Fume Extraction Unit: Included
Safety Enclosure: Included
Laser Type: UV/Fiber
Laser Power: 5W/20W
Output Fluctuation Rate: <3%
Laser Wavelength: 355nm/1064nm
Laser Cooling Method: Water Cooling/Air Cooling
Minimum Point Diameter: 0.13mm
Engraving Angle: 0-360°
Repeat Accuracy: ±0.03mm
Transition Speed: 0-3000mm/s
QR Code Size (minimum): 3mm×3mm
Laser Lifespan (UV): ≥15000 hours
Laser Lifespan (Fiber): ≥50000 hours
Laser Spot Size (UV): 0.04mm
Laser Spot Size (Fiber): 0.07mm
Minimum Marking Size: 0.8*0.8mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Fixed Laser Head: Ensures consistent and precise marking on PCBs.
  • High Efficiency: Average marking time of 6 seconds per mark, with a speed of 360 components per hour.
  • Durable Laser Technology: UV Laser with a lifespan of ≥15,000 hours and Fiber Laser with a lifespan of ≥50,000 hours.
  • Precision Marking: Minimum marking size of 0.8mm x 0.8mm with a laser spot size of 0.04mm for UV and 0.07mm for Fiber.
  • Versatile Applications: Suitable for marking QR codes, barcodes, and characters on PCBs with various oil coatings and on reinforcement steel sheets and shielding covers.
  • Cost-Effective: Total label cost for 5 years is ¥1975k, with a total labor cost of ¥540k, making it a cost-efficient solution over time.
  • Flexible Models: Available in both online and offline models, suitable for different production line setups.
  • Advanced Laser Types: Options include American Inno/Shenzhen RFHLaser UV LaserHead and German IPG/MAX Fiber LaserHead.
  • Stable Performance: Output fluctuation of less than 3% ensures reliable marking quality.
  • Comprehensive Marking Content: Supports a wide range of marking content including QR Codes, Data Matrix, and various barcode formats.
  • Optional Configurations: Inline model supports PCB sizes up to 200x200mm, while the offline model supports up to 260x260mm.
  • Efficient Cooling Methods: Water and air cooling options available to maintain optimal laser performance.
  • High Transition Speed: Capable of reaching transition speeds up to 3000mm/s.
  • Engraving Flexibility: Offers engraving angles from 0° to 360° with repeat accuracy of ±0.03mm.

Applications

  • Marking QR Codes and Barcodes: Efficiently mark QR codes, barcodes, and other characters on PCBs with various types of oil coatings such as white, green, black, blue, and red oil.
  • Reinforcement Steel Sheets and Shielding Covers: Suitable for marking on reinforcement steel sheets and shielding covers, ensuring durability and readability.
  • High Precision Marking: Capable of marking with high precision on small areas, such as 60X 2*2mm and 60X 0.8*0.8mm.
  • Durable Markings: Laser markings are permanent and do not disappear, unlike traditional labels that may drop off or break easily.
  • Production Line Integration: Can be integrated into production lines for continuous laser marking and intelligent traceability through MES access.
  • Versatile Models: Available in both online and offline models, suitable for boards with components or bare boards.
  • Optional Configurations: Offers flexibility with optional configurations for different production needs and board sizes. This machine is ideal for manufacturers looking to enhance traceability, reduce consumable costs, and improve the durability of markings on PCBs and related products.

Frequently Asked Questions

What is the laser lifespan of the PCB Laser Marking Machine?
The UV laser has a lifespan of ≥15000 hours, while the fiber laser has a lifespan of ≥50000 hours.
What is the minimum marking size for the laser?
The minimum marking size is 0.8*0.8mm.
What are the applications of the PCB Laser Marking Machine?
It is mainly used to mark QR codes, barcodes, characters, and other information on PCBs with various kinds of oil, as well as on products like reinforcement steel sheets and shielding covers.
What is the average time for each mark using the laser marking machine?
The average time for each mark is 6 seconds.
What is the maximum PCB size for the inline and offline models?
For the inline model, the maximum PCB size is 200x200mm, and for the offline model, it is 260x260mm.
What is the cost for 4 sets of laser marking machines?
The cost for 4 sets of laser marking machines is ¥1.1 million.
What types of lasers are available for the PCB Laser Marking Machine?
The machine can be equipped with either a UV laser (5W) or a fiber laser (20W/30W optional).
