Description

The powerful fiber laser markers in the Y-Series are ideally suited for industrial part marking. They are used in almost all metal and plastic processing industries for precise and efficient direct marking of parts and products: from automotive construction through medical and security technology to electronics.

All kinds of codes (QR codes, DMC / DataMatrix Codes, Barcodes), alphanumeric characters, logos and letterings are marked reliably and highly accurate with fiber lasers.

The vision system which can be optionally integrated in the marking unit, features markings in zero-defect quality and process reliability through automatic optical verification and validation steps. The Marking Field Calibration as well as parameter sets for optimizing marking speed, quality and accuracy allow optimum adaptation to the respective application. The modular construction enables highest flexibility, application-specific configuration and easy integration in production lines and stand-alone systems like FOBA fiber laser marking machines: The Y-Series includes 9 different fiber laser sources, spanning power and pulse width ranges on one modular platform.

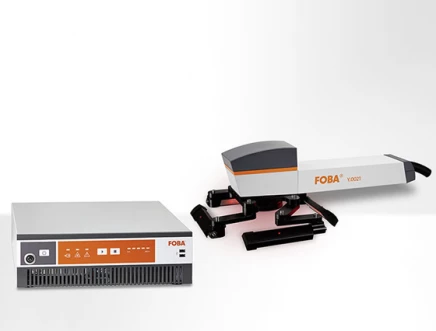

30W Fiber Laser Marker (Y.0300 by ALLTEC)

Specifications

Work Area X: 60 mm
Work Area Y: 76 mm
Beam Delivery: Other
Laser Source: Fiber
Laser Output Power: 30 W
Laser Wavelength: 1064 nm (IR)
Marking Speed: 1000 mm/sec
Voltage Requirement: 110V - 60Hz, 240V - 50Hz
Materials: Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Acrylic, Plexiglass
Air Assist: Included
Fume Extraction Unit: Optional
Safety Enclosure: Not Specified

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

This 30W Fiber Laser Marker is equipped with the following key features:
  • High precision and cost effective production
  • Optimum adaptation to application-specific requirements
  • Flexible, easy integration and configuration
  • Optionally: marking head with integrated vision system

Applications

30W Fiber Laser Marker is a great choice for many applications and industries. The following is a partial list:
  • Electronics industry
  • Automobile and auto parts industry
  • Medical and security technology
  • Machine and tool construction
  • ID and personalization sectors (personalization of cards, IDs and passports)
  • All types of metal markings
  • Production of plastics
  • Markings that are imprinted when the object is stationary or in motion

Frequently Asked Questions

How many different fiber laser sources are included in the Y-Series?
The Y-Series includes 9 different fiber laser sources, spanning power and pulse width ranges on one modular platform.
What applications is the 30W Fiber Laser Marker suitable for?
The 30W Fiber Laser Marker is suitable for many applications and industries, including electronics, automobile and auto parts, medical and security technology, machine and tool construction, and ID and personalization sectors.
What is the vision system that can be optionally integrated in the marking unit?
The vision system that can be optionally integrated in the marking unit features markings in zero-defect quality and process reliability through automatic optical verification and validation steps.
What is the Y-Series Fiber Laser Marker used for?
The Y-Series Fiber Laser Marker is used for precise and efficient direct marking of parts and products in almost all metal and plastic processing industries.
What kind of markings can be made with the Y-Series Fiber Laser Marker?
The Y-Series Fiber Laser Marker can make all kinds of codes (QR codes, DMC / DataMatrix Codes, Barcodes), alphanumeric characters, logos and letterings with high accuracy.

Got more questions? Use the inquiry form to ask the supplier directly.
