Description

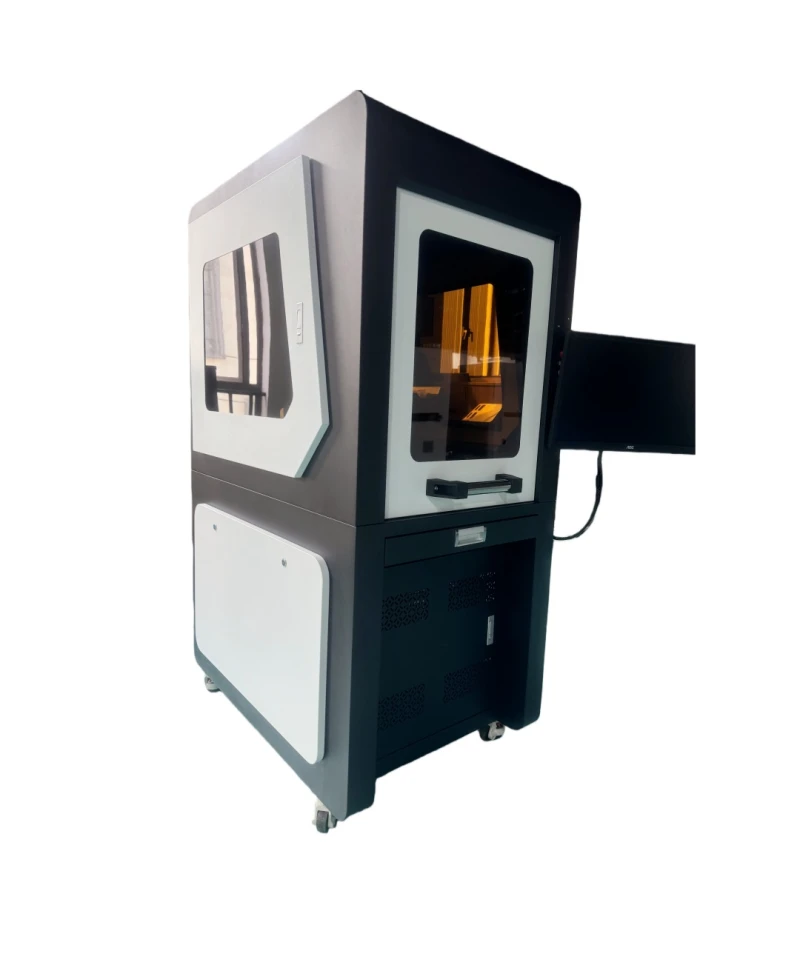

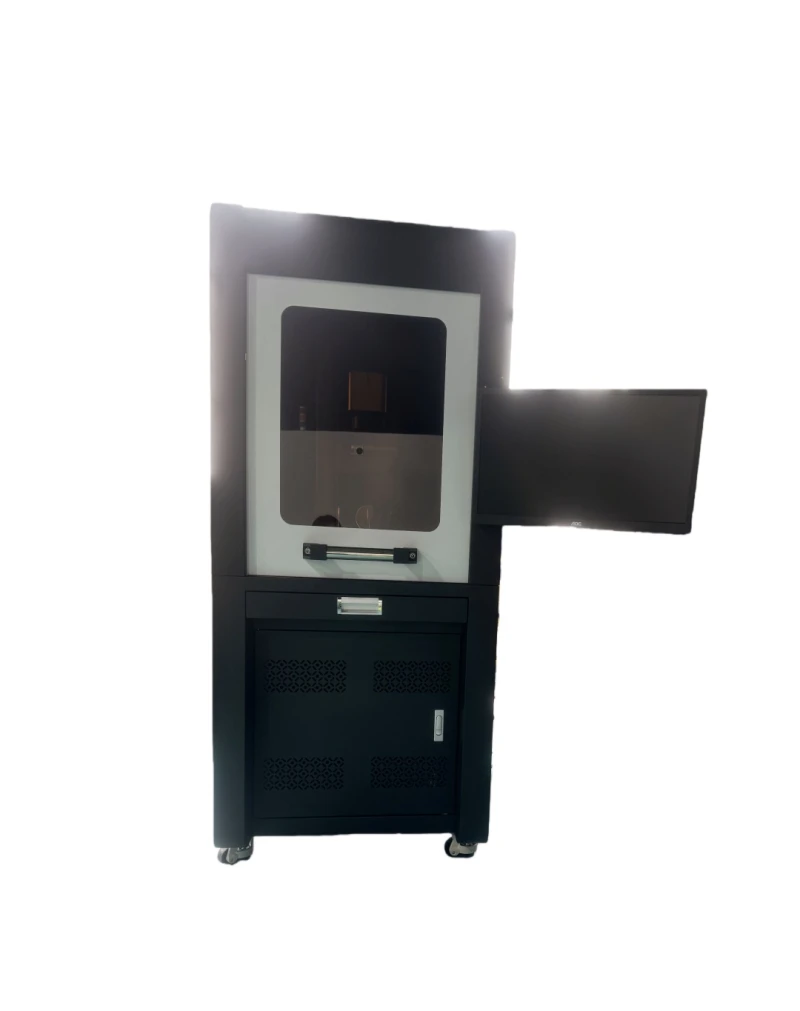

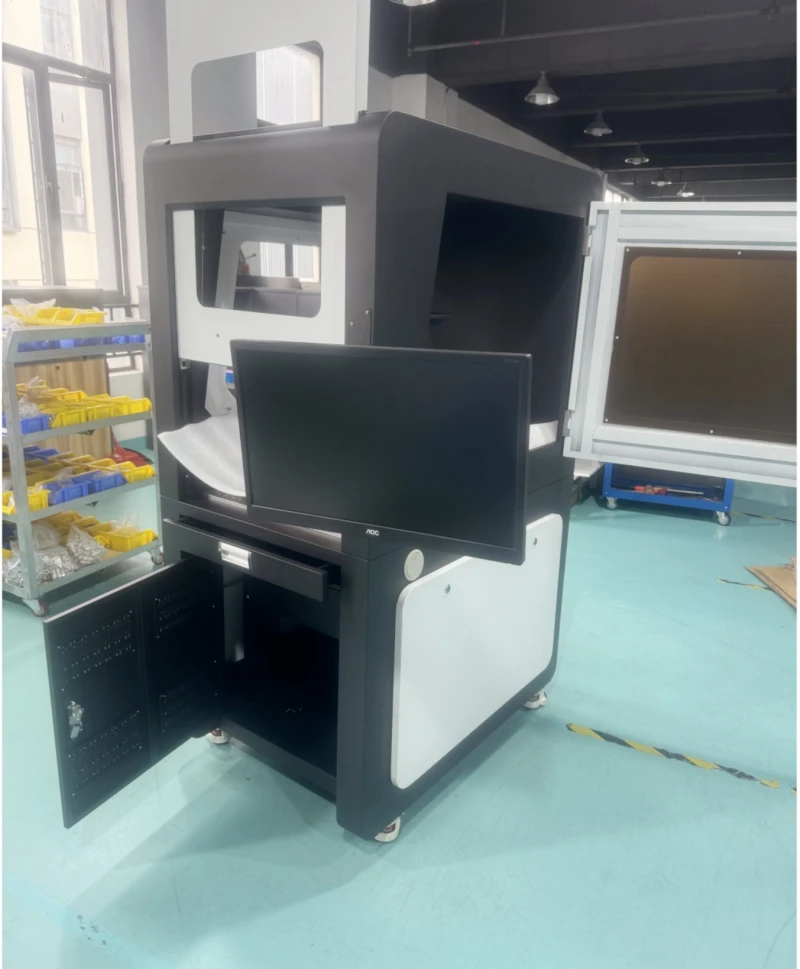

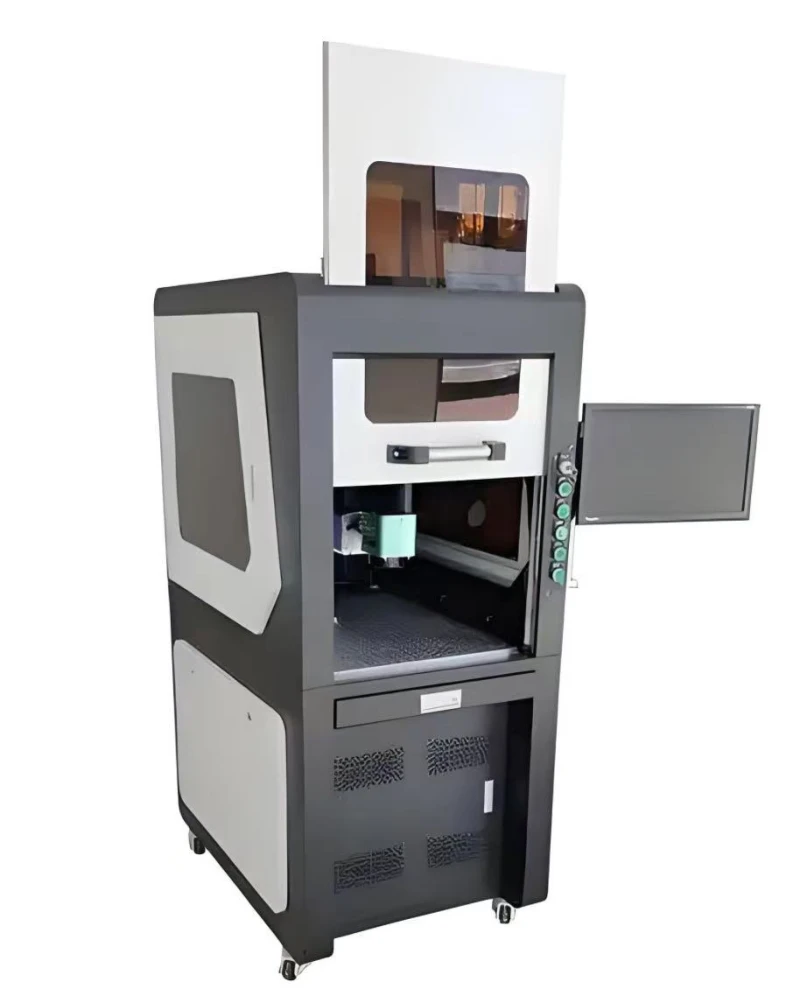

The Customized Laser Marking Machine VIPin-FSD-SC20FB is a state-of-the-art solution designed for precision and efficiency in laser marking applications. This machine is engineered to deliver high-quality results with ease of operation, making it an ideal choice for businesses seeking to enhance their production capabilities. Its robust design and advanced technology ensure that it meets the demands of various industries, providing reliable and consistent performance.
With its dual laser type options, UV and Fiber, the VIPin-FSD-SC20FB offers versatility in marking different materials. The machine's compact yet powerful structure allows for precise marking on a wide range of surfaces, including PCBs and other product surfaces. The manual adjustment of the Z-axis and focus ensures that users can achieve the desired marking depth and clarity, while the optional CCD visual marking positioning enhances accuracy.
Designed with user convenience in mind, this laser marking machine supports customization through software development, allowing businesses to tailor the machine's capabilities to their specific needs. The digital controller for the light source and the JCZ marking card further enhance the machine's functionality, ensuring seamless integration into existing production lines. Additionally, the machine's eco-friendly design eliminates pollution and the need for consumables, making it a sustainable choice for modern manufacturing environments.
CNC Processing Maching Laser Application Service Laser Engraver VIPin-FSD-SC20FB
Specifications
| Work Area X: | 200 mm |
|---|---|
| Work Area Y: | 200 mm |
| Beam Delivery: | Galvo |
| Laser Source: | Fiber |
| Laser Output Power: | 20 W |
| Laser Wavelength: | 1064 nm (IR) |
| Voltage Requirement: | 220V - 50Hz |
| Materials: | Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Wood, Paper, Textile, Granite, Marble, Nylon, Acrylic, Plexiglass, Leather |
| Air Assist: | Included |
| Fume Extraction Unit: | Included |
| Safety Enclosure: | Included |
| Repeating Accuracy: | ±0.03mm（Flat Surface） |
| Weight: | Approx 180KG |
| Machine Size: | 1000mm*1200mm*1700mm |
| Language: | Chinese, English |
| Software: | VIPin Laser System |
| Movement Control: | Unit/servo motor/stepping motor/electric relay |
| Work Table Height: | Customized as required |
| Marking Card: | JCZ Card |
| Light Source Control: | Digital Controller |
| Light Source: | Combo Strip Light/Ring Light |
| Marking Values: | Character, letter, barcode, QR code, Graphic data |
| Style No.: | FSD-SC05UV/20FB |
| Camera Lens: | 12mm |
| Positioning: | CCD Visual Marking Positioning(Optional) |
| Work Mode: | Laser Movable |
| Focus: | Adjust Manually |
| Z Axis: | 0-300mm (Adjust Manually) |
| Marking Range: | 200mm*200mm |
| Field Lens Range: | 100mm*100mm |
| Laser Power: | 5W/20W |
| Laser Type: | UV/Fiber |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Easy to Operate: User-friendly interface for seamless operation.
- Precise Marking: Achieve high accuracy on every marking task.
- Fast Production Line Switching: Save documents and switch production lines quickly.
- Versatile Application: Suitable for marking on PCB and various product surfaces.
- Customizable Software: Supports software development for tailored solutions.
- Eco-Friendly: No pollution and no consumables required.
- Intelligent Alerts: Alarm calls when marking is missed, and processing stops when NG.
- Laser Type: UV/Fiber with power options of 5W/20W.
- Marking Range: Field lens range of 100mm x 100mm and marking range of 200mm x 200mm.
- Manual Adjustments: Z Axis and focus can be adjusted manually.
- Optional CCD Visual Positioning: Enhance precision with optional CCD visual marking positioning.
- High Camera Resolution: 1200W pixel camera with a 12mm lens.
- High Repeating Accuracy: ±0.03mm on flat surfaces.
- Comprehensive Marking Capabilities: Supports characters, letters, barcodes, QR codes, and graphic data.
- Advanced Lighting Control: Combo strip light/ring light with digital controller.
- Customizable Work Table Height: Adjustable to meet specific requirements.
- Robust Movement Control: Unit/servo motor/stepping motor/electric relay for precise control.
- Multilingual Software: VIPin Laser System available in Chinese and English.
- Compact and Sturdy Design: Machine size of 1000mm x 1200mm x 1700mm and weight of approximately 180KG.
Applications
- Electronics Industry: Marking on PCBs, connectors, and electronic components.
- Automotive Industry: Engraving on metal and plastic parts, VIN codes, and labels.
- Medical Devices: Marking on surgical instruments, medical tools, and equipment.
- Jewelry and Fashion: Engraving on jewelry, watches, and fashion accessories.
- Packaging Industry: Marking on packaging materials, labels, and barcodes.
- Tool Manufacturing: Marking on tools, hardware, and industrial equipment.
- Consumer Goods: Marking on household items, appliances, and personal electronics.
- Aerospace Industry: Marking on aircraft components, parts, and tools.
- Promotional Items: Custom engraving on promotional products and gifts.
Frequently Asked Questions
What types of lasers does the VIPin-FSD-SC05UV/20FB use?
What is the laser power of the VIPin-FSD-SC05UV/20FB?
What is the marking range of the machine?
Can the machine be customized for specific software needs?
What is the repeating accuracy of the machine?
What types of markings can the machine perform?
Does the machine support multiple languages?
