Description

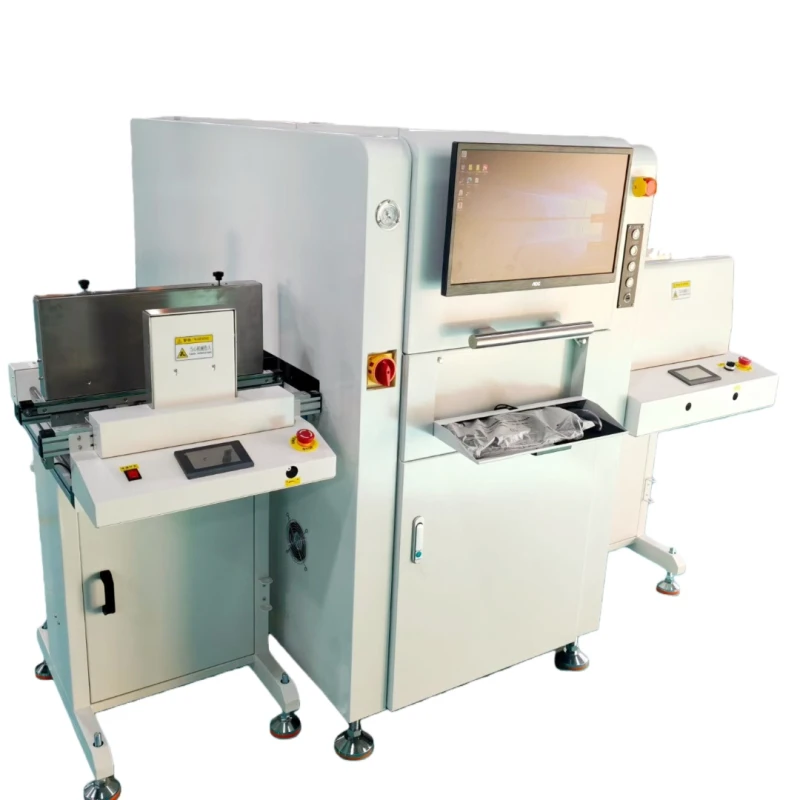

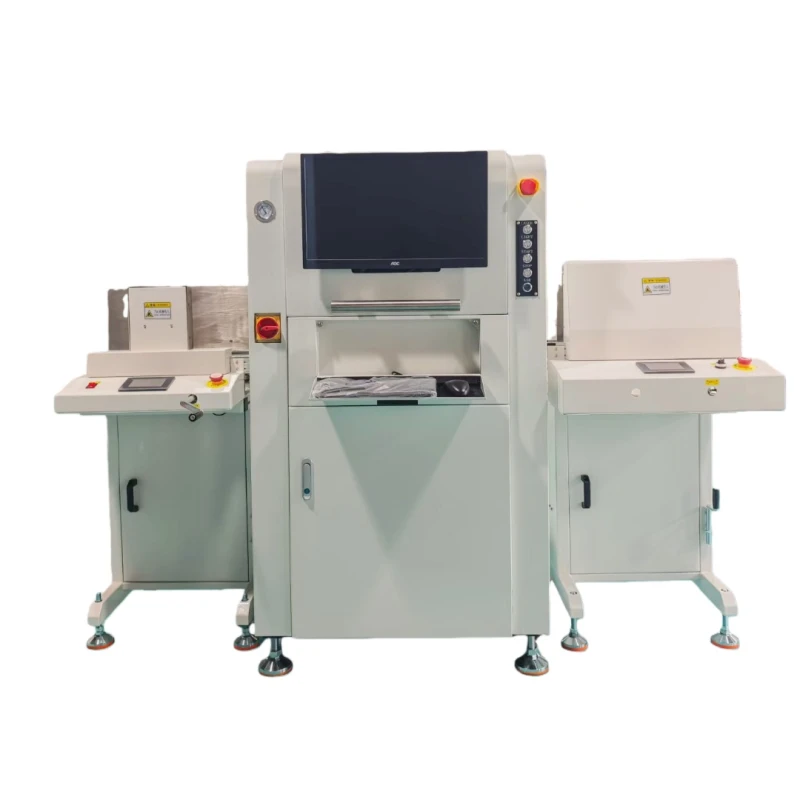

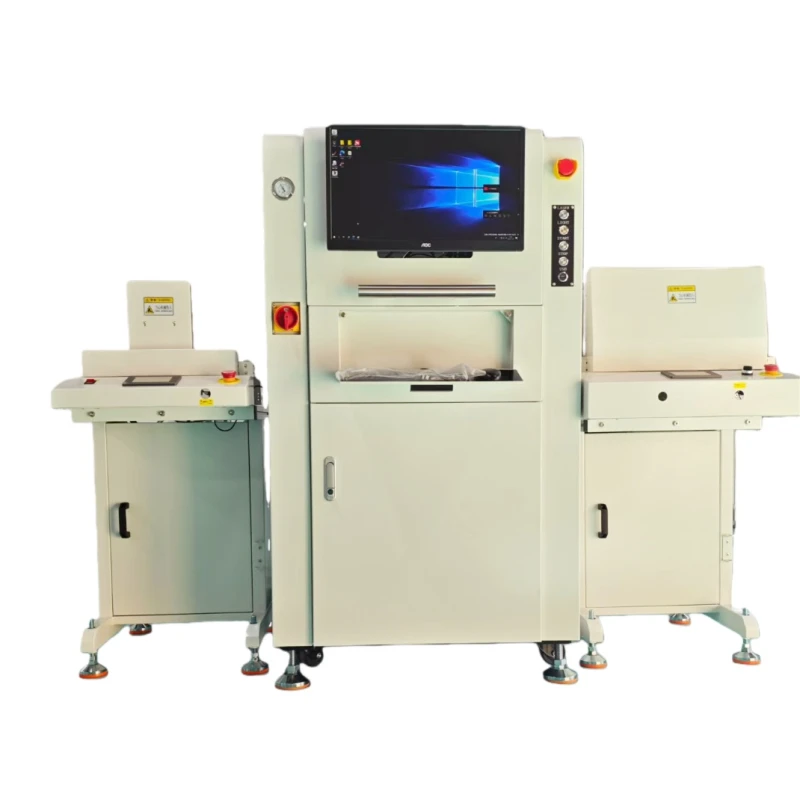

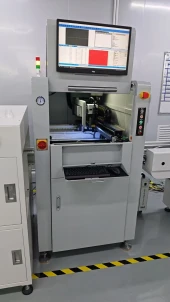

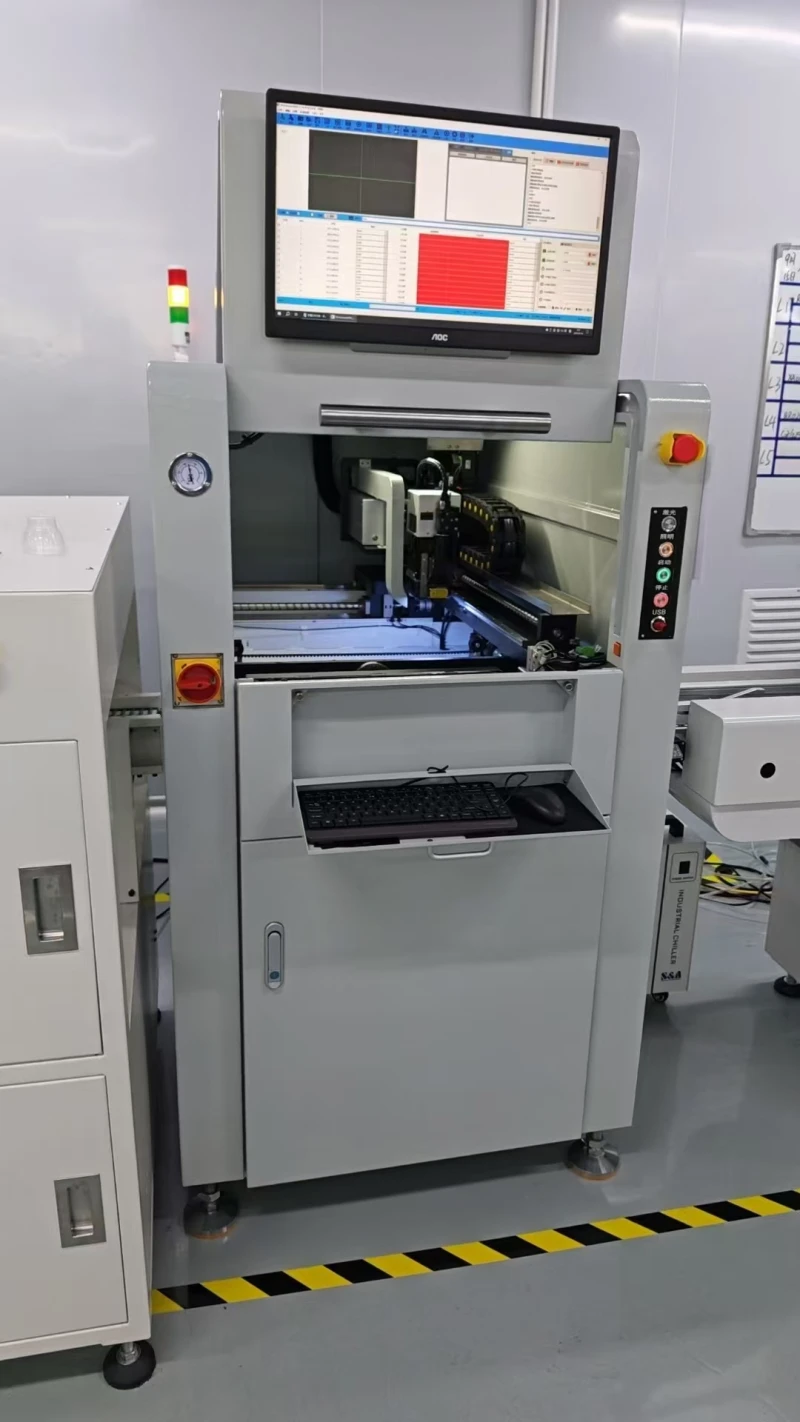

Introducing the VIPIN-4545ATN Automatic PCB Laser Marking Machine from Dongguan Veshay Laser Technology Co., Ltd., a leader in innovative laser technology solutions. This state-of-the-art machine is designed to revolutionize the way circuit boards are marked, offering a cutting-edge alternative to traditional printing methods. With its precision and efficiency, the VIPIN-4545ATN ensures high-quality results without the need for consumables, making it an environmentally friendly choice for modern production lines.
The VIPIN-4545ATN is engineered for excellence, providing unparalleled precision and minimal maintenance requirements. Its advanced laser technology allows for fine, detailed markings that are essential in the production of printed circuit boards (PCBs). This machine is a perfect fit for enterprises looking to enhance their production capabilities while reducing their environmental footprint. By eliminating consumables, it not only cuts down on waste but also reduces operational costs, making it a cost-effective solution for businesses.
Designed with user convenience in mind, the VIPIN-4545ATN integrates seamlessly into existing production lines. It supports various laser configurations, including UV, Fiber, Green, and CO2 lasers, allowing for flexibility in application. The machine's intuitive software and high-speed galvanometer ensure stable performance and high accuracy, making it a reliable asset in any manufacturing environment. Additionally, its compatibility with MES systems and ability to work inline or offline provide versatility and ease of integration, catering to the diverse needs of modern production facilities.
SMT Production Line Solution PCB Double-head Laser Marking Equipment Flipper Options
Specifications
| Work Area X: | 450 mm |
|---|---|
| Work Area Y: | 450 mm |
| Beam Delivery: | Galvo |
| Laser Source: | CO2, Fiber, DPSS (Nd:YAG) |
| Laser Output Power: | 10 W |
| Laser Wavelength: | 10.6 um (IR) |
| Marking Speed: | 7000 mm/sec |
| Voltage Requirement: | 220V - 50Hz |
| Materials: | Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Nylon, Acrylic, Plexiglass |
| Air Assist: | Included |
| Fume Extraction Unit: | Included |
| Safety Enclosure: | Included |
| Laser Type: | CO2 Synrad 10W (Optional: UV, Green & Fiber Laser) |
| Laser Wave Length: | 10640nm |
| Laser Power: | 10W |
| Marking Area: | 450mm×450mm |
| Marking Speed: | Max: 7000mm/s |
| Marking Position Accuracy: | ±0.05mm (Optional) |
| Repeatability: | ±0.02mm |
| Applicable PCB Size: | 50mm×50mm-450mm×450mm |
| PCB Thickness: | 0.5mm-3mm (Optional) |
| Upper Surface Height: | <25mm (Optional) |
| PCB Lower Surface Height: | <25mm |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Supports Multiple Laser Types: Compatible with UV, Fiber, Green, and CO2 lasers, providing flexibility for various applications.
- Advanced Code Recognition: Features CCD automatic code reading and optional QR code grade recognition for enhanced accuracy.
- User-Friendly Software: Includes a circuit board puzzle function with simple and easy-to-use software for efficient operation.
- High-Speed Performance: Equipped with a high-speed galvanometer ensuring high accuracy and stable performance.
- Versatile Integration: Can be used inline or offline and is capable of linking with MES systems for streamlined production processes.
- Production Line Compatibility: Easily integrates with loaders and unloaders or directly into SMT production lines as required.
- Permission Management: Offers administrator, technician, and operator permissions for secure and controlled access.
- Durable Laser Configuration: Optional configurations include UV, Fiber, Green, and CO2 lasers with a lifespan of over 20,000 hours.
- Precision Marking: Features a spot diameter of 0.13mm and a minimum QR size of 3.0x3.0mm for detailed and precise marking.
- Wide Application Range: Suitable for PCB sizes ranging from 50mm×50mm to 450mm×450mm with thicknesses from 0.5mm to 3mm.
- High-Speed Marking: Achieves a maximum marking speed of 7000mm/s with a marking area of 450mm×450mm.
- Accurate Positioning: Offers marking position accuracy of ±0.05mm and repeatability of ±0.02mm for consistent results.
Applications
- Electronics Manufacturing: Ideal for marking PCBs in electronics manufacturing, ensuring precise and permanent identification.
- Quality Control: Enhances traceability and quality control by marking QR codes and other identifiers on circuit boards.
- Automotive Industry: Used for marking electronic components in automotive applications, ensuring compliance with industry standards.
- Medical Devices: Suitable for marking medical device components, providing clear and durable markings for regulatory compliance.
- Telecommunications: Marks components used in telecommunications equipment, aiding in inventory management and component tracking.
- Consumer Electronics: Used in the production of consumer electronics for marking components with logos, serial numbers, and other identifiers.
- Research and Development: Useful in R&D settings for prototyping and testing, allowing for quick and accurate marking of test components.
Frequently Asked Questions
What is the primary use of the VIPIN-4545ATN PCB Laser Marking Machine?
What types of lasers does the VIPIN-4545ATN support?
What is the marking speed of the VIPIN-4545ATN?
What is the marking area of the VIPIN-4545ATN?
Can the VIPIN-4545ATN be integrated into an SMT production line?
What is the lifespan of the CO2 laser used in the VIPIN-4545ATN?
What is the minimum QR code size that the VIPIN-4545ATN can mark?
