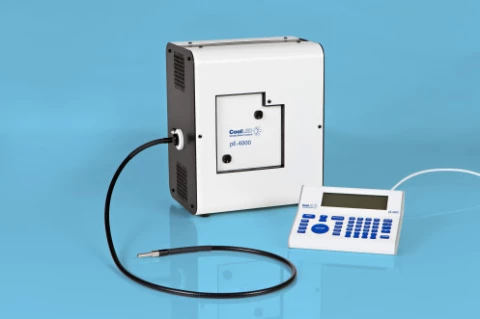

pE-4000 Flexible 4-Channel Microscopy Illumination System

Specifications

Emission Spectral Range: 365 – 770 nm
Application: Microscopy
Channels: 4
Selectable Wavelengths: 16
Standby Power Consumption: Max 7 W
Single Wavelength Power Consumption: Max 25 W
Dual Wavelength Power Consumption: Max 44 W
Triple Wavelength Power Consumption: Max 53 W
Quad Wavelength Power Consumption: Max 60 W
Wavelength Combinations: 256
Document icon Download Data Sheet Download icon

Features


  • Flexible Microscopy Illumination: The pE-4000 offers optimal illumination control to extend fluorescence of cells, reduce photobleaching, and minimize phototoxicity. It features microsecond switching and variable pulse duration for precise control.

  • Cell Viability: Experience the lowest power consumption compared to other LED technologies, with a long lifetime and highly stable, repeatable award-winning single chip LED technology. Benefit from market-leading energy efficiency.

  • Sustainability: Choose from 256 wavelength combinations from 16 installed LEDs (365 nm-770 nm). Select 1 of 4 wavelengths for each of 4 channels on the control pod, utilizing a unique wavelength grouping concept for optimal experiment conditions.

  • Selectability: The pE-4000 allows for multiple experiments with varying wavelengths on the same sample, providing specific wavelength characterization for optimal optogenetic control of cell responses.

  • Adaptability: Fits all major research and clinical microscopes, delivering light through a liquid light guide or fiber. It offers inline removable excitation filter holders and uses the Universal Collimator.

  • Reliability: Benefit from a 3-year warranty with a first-year warranty swap, backed by experience and QA assured processes.

  • Controllability: Advanced integration into major systems allows for precise control over individual channels, optimizing excitation intensity to reduce photobleaching and phototoxicity in live experiments.

Applications


  • Live-Cell Imaging: Minimize phototoxicity for extended experiments up to 100+ hours.

  • Optogenetics: Precise control of excitation wavelengths for optogenetic manipulation of cellular responses.

  • Fluorescence Microscopy: Supports multiple fluorophores, including DAPI, FITC, TRITC, and Cy5.

  • Multi-Experiment Flexibility: Allows varying wavelength experiments on the same sample.

  • Microscope Integration: Compatible with MetaMorph, MicroManager, NIS Elements, Zen, LAS X, cellSens, ImagePro.
