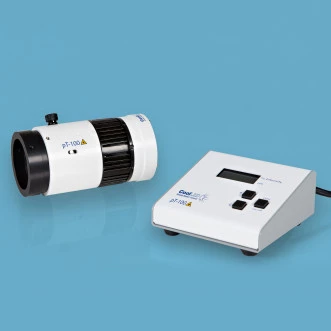

pT-100 LED Illumination System for Microscopy
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2020
Description
Discover the future of transmitted light applications with the pT-100 LED solution from CoolLED. Designed to revolutionize brightfield, darkfield, DIC, phase contrast, and more, the pT-100 series offers unparalleled illumination for your microscopy needs. With four distinct variants, including a broad white output and three narrower bandwidths, this LED system is engineered to deliver exceptional performance and reliability.
The pT-100-WHT is a powerful white LED illumination system crafted to replace traditional 100 W halogen lamps. Ideal for histologists and cytologists, this system ensures accurate and reliable diagnoses by maintaining consistent color appearances akin to conventional halogen lamps. Unlike halogen lamps, the pT-100-WHT's color balance remains stable regardless of intensity, eliminating the need for adjustments. Available with direct fit or liquid light guide delivery, this variant is designed to seamlessly integrate into your workflow.
For those seeking specialized illumination, the pT-100-525 offers phosphor-free light centered around 525 nm, optimized for the spectral response of most scientific cameras. This allows seamless switching between brightfield and fluorescence imaging without background interference. The pT-100-635 variant provides a peak of 635 nm, offering deeper penetration ideal for thicker samples and reducing the risk of stimulating light-sensitive specimens. Lastly, the pT-100-770 is tailored for IR contrast techniques, delivering optimal output for deeper sample penetration with infrared light, enhancing detail in thicker samples.

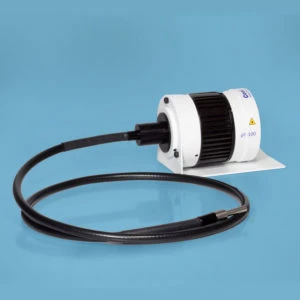

The pT-100 series offers both manual and remote control options for ultimate flexibility. Manual control allows for instant on/off and intensity adjustments in 1% increments from 0-100%. For remote operation, a single TTL for on/off control is available via a BNC connection, with a triggering speed of less than 150 μs. The system is designed for direct fit via adaptors compatible with all major microscopes, with a liquid light guide delivery option available for the WHT and 770 nm variants.
Operating efficiently, the pT-100 requires 100-240 V a.c., 50/60 Hz, and consumes only 1 W in standby and 20 W at full intensity. The light source measures 66 mm in diameter and 128 mm in length, weighing just 0.42 kg, making it a compact and lightweight addition to any laboratory setup.
pT-100 LED Illumination System for Microscopy
Specifications |
|
|---|---|
| Emission Spectral Range: | 350 – 800 nm |
| Application: | Microscopy |
| Colour Rendering Index (CRI-Ra): | >90 |
| Correlated Colour Temperature (CCT): | ~ 3000 K |
| Peak Wavelength PT-100-525: | 525 nm |
| Peak Wavelength PT-100-635: | 635 nm |
| Peak Wavelength PT-100-770: | 770 nm |
| Manual Control Intensity Steps: | 1 % steps from 0-100 % |
| Triggering Speed: | <150 μs |
| Power Requirements: | 100-240 V a.c. 50/60 Hz, 0.7A |
| Power Consumption (Standby): | 1 W |
| Power Consumption (Full Intensity): | 20 W |
| Light Source Dimensions: | 66 mm (diameter) x 128 mm (l) |
| Weight: | 0.42 kg |
Features
- High Color Fidelity: pT-100-WHT matches 100 W halogen lamp output, CRI >90, CCT ~3000 K.
- Narrowband Precision: 525 nm, 635 nm, and 770 nm variants for optimal imaging contrast and minimal fluorescence background.
- Flexible Control: Manual 0–100% intensity adjustment or remote TTL triggering (<150 μs).
- Versatile Light Delivery: Direct-fit or liquid light guide options for WHT and 770 nm variants.
- Energy Efficient & Sustainable: Low power consumption, mercury- and laser-free, long LED lifetime.
- Compact Design: Lightweight light source, control pod, and power supply for easy integration.
Applications
- Brightfield Applications: The pT-100 is ideal for brightfield imaging, providing consistent and reliable illumination.
- Darkfield Applications: Suitable for darkfield microscopy, offering enhanced contrast and detail.
- DIC (Differential Interference Contrast): The pT-100-770 variant is optimized for DIC techniques, providing deeper penetration with infrared light.
- Phase Contrast: The pT-100 provides excellent illumination for phase contrast microscopy, ensuring clear and detailed images.
- Fluorescence Imaging: The pT-100-525 variant is designed for fluorescence imaging, minimizing background interference.
- Histology and Cytology: The pT-100-WHT variant is perfect for histologists and cytologists, offering color consistency similar to a 100 W halogen lamp.
- Infrared Contrast Techniques: The pT-100-770 variant supports IR contrast techniques, providing greater detail in thicker samples.
Frequently Asked Questions
There are four variants of the pT-100 available.
The pT-100-WHT provides comfortable operation and reduced risk of eye damage as no unwanted UV, spectral performance matched to 100 W halogen, creating consistent images, no variation in colour across irradiance range, removing the need to colour balance, and replaces 100 W halogen lamp housing on most current and older microscopes – quick & easy exchange.
The CoolLED pT-100 is a compact and simple-to-use LED illumination system for transmitted light applications, including brightfield, darkfield, DIC, Dodt gradient contrast and phase contrast.
The pT-100-525 provides phosphor-free illumination centred around 525 nm, a bandwidth which is optimised for the spectral response of most scientific cameras. This allows switching between standard brightfield and fluorescence imaging without the fear of background from a phosphored LED.
The pT-100-770 is a specialised solution for IR contrast techniques such as DIC, Dodt contrast etc. Centred around 770 nm provides the optimal output for deeper sample penetration techniques requiring infrared light.
